695XL SERVICE MANUAL
17. BOTTOM GUARD/FRONT HANDLE
17.2

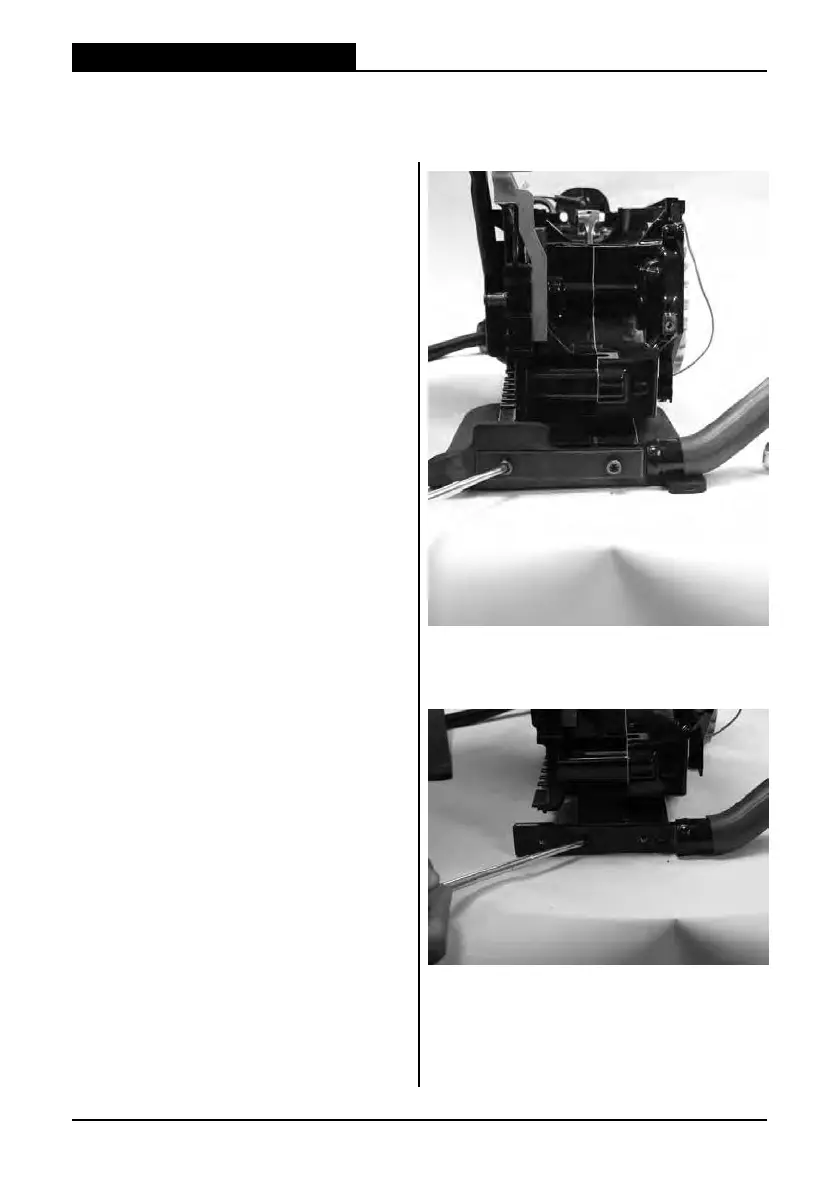

Remove (2) screws from lower front
handle (P/N 544009).
17.1
Remove (2) screws (P/N 544012) and
guard ap backing plate (P/N 544011).
Inspect guard ap for damage (P/N
544010) replace if damaged.
Reassemble in reverse order using
Loctite
®
242.
17. This section covers the removal, inspection and installation of the
bottom guard and front handle.
