695XL SERVICE MANUAL
16.16
Install the inlet boot clamp, ange
bracket, ange and shock absorber
screw before cylinder installation.
A.) Lubricate the cylinder bore with ICS
®
2-stroke oil.
B.) Compress the rings with compression
tool (P/N 71543).
C.) Slide cylinder onto piston, pushing
ring tool down.
D.) Remove ring compressor.
E.) Slide cylinder onto piston and into
the crankcase.
F.) Align cylinder bolt holes with
crankcase. Align cylinder screw with
holes on gasket & crankcase.
16.17
Install (4) cylinder screws using
Loctite
®
242. Torque to 132-156 in-lbs
(15 - 18 Nm).
16. CYLINDER & PISTON

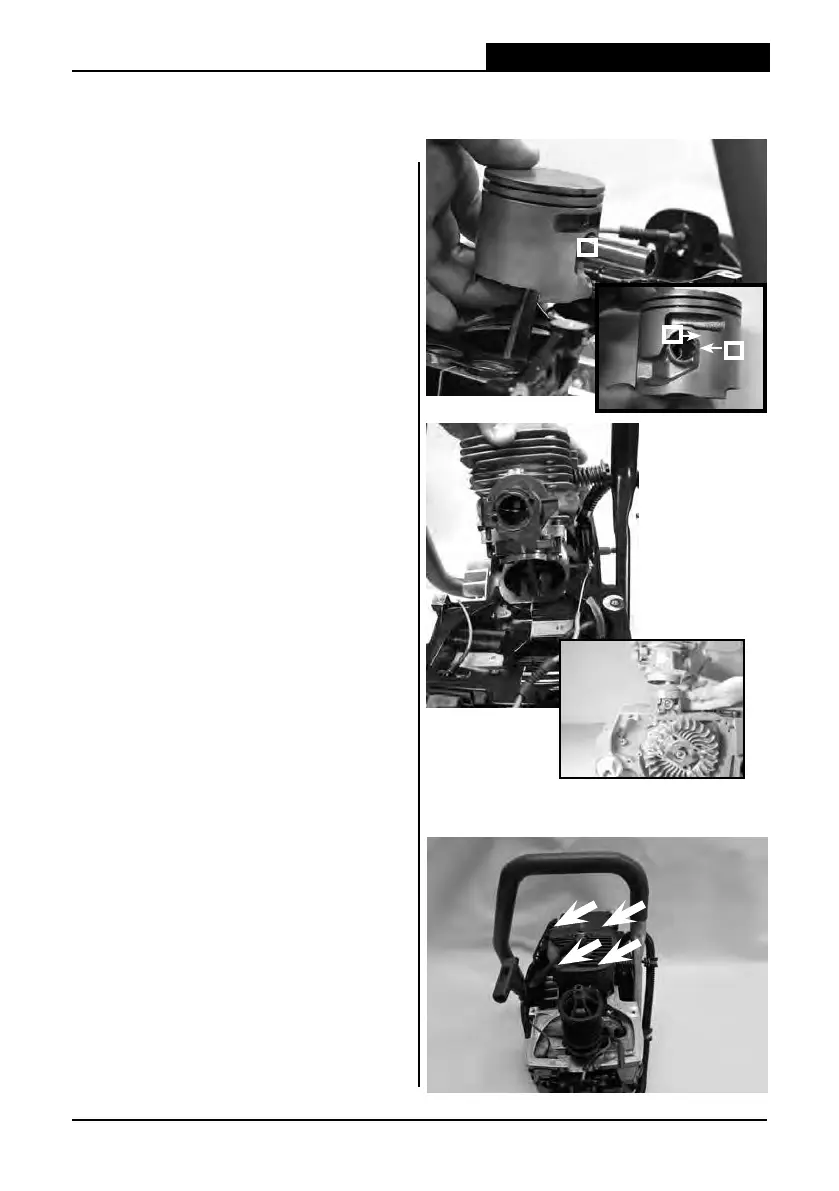

16.15
Install piston.
A.) Align wrist pin with wrist pin
needle bearing.
B.) Complete wrist pin installation.
C.) Install second wrist pin clip (note the
orientation of the pin clips).
D.) Coat piston with ICS
®
2-stroke oil.
A
C
B
