©2017 ICS - Blount Inc, Specications subject to change without notice. REV19JUNE2017 P/N 598901
43
695XL SERVICE MANUAL
16. This section covers the removal, inspection and assembly of the cyl-
inder, piston and related components. Refer to section 5 & 10 if necessary
16.1

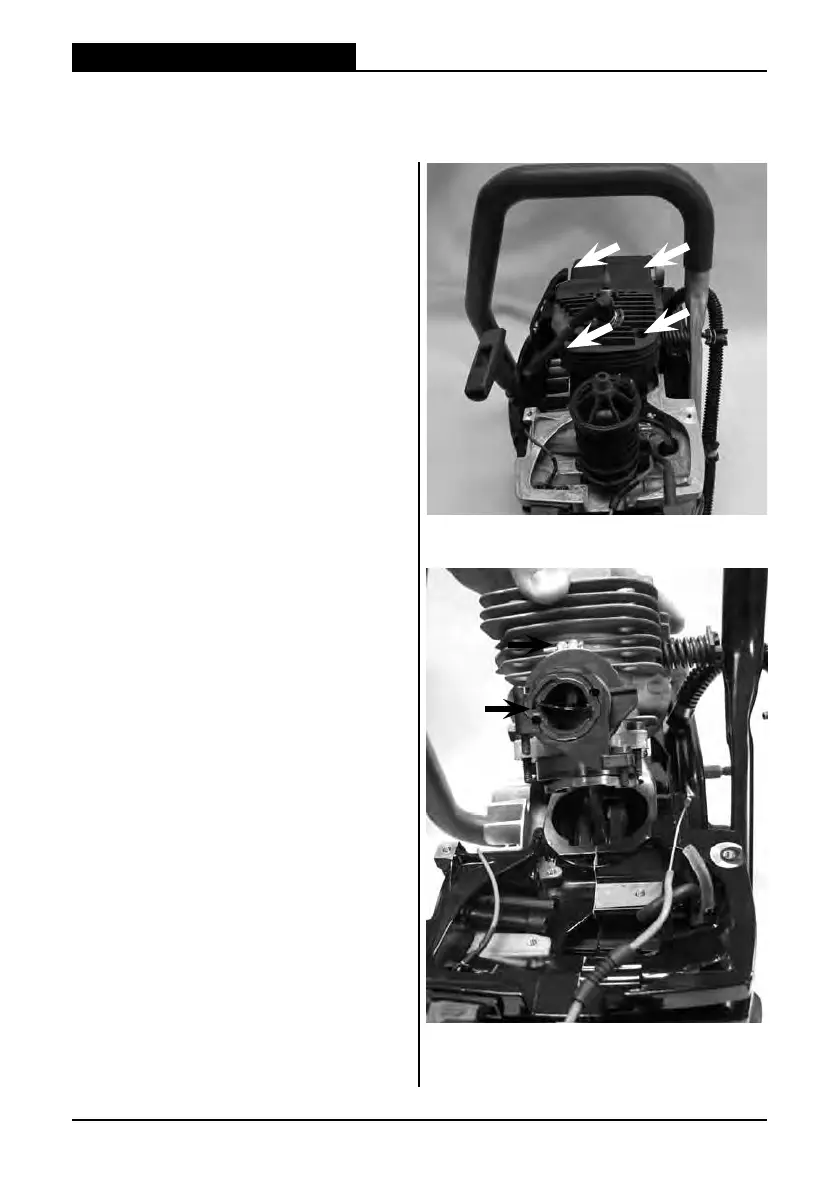

Remove outer shock absorber screw (set
aside for reassembly) (P/N 543981).
Loosen (4) cylinder screws(P/N 543942).
16.2
Remove cylinder from piston.
Remove shock absorber screw (see
section 16.1).
Remove inlet boot and clamp. Set aside
shock absorber, boot & clamp for
reassembly later (see section 10.9).
16. CYLINDER & PISTON
15. This section covers water hose and water tank cap.
CLAMP
BOOT
