695XL SERVICE MANUAL

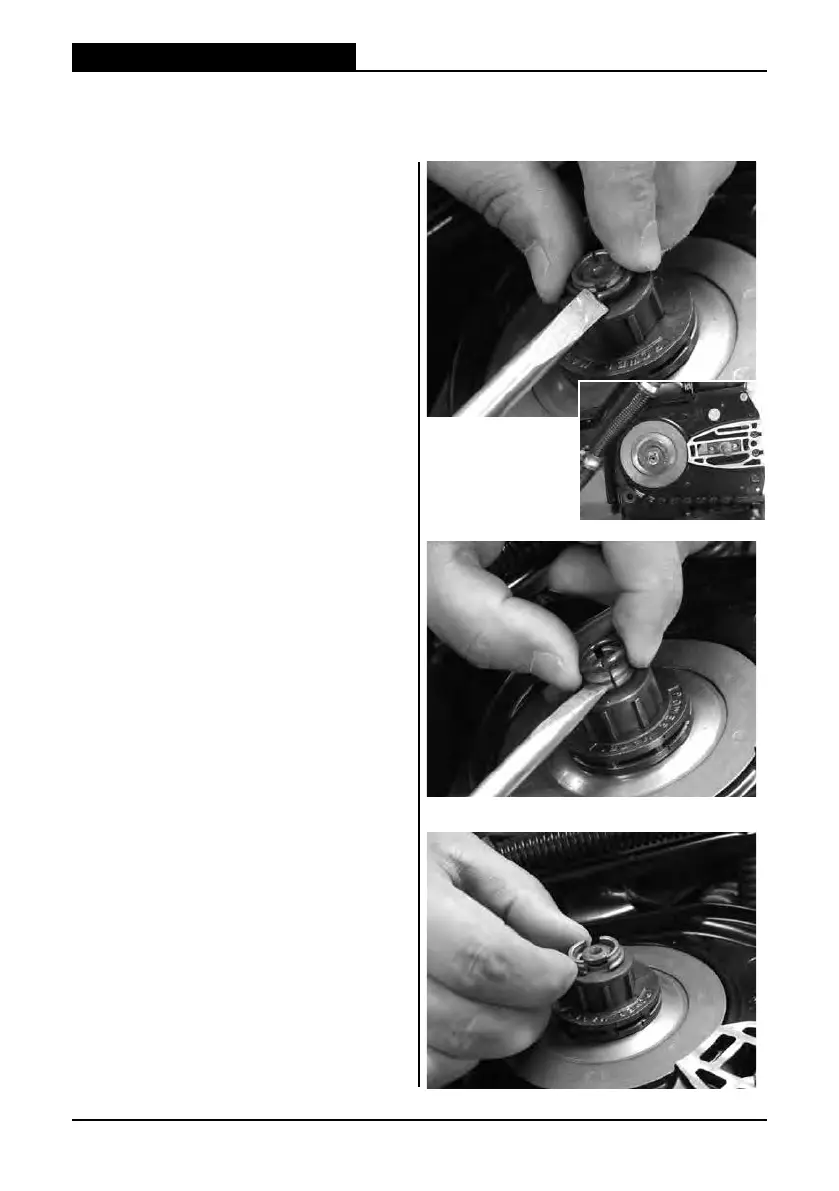

8. This section covers clutch removal, rim sprocket removal, inspection
and assembly. Refer to sections 5 and 6 if necessary.
Rim sprocket removal procedure.
8.1
Using at head screwdriver, remove
retaining ring.
* Use caution when removing retaining
ring to prevent damage to the split
retainer or crankshaft.
8.2
Remove the split retainer and spacer.
8. CLUTCH & RIM SPROCKET
