695XL SERVICE MANUAL
8.3

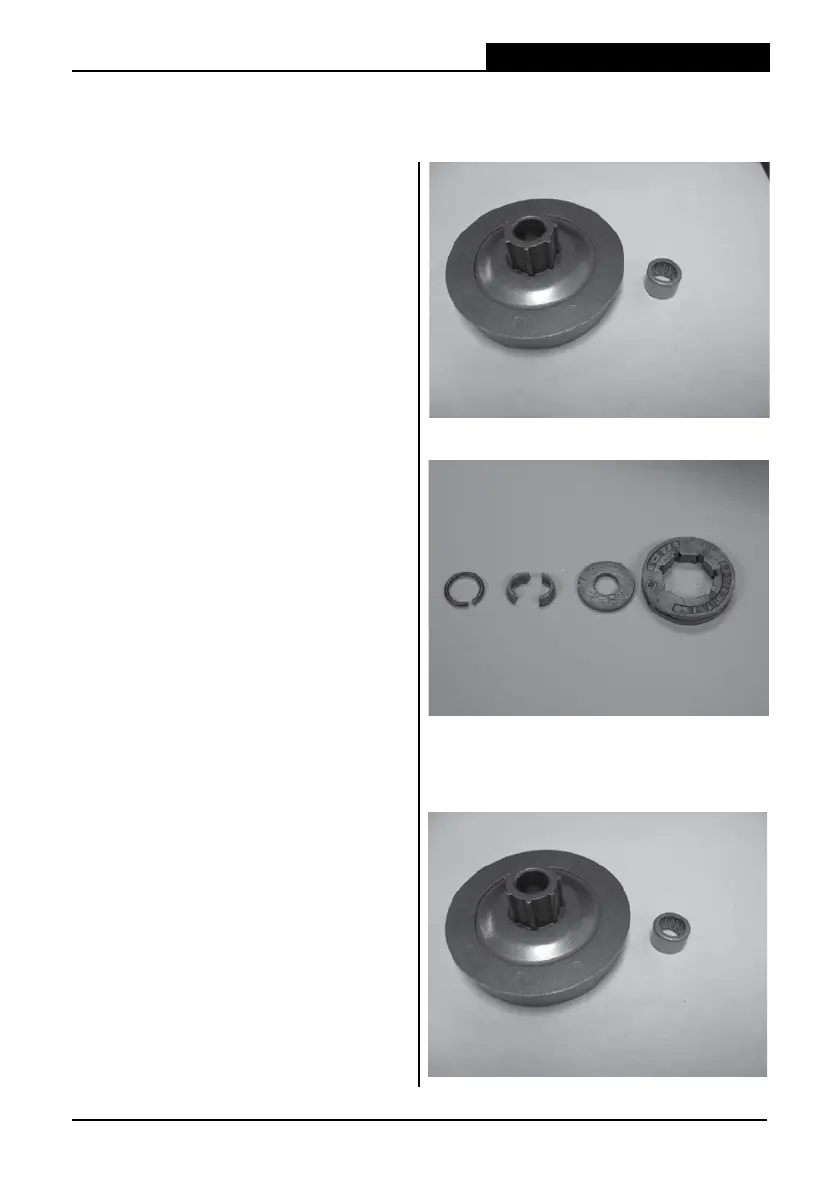

Inspect rim sprocket and replace if
necessary (P/N 70949).
• Replace if the rim sprocket teeth are
worn to points as shown on right.
8.4
Rim sprocket assembly.
• Assemble in reverse order.
8.5
Remove clutch cup and needle bearing.
• Apply grease to needle bearing prior to
reinstalling.
8. CLUTCH & RIM SPROCKET
