ICS 695XL Service Manual

©2017 ICS - Blount Inc, Specications subject to change without notice. REV19JUNE2017 P/N 598901
33
695XL SERVICE MANUAL

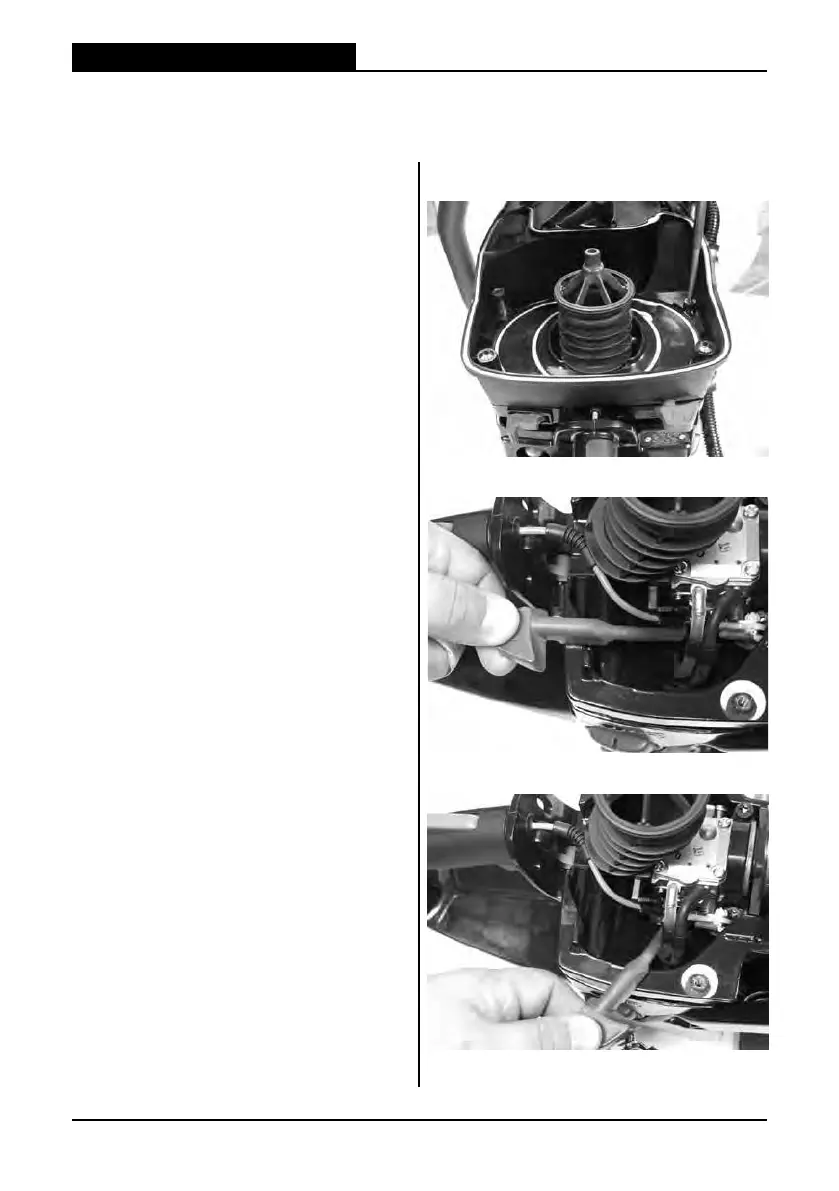

10. This section covers the removal & replacement of the carburetor &
cylinder cover. Removal of air intake components and front handle is
required. Refer to sections 5 & 15 if necessary.
10.1
Remove air lter cover and air lter.
Refer to section 5.
Remove (2) screws (P/N 544065).
Lift cylinder cover o from the front of
the cover.
Install in reverse order using Loctite
®
242
10.2
Carburetor Removal.
Remove choke lever (P/N 544117).
10.3
Lift up choke lever and rotate 90 degrees
then pull out from carburetor.
Install in reverse order.
10. CARBURETOR REMOVAL
