©2017 ICS - Blount Inc, Specications subject to change without notice. REV19JUNE2017 P/N 598901
32
695XL SERVICE MANUAL

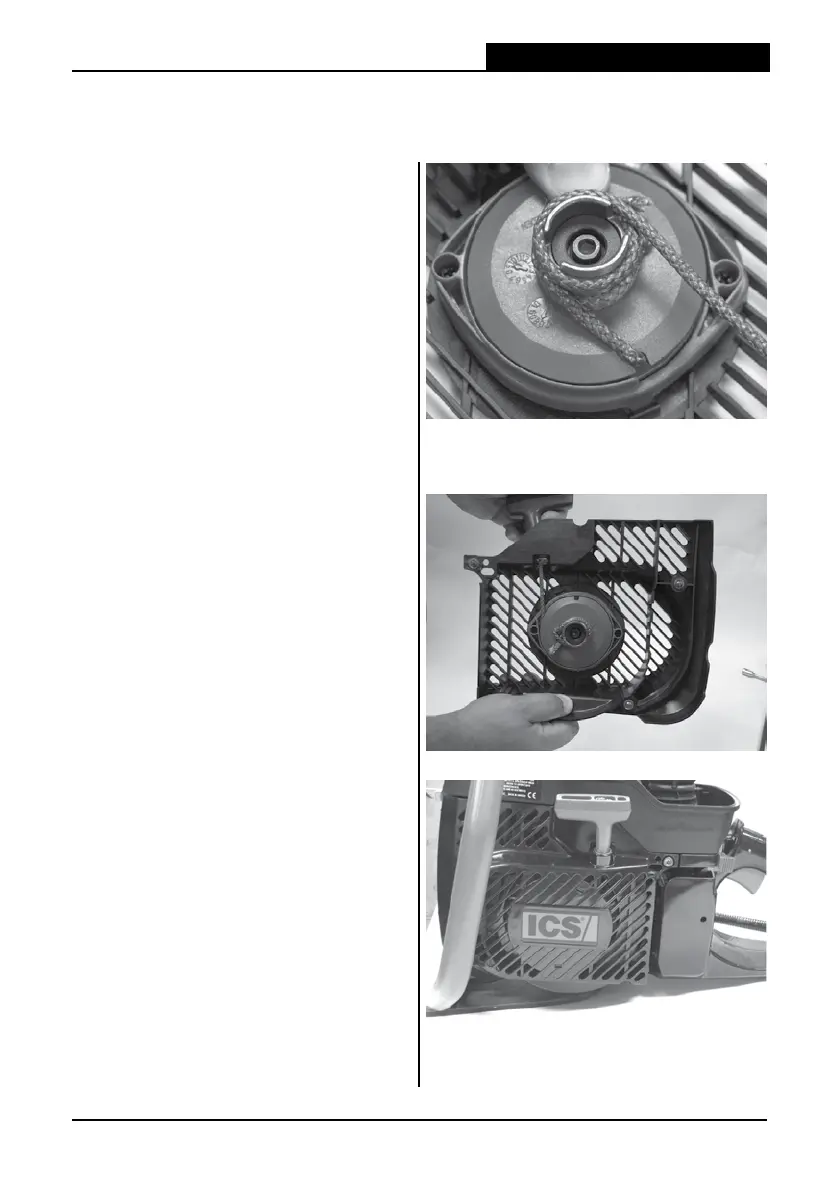

9. STARTER
9.15
Install starter cover.
• Pull starter rope to engage starter
pawls and seat cover.
• Tighten side cover screws.
9.14
• Rope must fully retract into starter
cover.
9.13
Insert the rope into the pulley notch.
• Wind rope clockwise around pulley
shaft 3 - 4 times. Then pull starter rope
handle.
• Repeat as necessary to ensure proper
spring tension.
• Ensure with starter rope fully extended
the pulley can still be rotated an
additional 1/2-turn before being stopped
by the spring.
