695XL SERVICE MANUAL

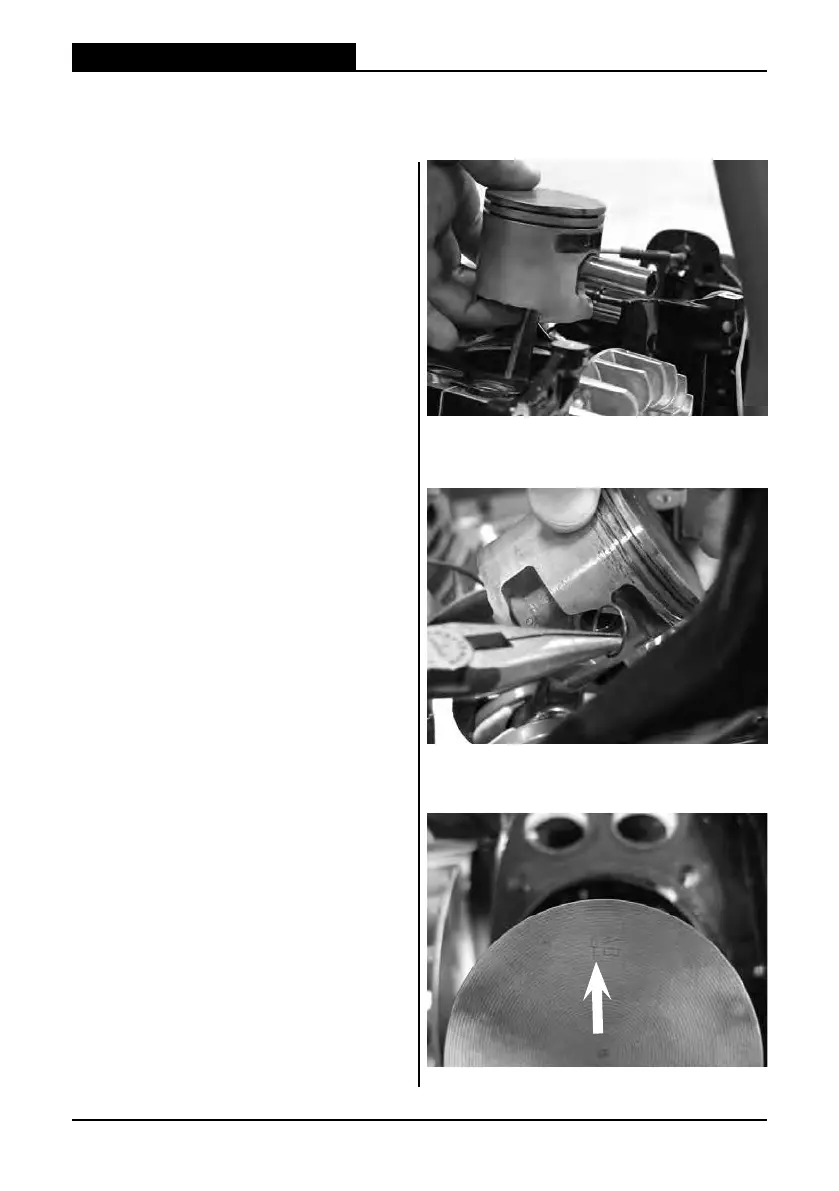

16.12
Lubricate wrist pin with ICS
®
2-stroke oil
and partially install in the piston.
16.13
Install wrist pin clip into opposite side of
the piston.
Make sure wrist pin clip is in the proper
orientation.
See 16.15
16.14
Align the piston in correct orientation.
Arrow on top of the piston points towards
the muer/exhaust port.
16. CYLINDER & PISTON
