©2017 ICS - Blount Inc, Specications subject to change without notice. REV19JUNE2017 P/N 598901
46
695XL SERVICE MANUAL
16.10
Lubricate crankcase gasket mating
surface with ICS
®
2-stroke oil.
Install cylinder base gasket.
16.11
Lubricate needle roller with ICS
®
2-stroke
oil. Insert into the connecting rod.
16.9
Note ring orientation.
*If rings are installed upside down or
incorrectly, ring will not seat properly and
piston damage will occur.

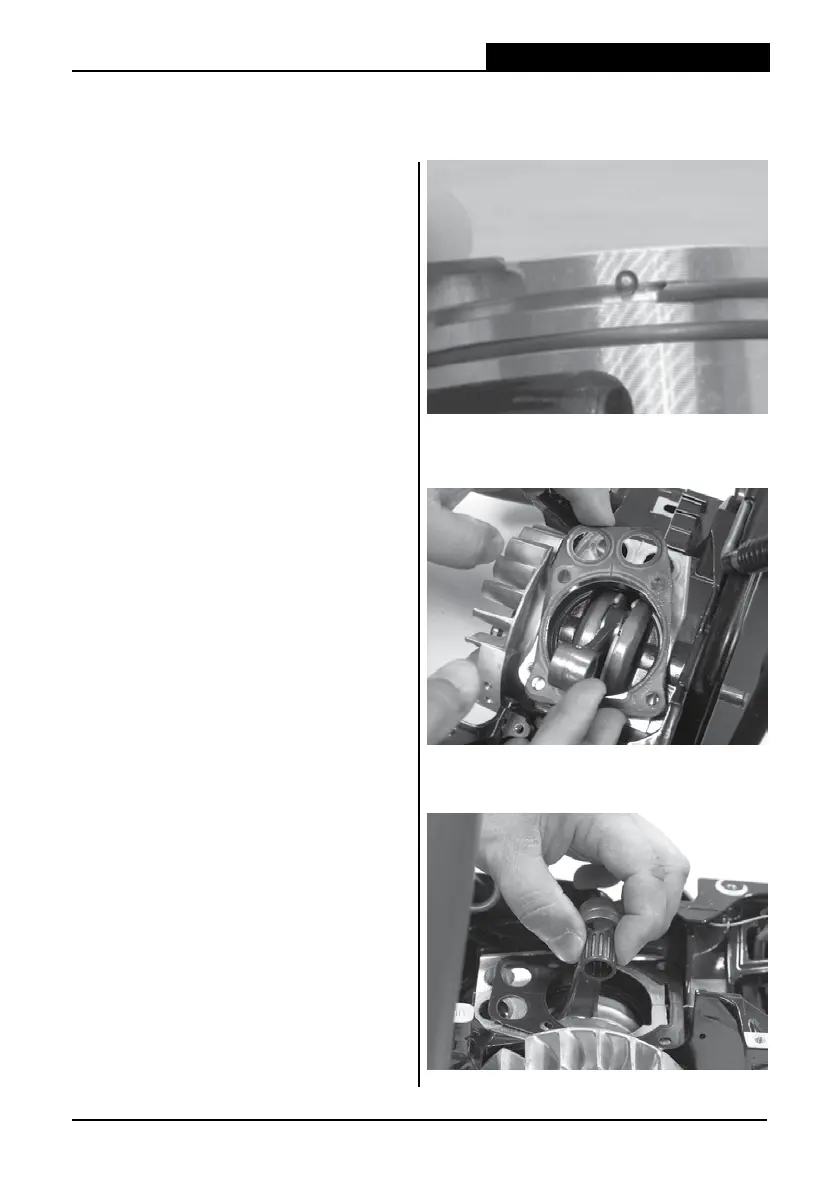

16. CYLINDER & PISTON
To Next Page
