695XL SERVICE MANUAL
20.31

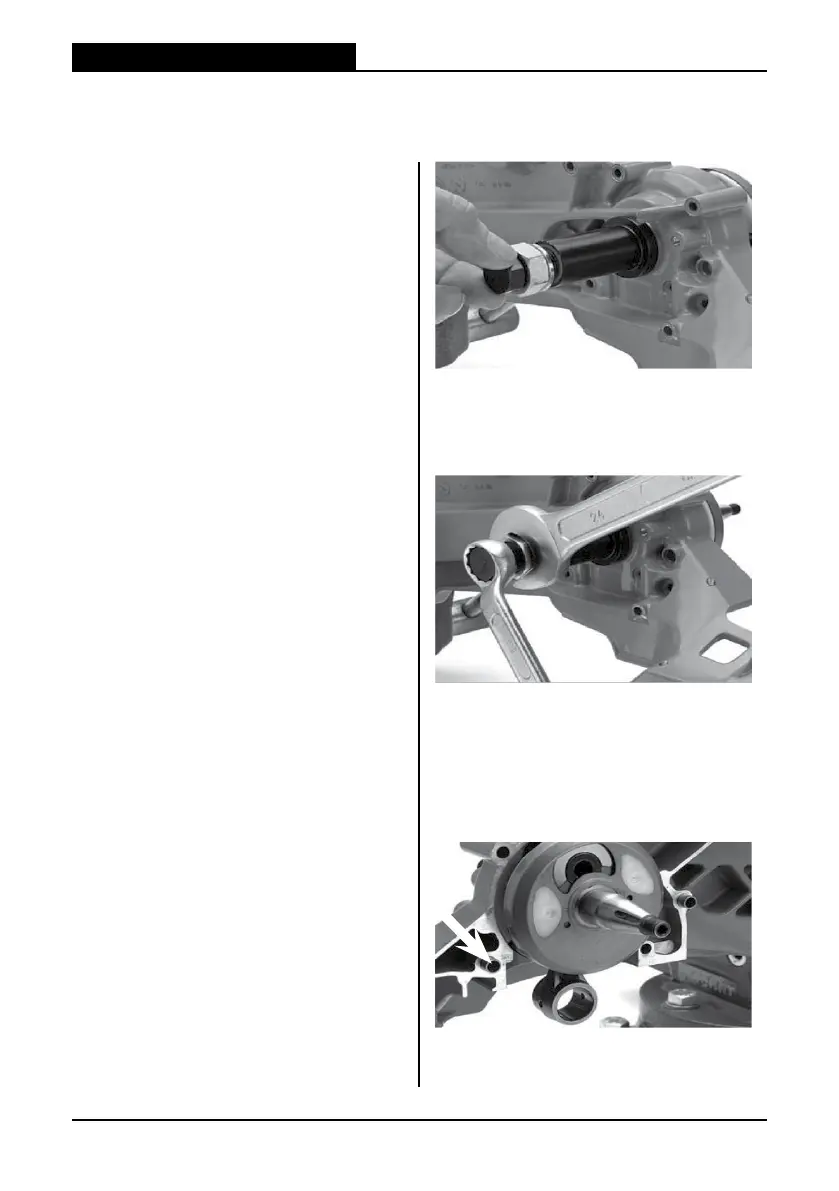

Slide the shaft sleeve over the shaft,
against the crankcase. Thread the M12
mandrel with the nut and washer until it
bottoms (Note - REVERSE THREAD on
the clutch side).
20.33
Install the (2) crankcase guide pins.
20.32
Hold mandrel in place, turn nut
clockwise until the shaft reaches the top
at the bearing. Ensure the connecting rod
is not pinched against the case.
20. CRANKCASE
