MACH+ heat recovery units— User and installer manual
© Ideal Clima-page 15 of 20
following figures. In order not to transmit vibration to the entire system, the first section must be made with
flexible pipes.
Ideal Clima's TREO distribution system adapts perfectly to the use of
MACH+ recovery units.

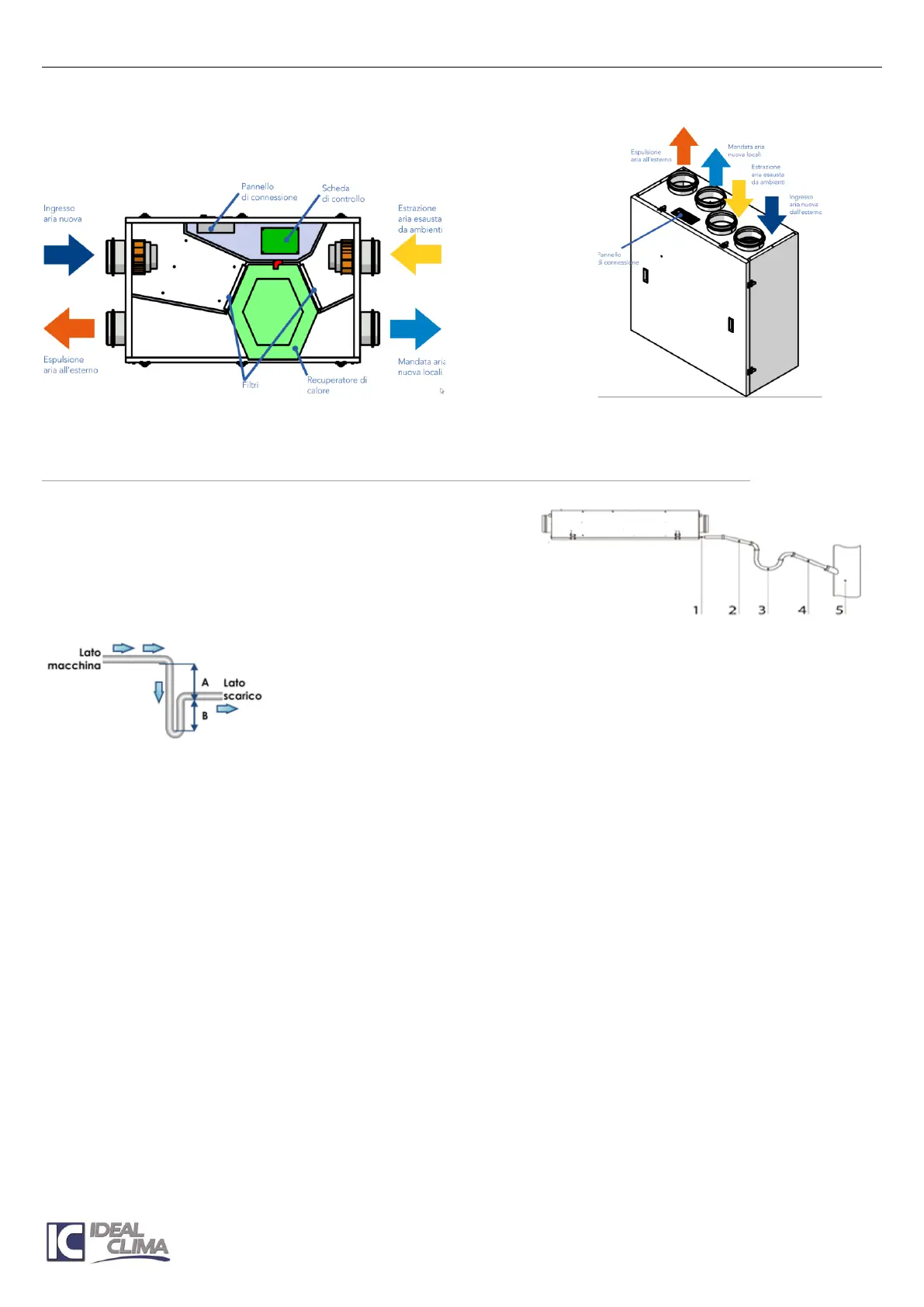

8.10 SIPHON - CONDENSATE DRAIN
Connect the drain pipe 1), to the siphon 3) (Not supplied) and
these to the wastewater collection system5) with metal, plastic
or rubber pipes 2) and 4). The slope of the pipe must be at
least 3°. Ensure that water flows freely into the wastewater
collection system. The drainage system must be thermally
insulated or pre-heated if it passes through areas with a
temperature below 0°C
To avoid backflow of bad smell, install a siphon of height at least equal to the
working prevalence of fans.
At normal operating range A = B = 60 mm
