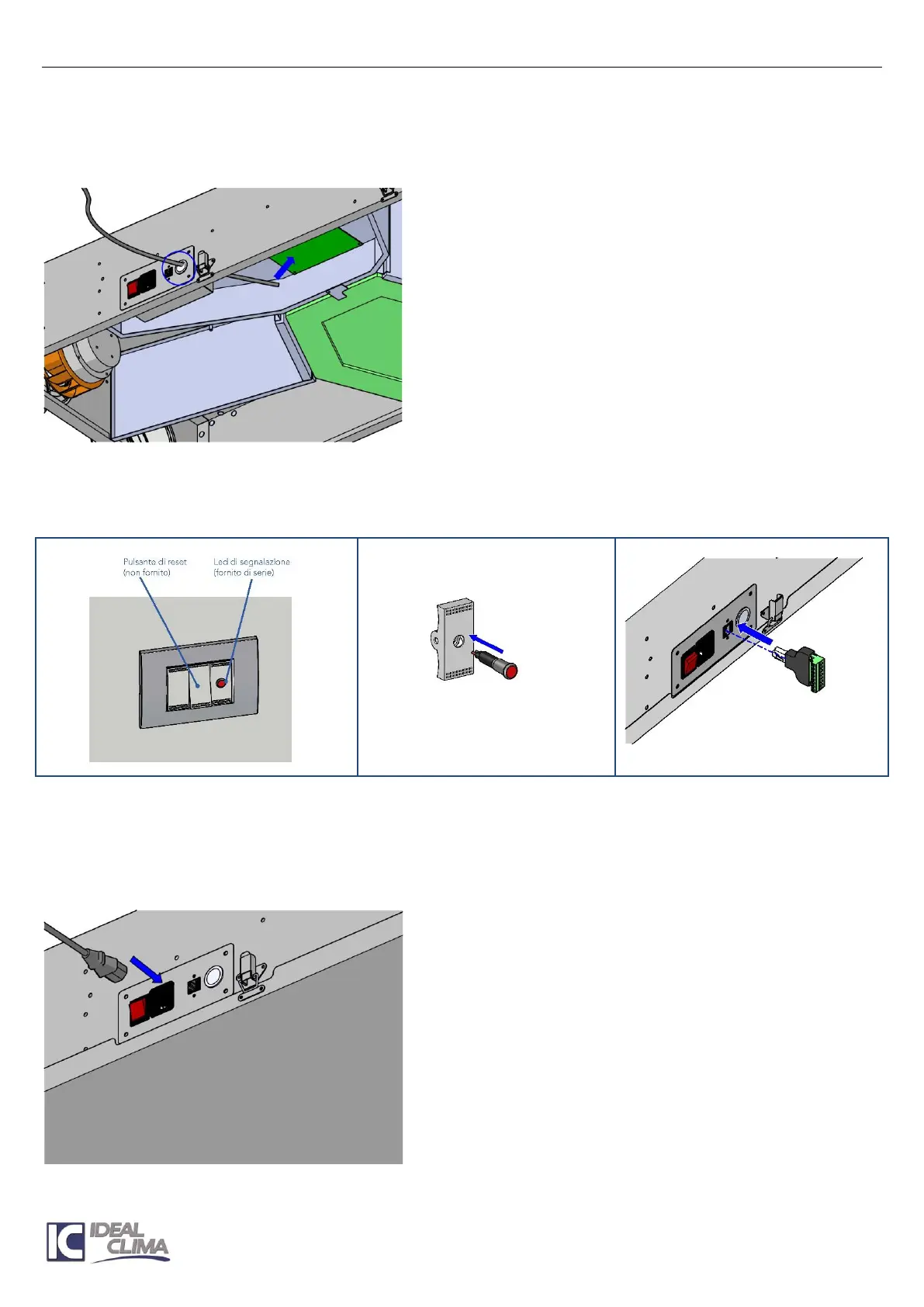

WIRING FOR MACH+ FREE-COOLING AUTOMATIC
Remote Control Linea:
Enter with the control cable through the appropriate cable gland on the panel to get to the internal electrical
board. Connect common and speed selector as shown in diagram 4.2.2 to the CN2 eCN3 terminal block of
the electronic board. Clean contacts are mandatory. Otherwise, interpose relays.
Signal line clogged filters:
The clogged filters warning light (3 V led as standard) must be installed in a civil series hole cover. The RJ45 plug
with clamps (supplied) must be inserted into the socket of the electrical panel of connection and connected
according to wiring diagram.
Line reset alarm filters
The reset button is a standard electrical button (not supplied), to be connected according to wiring diagram.
Supply Line:
Insert the VDE power plug into the connector next to the ignition switch, on the electrical connection panel.
Cable and plug are supplied.
