IDEAL Evomax 120 Installation & Servicing Manual

14
EVOMAX - Installation & Servicing
INSTALLATION
16

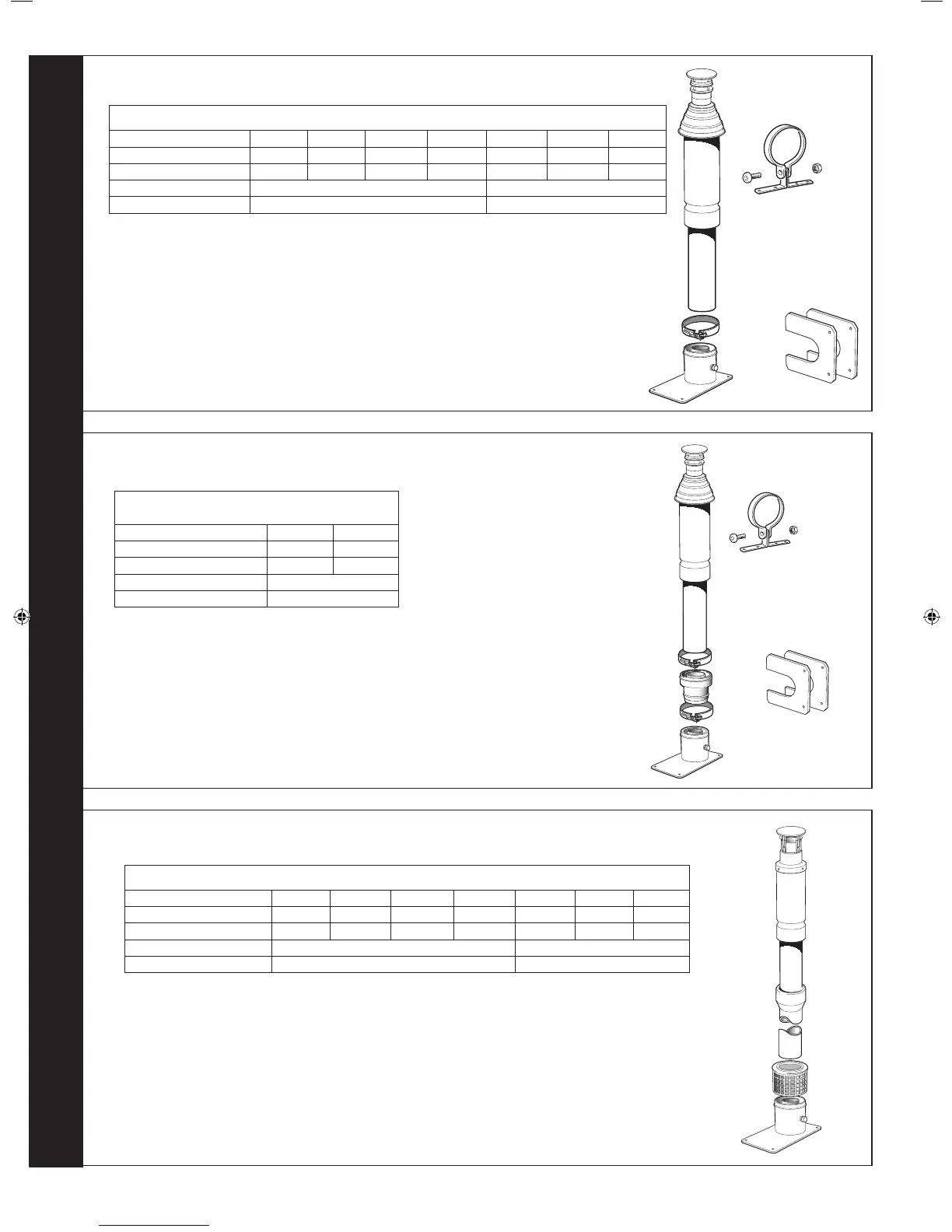

OPEN FLUE KITS
Contents
158662 / 158663
• Boiler adapter + screws (x6)
• Air inlet grille
158769 / 158770
• Terminal
Note: See Frame 18 for elbow equivalent lengths.
RF 2501
14 VERTICAL ROOF FLUE KIT
Contents
• Boiler adapter + screws (x6)
• Terminal
• Locking Collar
• Finishing plates (x2)
• Bracket
RF 2498
Note: See Frame 18 for elbow equivalent lengths.
15 VERTICAL ROOF FLUE KIT -
Contents
• Boiler adapter + screws (x6)
• Increaser
• Terminal
• Locking Collars (x2)
• Finishing plates (x2)
• Bracket
RF 2499
Note: See Frame 18 for elbow equivalent lengths.
FLUE OUTLET

Model 30/30P 40/40P 60/60P 80/80P 100 120 150
Max ue length (m) 42 42 7.5 12 20 17.6 7.5
Max ue press diff (Pa) 140 200 117 260 220 288 290
Flue Size 80 / 125 100 / 150
Vertical ue kit No 158654 158656

longer length
Model 60/60P 80/80P
Max ue length (m) 30 35
Max ue press diff (Pa) 133 250
Flue Size 100 / 150
Vertical ue kit No 158655

Model 30/30P 40/40P 60/60P 80/80P 100 120 150
Max ue length (m) 65 70 25 22 20 49 32
Max ue press diff (Pa) 140 225 150 312 220 365 430
Flue Size 80/125 100/150
Open ue kit No 158662 + 158769 158663 + 158770
206210-3.indd 14 09/06/2011 13:34:19
