EVOMAX -
Installation & Servicing
GENERAL
1
BOILER CLEARANCES AND CONNECTIONS
The following minimum clearances must be maintained for operation
and servicing.
Front of boiler - 450mm
Sides of boiler - 25mm
Above boiler - dependent upon the ue system see drawings
Below boiler - 300mm
Clearance between multiple boiler installations - 25mm
EVOMAX 30, 40, 60 & 80
Minimum boiler top clearances:
for vertical ue 200mm
for horizontal ue 350mm (415mm for 100/150)
for open ue 350mm
EVOMAX 100, 120 & 150
Minimum boiler top clearances:
for vertical ue 200mm
for horizontal ue 370mm
for open ue 350mm

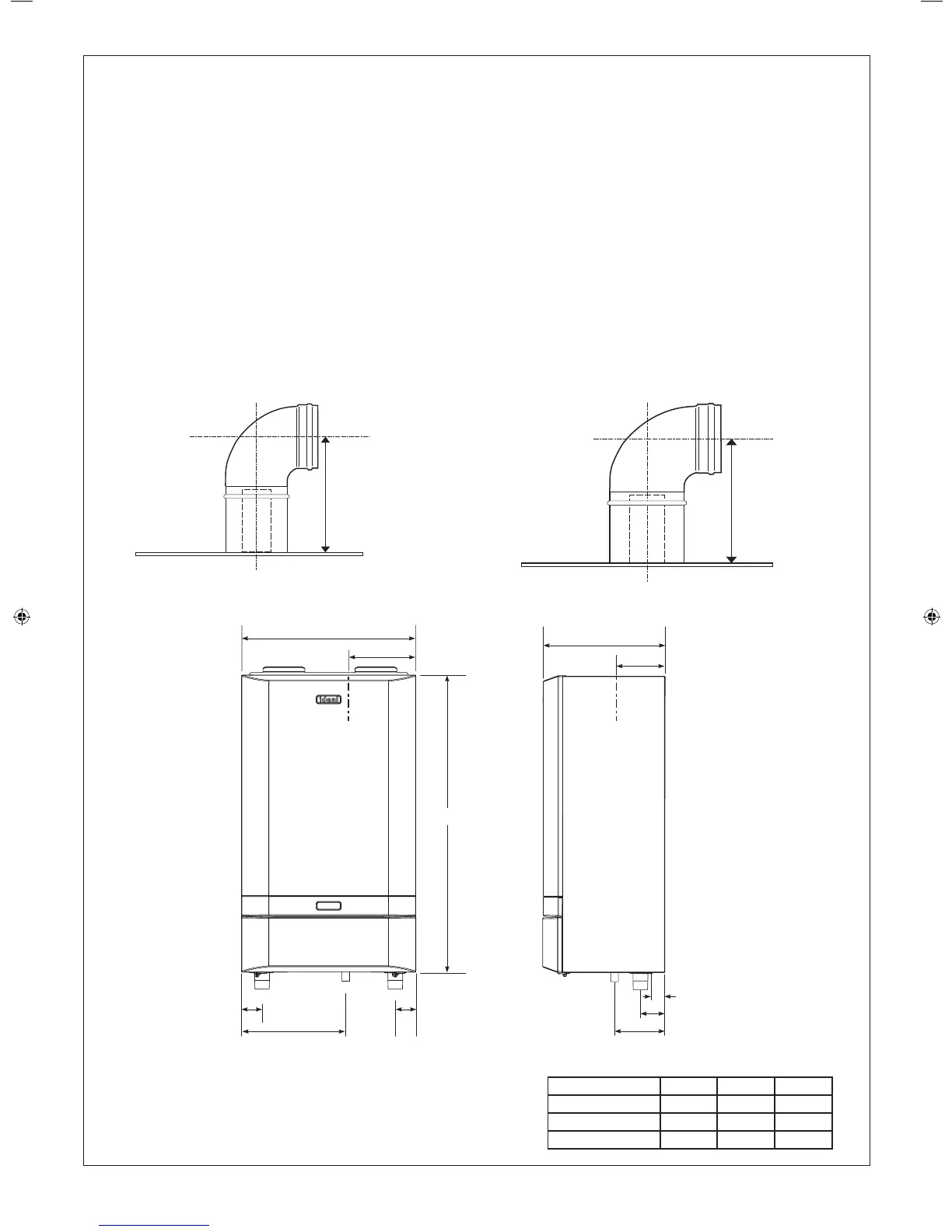

Flue centre
line
im9245
X=224.5 (80/125)
X=289.5 (100/150)*
* with 100/150 adaptor
(See Frame 13)
Flue centre
line
X=232
RF 2544
‘C’
‘B’
‘A’
850
59 59
155
81
68
Gas
Flow Return
299
Gas Pipe
Flow/Return
Condensate Drain
Flue Centre Line
Flue Centre Line
Boiler Dim. A Dim. B Dim. C
30, 40, 60, 80 360 130 118
100, 120 520 226 118
150 610 233 120
