IDEAL Evomax 120 Installation & Servicing Manual

32
EVOMAX - Installation & Servicing
INSTALLATION
INSTALLATION

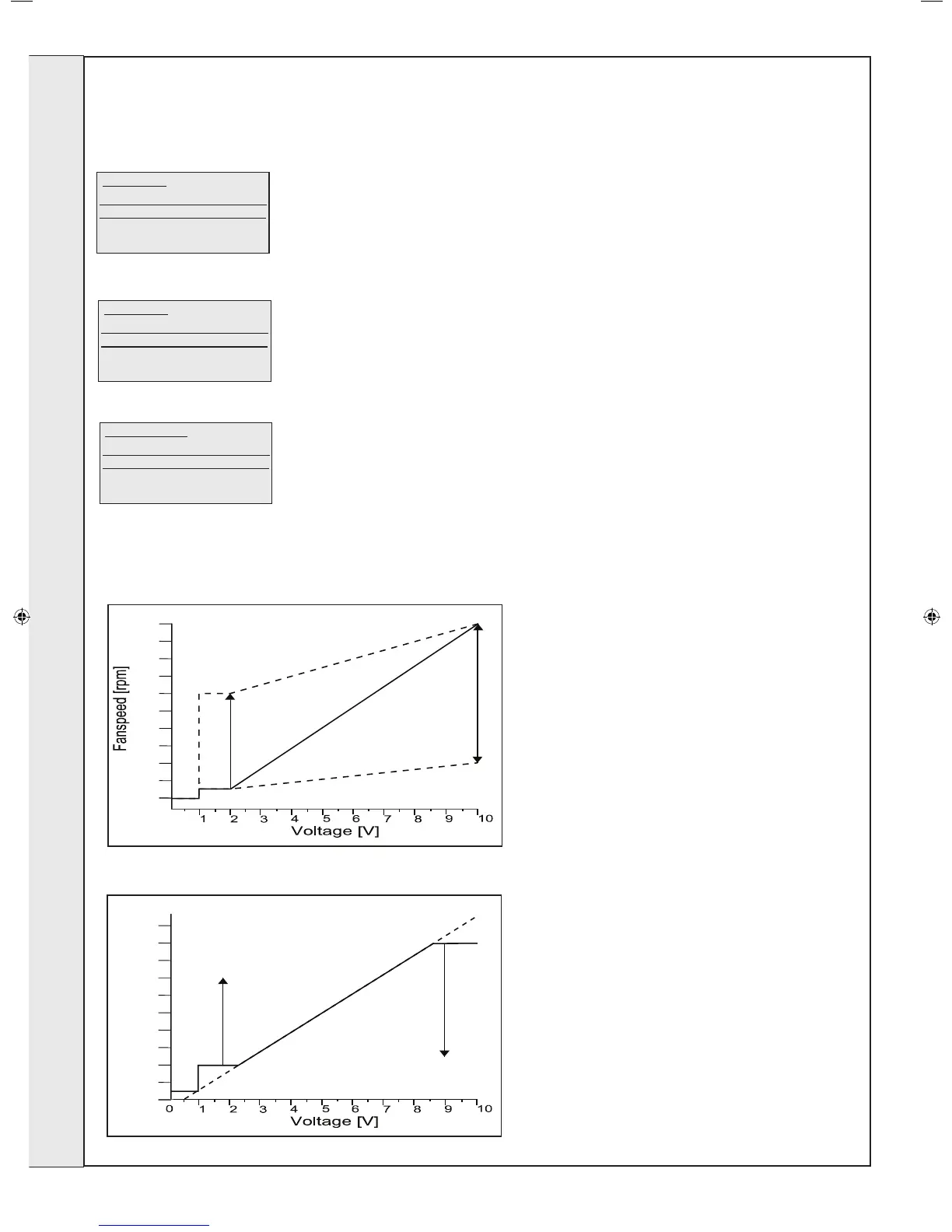

40 EVOMAX USER INTERFACE - ADVANCED OPERATING INSTRUCTIONS
SETTING TO 0-10V
Press SELECT and then hold + and - down together for more than 5s, the following screen will be displayed
Installer Mode
Normal Operation
Set Flow Temp’
Set DHW Temp’
Rotate the KNOB clockwise until the following screen is displayed
Installer Mode
Show Hours Run
Set to 0-10V Input
Set Night Setback
DHW Pump / Valve
Press SELECT and the following screen will be displayed
Set to 0-10V Input
0-10V Off
0-10V Capacity
0-10V Temperature
Press + and - to change to the required setting and then press ENTER to store
Rotate the KNOB anti-clockwise until Normal Operation is highlighted again and press SELECT to return to normal operation
10000
9000
8000
7000
6000
5000
4000
3000
2000
1000
0
Minimum CH Fan Speed
Maximum CH Fan Speed
Heat request is OFF
Capacity Control
0-10V Capacity Control is governed by the following relationship
100
90
80
70
60
50
40
30
20
10
0
Max. flow temperature set point
Heat request OFF
Boiler frost protection set point
Max. Flow Temperature Set Point
Temperature Control
Temperature [ºC]
0-10V Temperature Control is governed by the following relationship
continued . . . . . . . .
206210-3.indd 32 09/06/2011 13:34:32
