IDEAL EVOMAX 2 150

29
UIN DESCRIPTION
DRAWING
IDENTIFIER
COMPATIBLE
WITH EVOMAX 2
30, 30P, 40, 40P, 60,
60P, 80, 80P
COMPATIBLE WITH
EVOMAX 2 100, 100P, 120,
120P, 150
213274 Plume kit 1m extension 80/125 A
R
213272 Plume kit 90 deg elbow 80/125 B
R
213273 Plume kit 45 deg elbows (pair) 80/125 C
R
213277 Plume kit 1m extension 100/150 A *
R
213275 Plume kit 90 deg elbow 100/150 B *
R
213276
Plume kit 45 deg elbows (pair)
100/150
C *
R
EVOMAX 2 PLUME KIT - PACKAGED OPTIONS
EVOMAX 2 PLUME KIT
The Evomax 2 Plume Kit is one of the latest additions to the flue accessory range from Ideal, designed specifically
for the Evomax 2 range. Available for Evomax 2 boilers up to 150kW the Plume Kit can be used to relocate the flue
terminal up to 10m.
• Suitable for all Evomax 2 up to 150kW
• Available for both 80/125 & 100/150
flue applications
• Plume kit oers terminal relocation up to 10m
• Includes standard appliance connector, horizontal
flue kit, special rain collar, external plume kit 1m
and terminal
• Oers neat solutions for awkward flue installations
where the terminal requires relocation

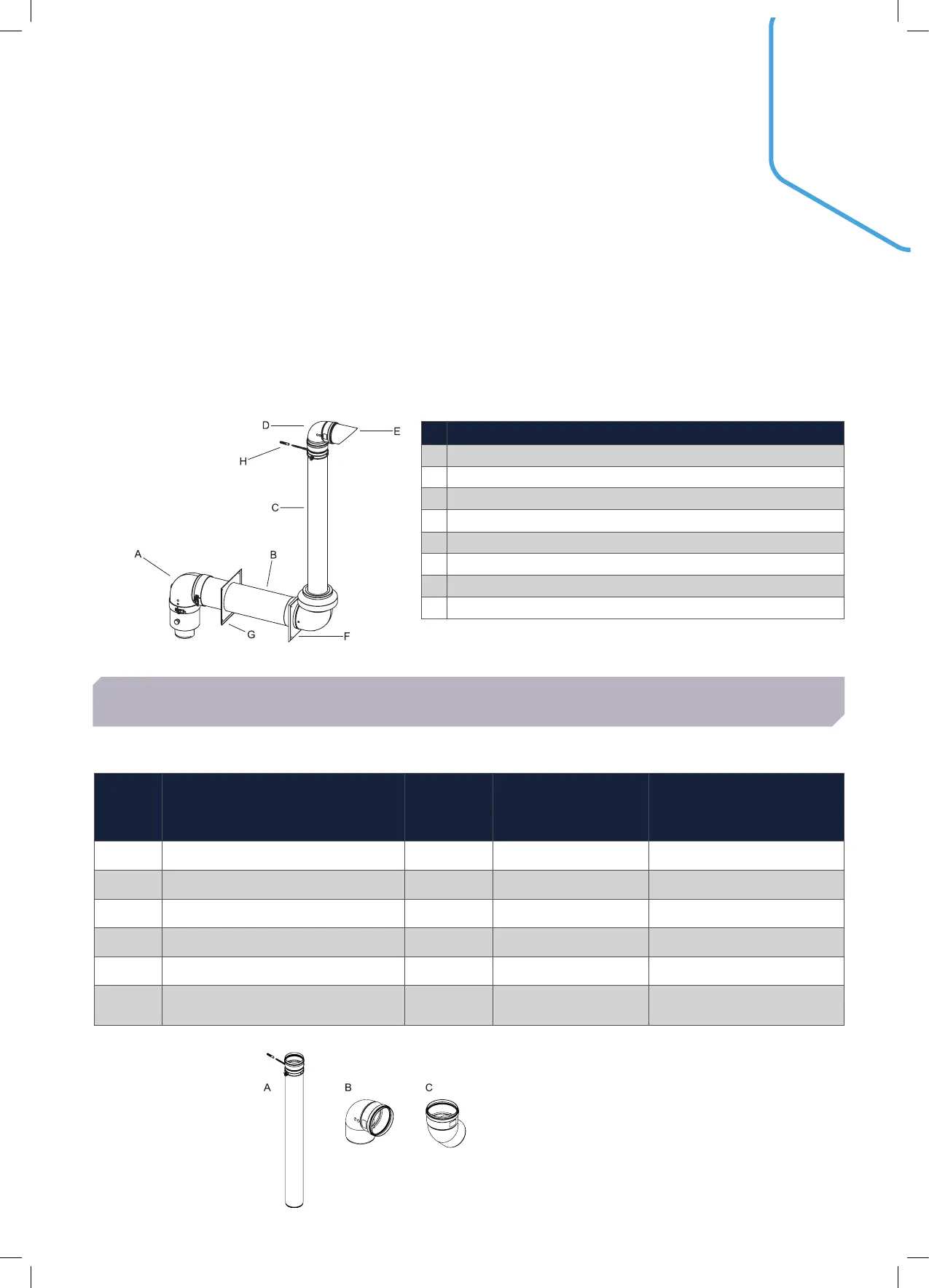

PRODUCTS
A Turret elbow
B Flue terminal with rain cowl & air terminal assembly
C 1 Meter extension tube
D 90 degree elbow
E Flue terminal end
F External wall plate
G Internal wall plate
H Wall bracket
*Note: The 100/150mm Plume Kit system
can also be used on Evomax 80, 80P,
60 & 60P model variants if internal
concentric wall horizontal flue adaptor is
used (Part No. 158660). See main Evomax
Literature for details.
OPERATION
