IDEAL EVOMAX 2 150

UIN DESCRIPTION
220922 Plume kit 80/125
213274 Plume kit 1m extension 80/125
213272 Plume kit 90 deg elbow 80/125
213273 Plume Kit 45 deg elbow 80/125 (Pair)
UIN DESCRIPTION
220923 Plume kit 100/150
213277 Plume kit 1m extension 100/150
213275 Plume kit 90 deg elbow 100/150
213276 Plume kit 45 deg elbow 100/150 (Pair)
EVOMAX PLUME KIT - 80/125
EVOMAX PLUME KIT - 100/150
80 / 125 DIA FLUE ~ MAXIMUM PERMISSIBLE FLUE
LENGTHS (M)
Evomax
Model
30/30P 40/40P 60/60P 80/80P
Y X
0.5 39.2 39.2 4.7 9.2
2.0 38.5 38.5 4.0 8.5
4.0 37.6 37.6 3.1 7.6
6.0 36.7 36.7 2.2 6.7
8.0 35.8 35.8 1.3 5.8
10.0 34.9 34.9 0.4 4.9
100 / 150 DIA FLUE ~ MAXIMUM PERMISSIBLE FLUE
LENGTHS (M)
Evomax
Model
60/60P 80/80P 100 120
Y X
0.5 27.0 32.0 8.0 14.6
2.0 26.6 31.6 7. 6 14.2
4.0 26.0 31.0 7.0 13.6
6.0 25.5 30.5 6.5 13.1
8.0 24.9 29.9 5.9 12.5
10.0 24.4 29.4 5.4 12.0
X

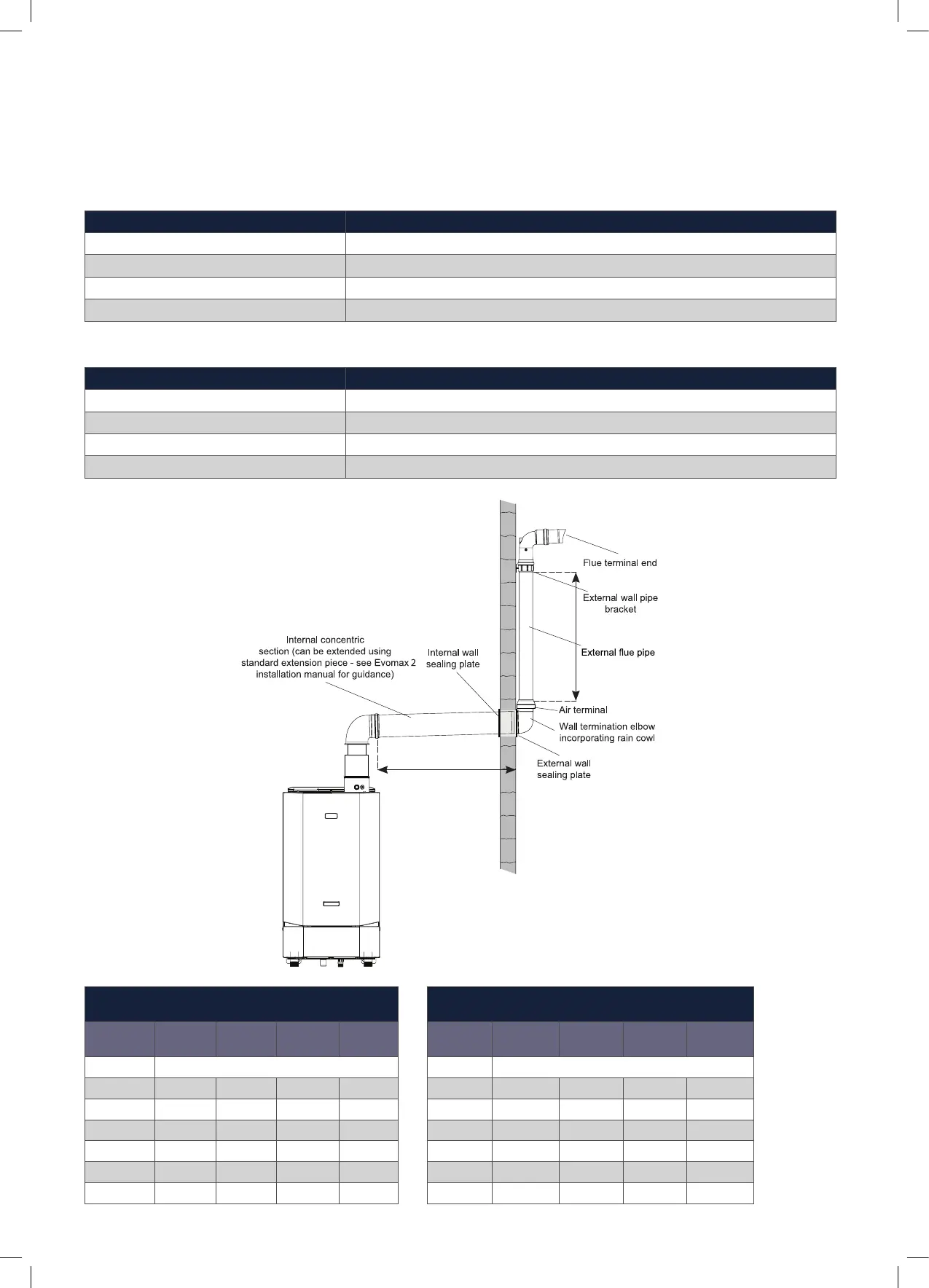

Internal concentric lengths
Y
