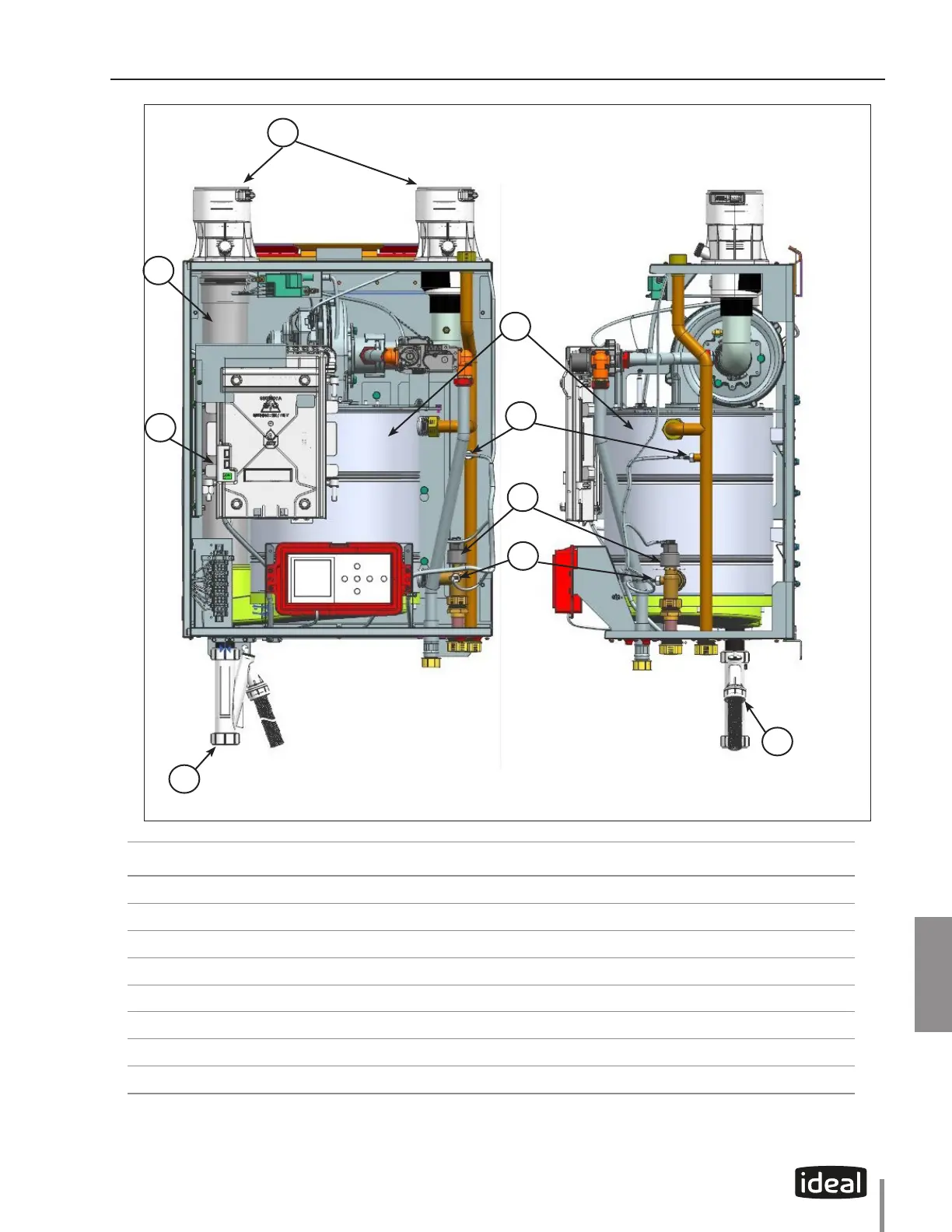

Fig. 41 - EXALT Solo 199 Internal Components

CHAPTER 18

CHAPTER 18 - REPLACEMENT PARTS

Item Part # Description

1 EXRKIT40 Vent Outlet/Combustion Air Inlet Adapter

2 EXRKIT03 Heat Exchanger Body

3 EXRKIT56 CH Supply Temperature Sensor

4 EXRKIT59 Low Water Cut O

5 EXRKIT56 CH Return Temperature Sensor

6 EXRKIT85 Condensate Drain Assembly

7 EXRKIT41 Flue Tube

8 EXRKIT57 Flue Temperature Sensor
