112

CHAPTER 19

0.0

5.0

10.0

15.0

20.0

25.0

4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Pressure Drop (ft H2O)

Flow Rate (GPM)

Exalt Solo Pump Curve

Exalt 110S

Exalt 155S

Exalt 199S

CHAPTER 19 - PRODUCT SPECIFICATIONS

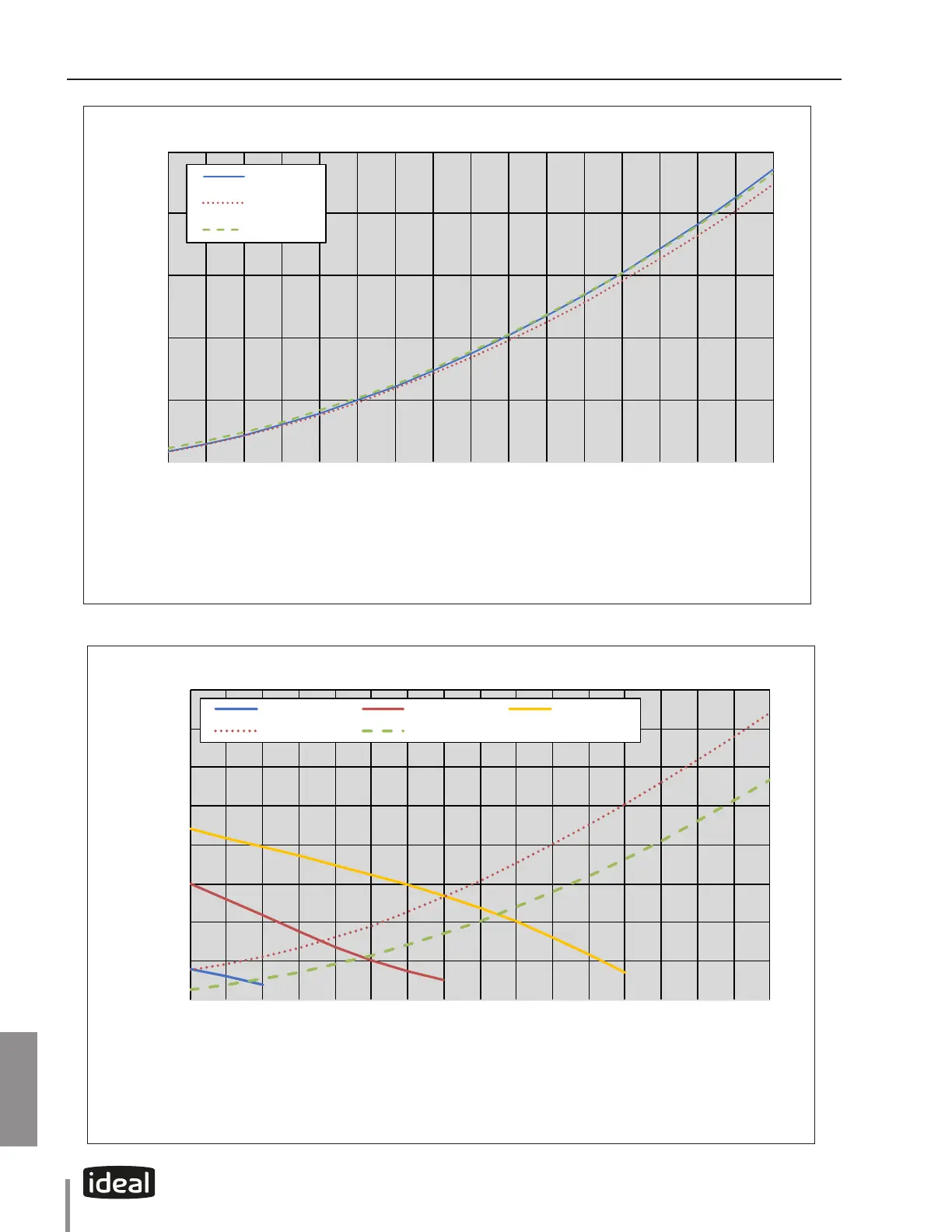

Graph 1 - EXALT Solo - Pressure Loss Through Boiler

Note: Minimum allowable ow rate at full input:

- 5 gpm SOLO 110 - 7 gpm SOLO 155 - 9 gpm SOLO 199

EXALT Solo Pressure Drop

Note: Minimum allowable ow rate at full input:

-7 gpm COMBI 155 - 9 gpm COMBI 199

EXALT Combi Pressure Drop

Graph 2 -EXALT Combi - Pressure Loss Through Boiler

0.0

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Pressure Drop (ft H2O)

Flow Rate (GPM)

Instinct Combi Pump Curve

15-78 SPD 1 15-78 SPD 2 15-78 SPD 3

Instinct 155C Instinct 199C

Exalt Exalt
