IDEAL F80 - Boiler Assembly - Exploded View

10
xtra
- Installation & Servicing
INSTALLATION

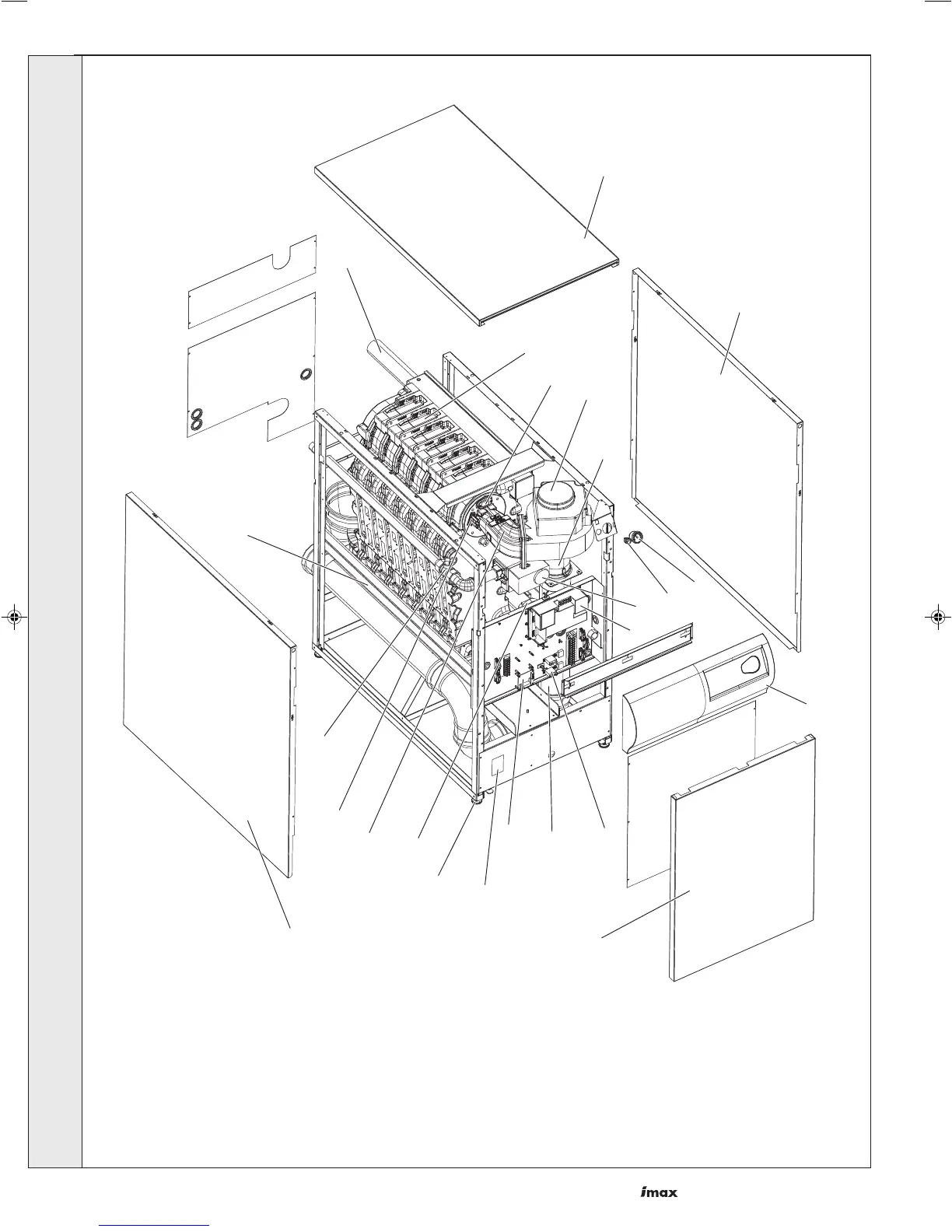

6 BOILER ASSEMBLY - Exploded View (F280 shown)
1
5
3725
14
20
Data plate
33
19
27
47
7
38
49
6
22
24
8
11
3
2
9
12
7
im8267
Legend
1. Control fascia panel
2. Burner switch
3. Pressure gauge
5. Casing front panel
6. Casing top panel
7. Casing side panel
8. Fan
9. Gas Valve
11. Venturi
12. Control Module
14. Alarm / boiler run relays board
19. Union Gas cock
20. Levelling feet
22. Heat exchanger
24. Sightglass
25. Air inlet
27. Burner manifold
33. Air pressure switch
37. Relay
38. Cable conduit
47. Ignition / detection electrode
49. Manifold - Flow
INSTALLATION
