IDEC DD3S Series - DD48 Series Display Units; Part No.; Specifications

19

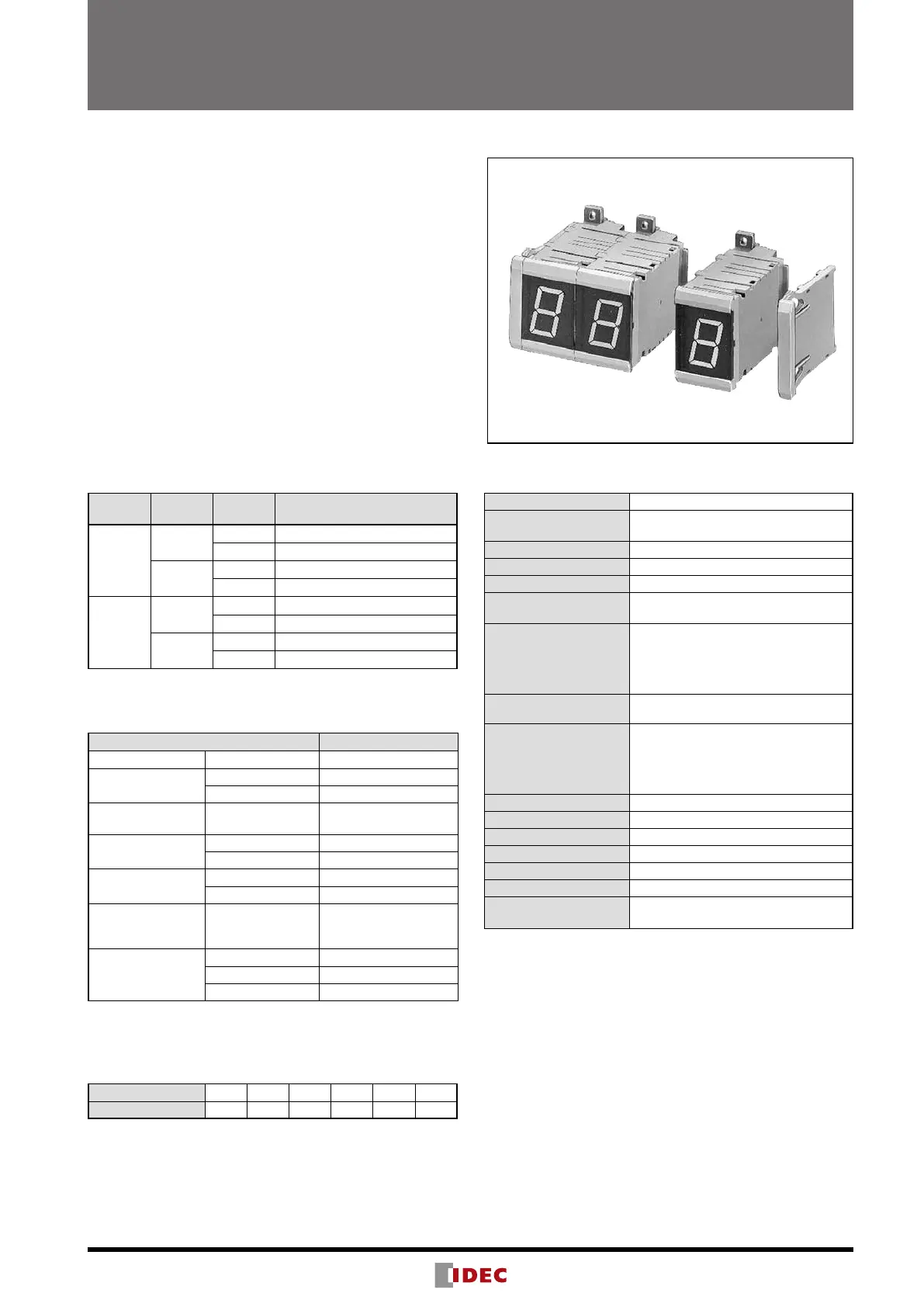

DD48 Series Display Units
Modular units can be combined for up to 16 digits.
•Super bright LED
•Units can be combined together and installed into a panel
cut-out by snap t.
•Binary and decimal display units are available.
•Easy wiring and maintenance
•LED display color: red or green
•Decimal display units are available with zero suppression
function.
•Available in positive and negative input logic types.
DD48
Unit
Input
Logic
Housing
Color
Part No.
Binary
Display
Positive
Black
DD48-F01PB * DC24
Beige
DD48-F01PZ * DC24
Negative
Black
DD48-F01NB * DC24
Beige
DD48-F01NZ * DC24
Decimal
Display
Positive
Black
DD48-F31PB * DC24
Beige
DD48-F31PZ * DC24
Negative
Black
DD48-F31NB * DC24
Beige
DD48-F31NZ * DC24
Note: Specify the LED color code in place of * in the Part No.
MR: red, R: red (super bright), G: green
Accessories (Optional)
Name Part No.
Spacer Unit Black DD48-FY1-B
End Plate (Pair)
Black DD48-W-B
Beige DD48-W-Z
Mounting Clip
(Note 1)
Black DD48-KT1
Long Filter
For red LED DD48-P16R
For green LED DD48-P16G
Connector
Solder Terminal DMC-4
PC Board Terminal DMC-5
Mother Board
for 4 digits (with
connectors)
Binary/Decimal/
Character Display
DD48-MB1-4
Connector for
Mother Board
Type A DD48-JE1A (Note 2)
Type B DD48-JE1B  (Note 2)
Type C DD48-JE1C  (Note 2)
Note 1: Used for mounting four units or more.
Note 2: Specify a cable length code in place of  in the Part No.,
referring to the table below.
Cable Length Code for Mother Board
Code 0.5 1 2 3 4 5
Cable Length (mm) 500 1000 2000 3000 4000 5000
Note: Input connector types
DD48-JE1A: Flat cable connector for direct mounting on
PC boards
DD48-JE1B: Flat cable connector conforming to MIL
Standard
DD48-JE1C: None (soldering, etc)
Specications
Power Voltage 24V DC ±10%
Power Consumption
(Approx.)
Binary: 0.9W
Decimal: 2.0W
Operating Temperature –10 to +55°C (no freezing)
Storage Temperature –25 to +80°C (no freezing)
Operating Humidity 35 to 85% RH (no condensation)
Data Input
L: 0 to 2V
H: 12 to 30V
Display Character
•Binary display unit
red or green LED display: –
•Decimal display unit
7-segment red or green LED:
0 to 9, decimal point
Character Height
(Approx.)
•Binary display unit: 2.5 mm
•Decimal display unit: 25.4 mm
Input
•Binary display unit:
–, Latch, and Blank inputs
•Decimal display unit:
Binary-coded, Latch, DP, and RBI
inputs
Output •Decimal display unit: RBO output
Input Logic Positive or negative
No. of Digits 16 digits max.
Unit Combination Snap t
Panel Mounting Snap t
Degree of Protection IP40 (IEC 60529)
Weight (Approx.)
Display unit: 50g
End plates: 20g (pair)
Note: It is recommended to use a long lter when combining 9 to
16 digits.
