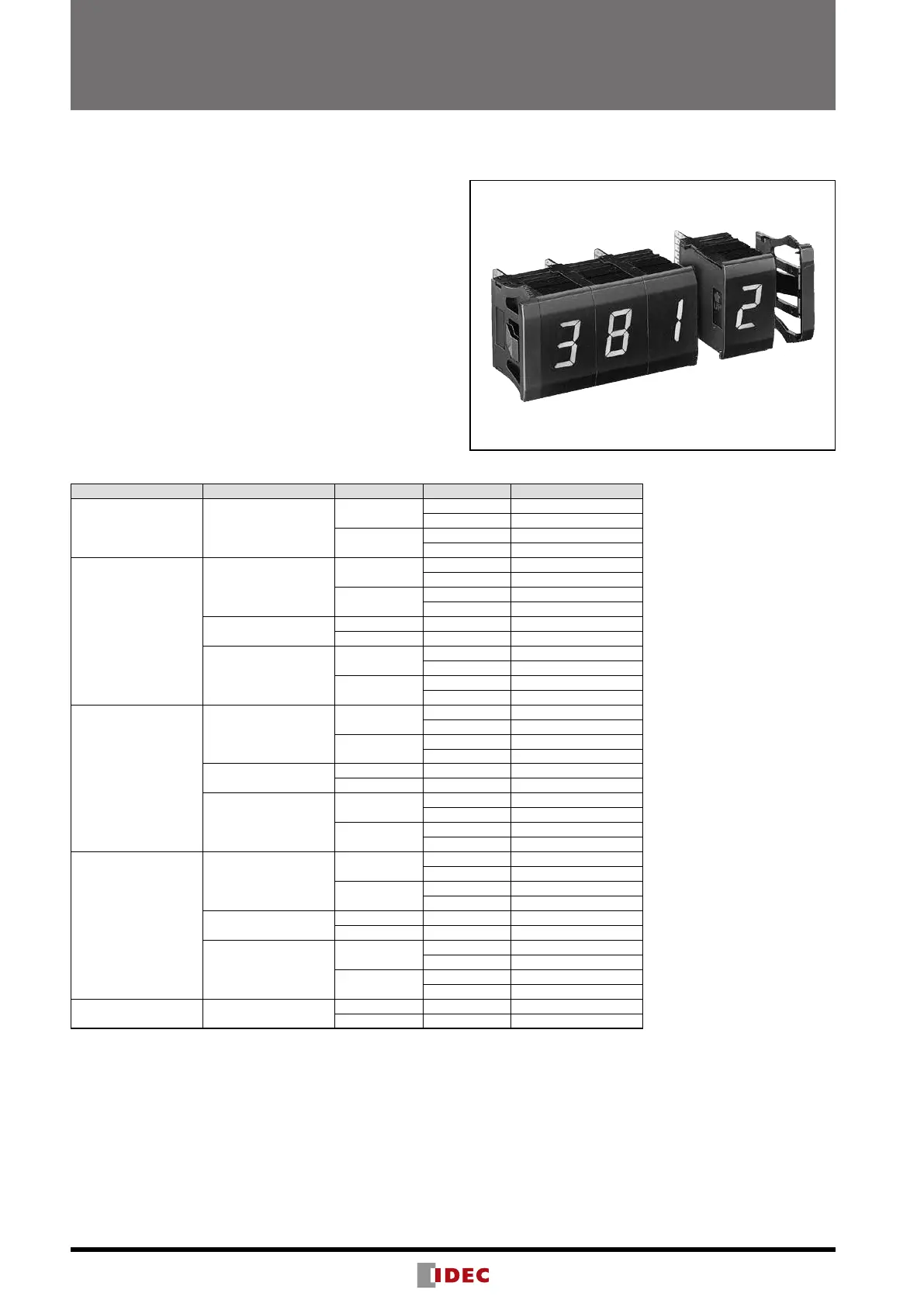

DD3S Series Display Units
7-segment digital display and 5 × 7 dot matrix character display units
Super bright LED display and short body for up to 8 digits
• Super bright LED for easy reading
• Units can be combined together and installed into a panel
cut-out.
• Binary, decimal, hexadecimal, extra decimal, and character
display units are available.
• The character display unit uses 5 × 7 dot matrix LEDs and
can display 254 characters, including katakana, symbols,
units, and simple kanji characters, as well as numbers and
alphabets.
• Positive or negative input logic
• Easy wiring and maintenance
• Power voltage 12 through 24V DC.
• Mother boards are available for dynamic and static display
modes; substantial saving of wiring.
DD3S
Display Units (Housing Color: Black)
Notation Function Input Logic LED Color Part No.
Binary Standard
Positive
Red DD3S-F01P-R
Green DD3S-F01P-G
Negative
Red DD3S-F01N-R
Green DD3S-F01N-G
Decimal
Standard
Positive
Red DD3S-F31P-R
Green DD3S-F31P-G
Negative
Red DD3S-F31N-R
Green DD3S-F31N-G
2-color Alternate
Positive R/G DD3S-F31P-RG
Negative R/G DD3S-F31N-RG
Zero-suppress
Positive
Red DD3S-F31P-R-S
Green DD3S-F31P-G-S
Negative
Red DD3S-F31N-R-S
Green DD3S-F31N-G-S
Extra Decimal
Standard
Positive
Red DD3S-F34P-R
Green DD3S-F34P-G
Negative
Red DD3S-F34N-R
Green DD3S-F34N-G
2-color Alternate
Positive R/G DD3S-F34P-RG
Negative R/G DD3S-F34N-RG
Zero-suppress
Positive
Red DD3S-F34P-R-S
Green DD3S-F34P-G-S
Negative
Red DD3S-F34N-R-S
Green DD3S-F34N-G-S
Hexadecimal
Standard
Positive
Red DD3S-F36P-R
Green DD3S-F36P-G
Negative
Red DD3S-F36N-R
Green DD3S-F36N-G
2-color Alternate
Positive R/G DD3S-F36P-RG
Negative R/G DD3S-F36N-RG
Zero-suppress
Positive
Red DD3S-F36P-R-S
Green DD3S-F36P-G-S
Negative
Red DD3S-F36N-R-S
Green DD3S-F36N-G-S
Character Display
Positive Red DD3S-F57P-R
Negative Red DD3S-F57N-R
Ordering Information
1. Specify the Part No. and quantity of the display units and accessories.
(Example) Display Unit DD3S-F31P-R 8 pcs
Accessories
  •SpacerUnit DD9Z-FY1-B 1pc
  •EndPlate DD9Z-W-B 1set
  •MotherBoard DD9Z-MB1-4 2pcs
2. Order spacer units, end plates, and mother boards separately.
See the next page.
