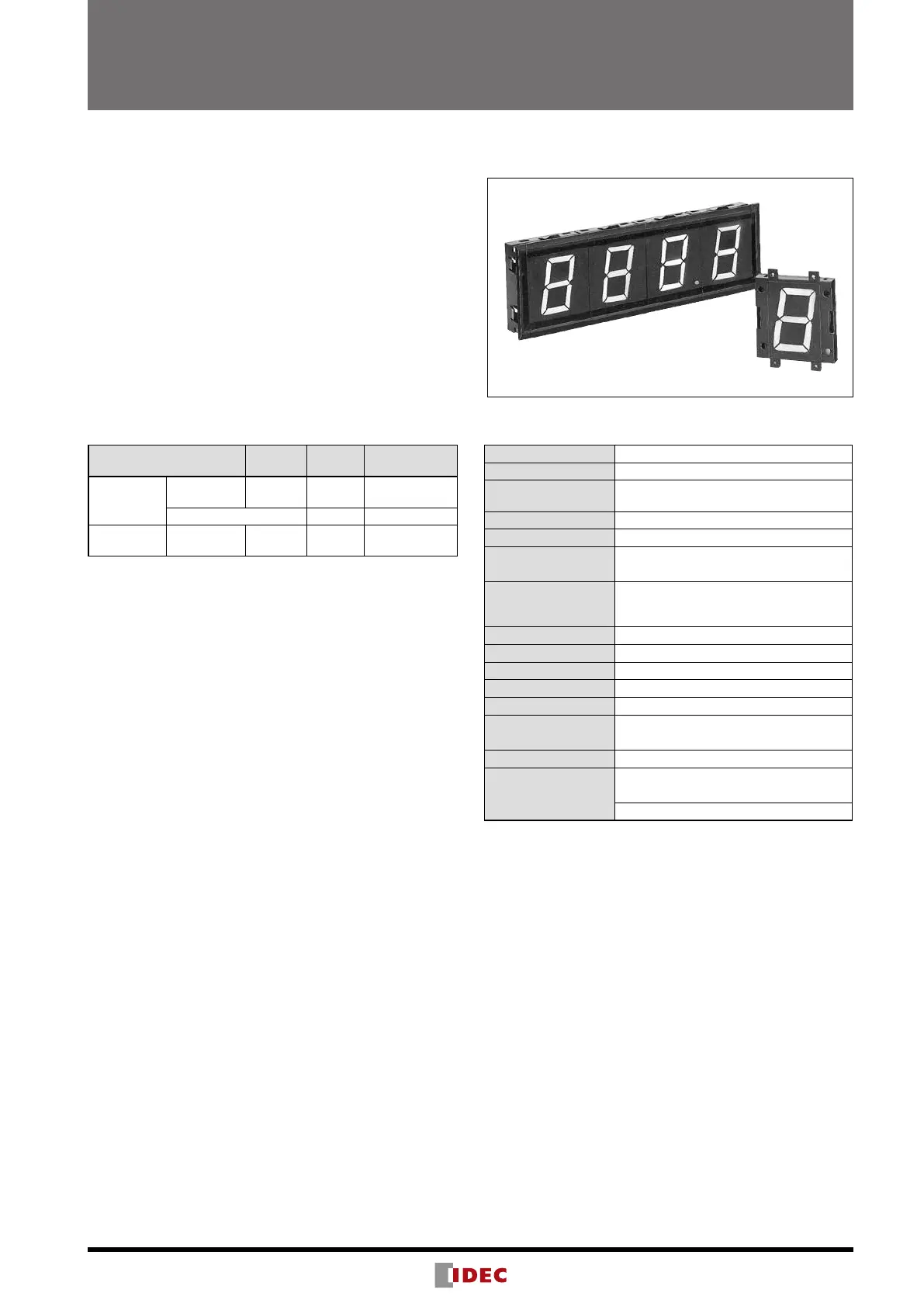

DD96 Series Display Units
Two mounting styles; front and rear mount.
High visible large LEDs; character height 57 mm.
•Modular units can be combined for up to 8-digits.
•Super bright LED
•Units can be combined together and installed into a panel
cut-out by snap t.
•Easy wiring and maintenance
•Display units operate on 24V DC.
•Jumbo size model of 96H × 72W mm (character height 57
mm), high visible from a distance.
DD96
Item
Input
Logic
Housing
Color
Part No.
Front
Mount
Decimal
Display Unit
Negative Black DD96-F31N-B
End Plate (pair) Black DD96-W-B
Rear Mount
Decimal
Display Unit
Negative Black DD96-R31N-B
Note: A connector is supplied with each display unit.
Specications
Power Voltage 24V DC ±10%
Current Draw Approx. 80 mA
Operating
Temperature
–10 to +55°C (no freezing)
Storage Temperature –25 to +80°C (no freezing)
Operating Humidity 35 to 85% RH (no condensation)
Data Input
L: 0 to 2V
H: 12 to 30V
Display Character
7-segment red LED display
Decimal display unit: 0 to 9, decimal
point
Character Height 57 mm
Input Binary-coded, Latch, DP and BI inputs
Input Logic Negative
Output BO (blanking output)
No. of Digits 8 digits max.
Panel Mounting
Front mount: Snap t
Rear mount: Screw
Degree of Protection IP40 (IEC60529)
Weight (Approx.)
Front mount: 130g
End plates: 26g (pair)
Rear mount: 100g
