IDS X64 Training Manual

10

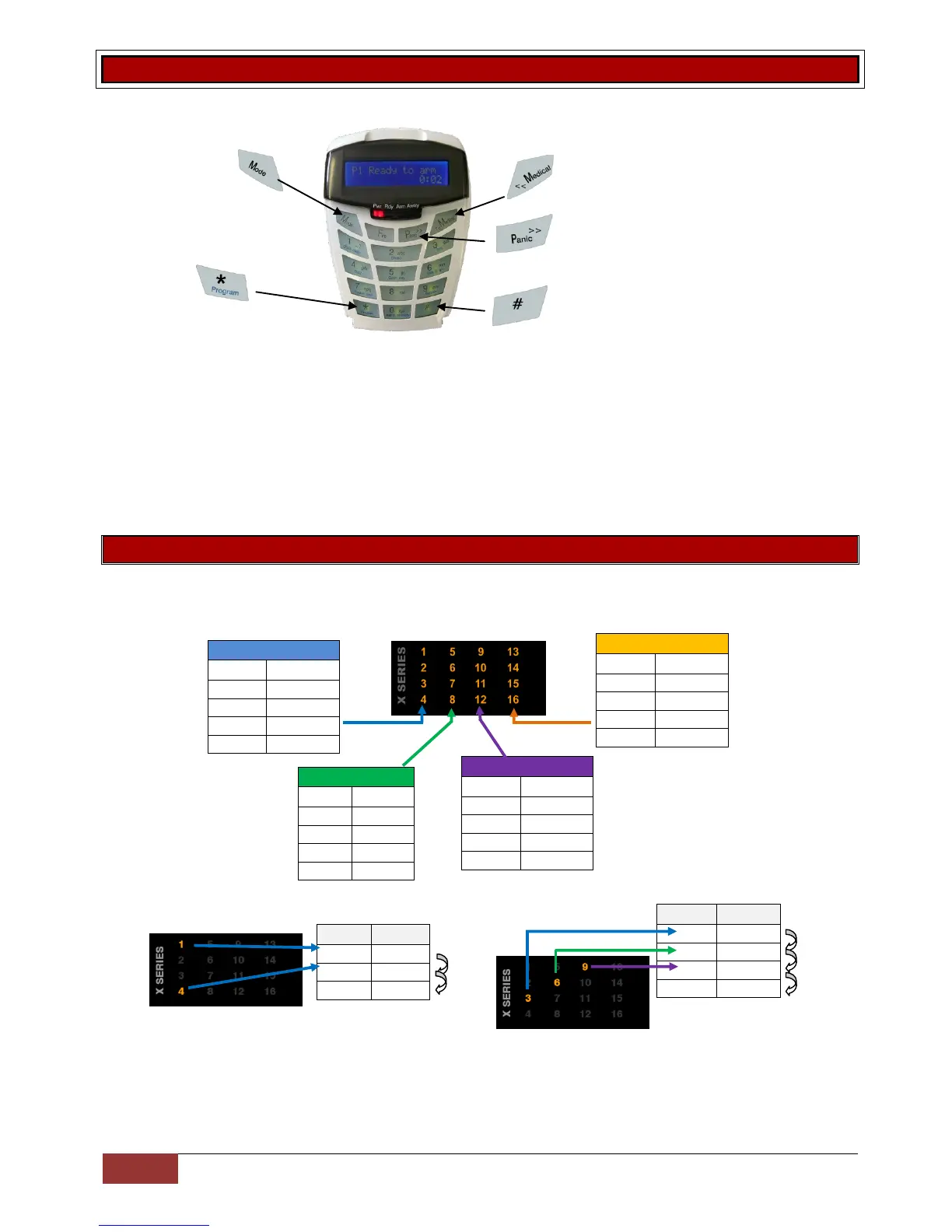

Entering Data | IDS X Series Training V2.3
Entering Data
Below is a description of the keys to be used when entering data:
Feedback while entering data
1. Single extended beep = correct entry
2. 3 beeps = incorrect entry
Reading Numerical Values Stored in Locations via an LED Keypad
When using an LED keypad, values will be displayed in Binary format. Every zone is given a value which
needs to be added together to makeup the value in the location.
Units
Zone
Value
1
1
2
2
3
4
4
8
Example:
Thousands
Zone
Value
13
1000
14
2000
15
4000
16
8000
Hundreds
Zone
Value
9
100
10
200
11
400
12
800
Tens
Zone
Value
5
10
6
20
7
40
8
80
Zone
Value
3
4
6
20
9
100
Total
124
Zone
Value
1
1
4
8
Total
9
Enter Key
The * key has two functions
1. To save the data that has been
entered
2. To scroll through locations with
data already entered
Clear / Exit Key
The # key has two functions:
1. If data is entered incorrectly press
the # key to clear what was entered.
2. If no data is to be entered and you
want to exit the location or installer
mode
Scroll keys >> &<<
When in a menu >> will scroll forward
through the menu and << will scroll
you backward.
LCD keypad only
Mode Key
Use the mode key to enter
Hexadecimal numbers
The value is 9
The value is 124
+
=
+
+
=

IDS X64 Specifications

General

Keypads	8
Stay/Away Arming	Yes
Tamper Protection	Yes
Operating System	Proprietary
Supported Protocols	Contact ID, SIA
Power Supply	16.5VAC
Backup Battery	12VDC 7Ah
Alerts	SMS
RAM	Unknown
