IDS X64 Training Manual

IDS X Series Training V2.3 | Wireless
39
4. No messages for this peripheral detected from X-Series
5. Not used
6. Expander not yet registered on the X-Series
7. Expander tamper violated
8. Unsupported DIP address configured

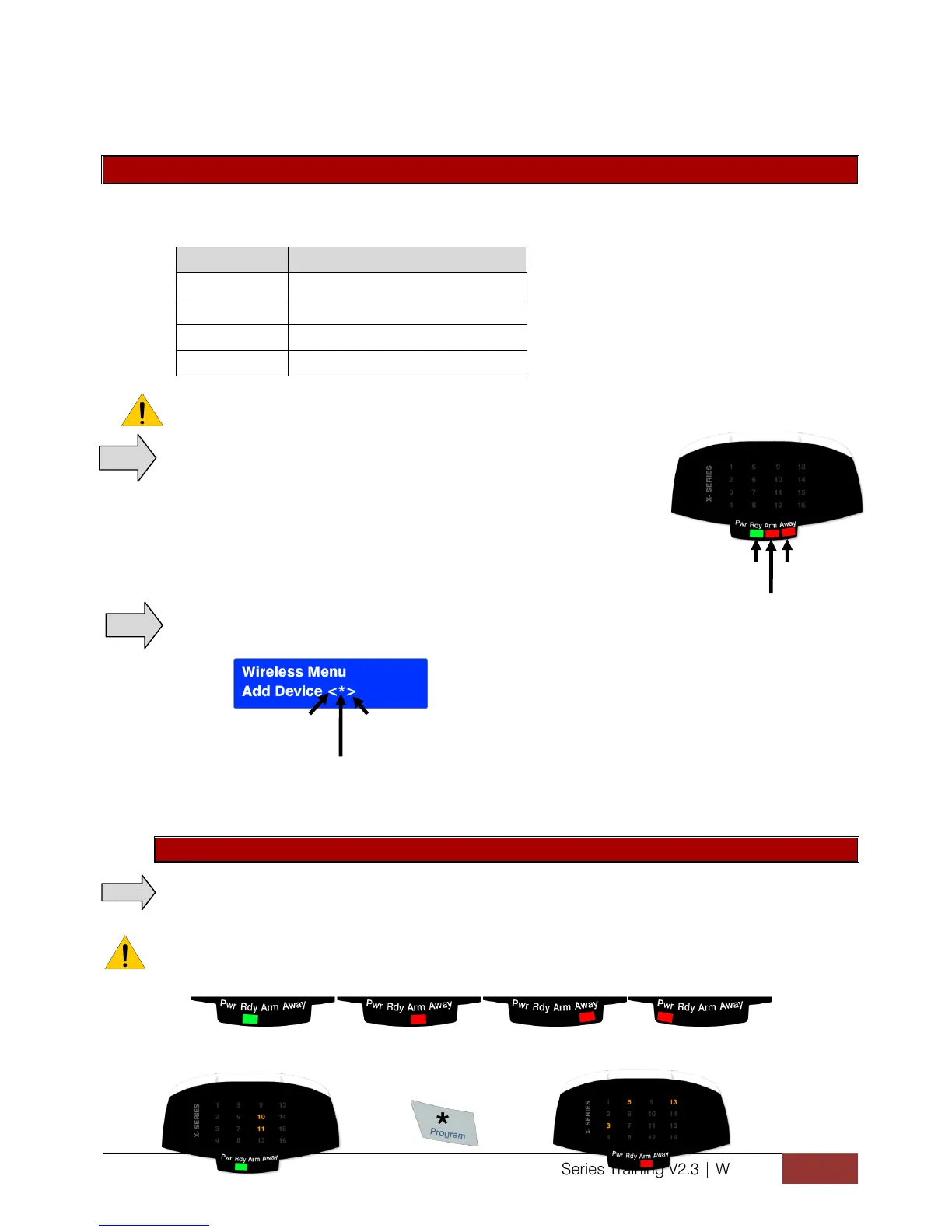

Location 260: Wireless Configuration
Location Type: Extended
Location 260 has a four sub locations listed in the table below:
Sub Location
Description
1
Add Wireless Device
2
Delete Wireless Device
3
Wireless Device Signal Strength
4
Supervision Interval Time
Note: Depending if you have an LED or LCD keypad will depend on the feedback you can expect
to receive while programming. The following instructions will be broken up into LED keypad
LED Keypad Instructions
Upon Location entry the user will notice the following:
a. Ready LED ON, Armed LED ON, Away LED flashing.
b. Menu system now only awaiting sub location selection.
i. User must enter [number][*] to advance into “sub menu”.
c. When entering sub menus, I.e. add wireless device or delete wireless device.
Zones that are wireless zones will be on.
d. [#] will return user to Installer menu location entry.
LCD Keypad Instructions
Upon location entry the following will be displayed
Scroll backwards using Scroll forward using
using the Medical key the Panic key
Press * key
to enter
[#] will return user to Installer menu location entry
Sub Location 1: Add Wireless Detector
Upon Sub menu entry the user will notice the following:
When working with more than 16 zones on an LED keypad to page through to the next 16 zones
press the [*] key.
Note: Each time a new page of zones are shown the Pwr, Rdy, Arm and Away LEDs will change
to show which zones are being displayed.
Zones 1 to 16 Zones 17 to 32 Zones 33 to 49 Zones 49 to 64
Example:
LED
LCD
On
On
Flashing
LED
