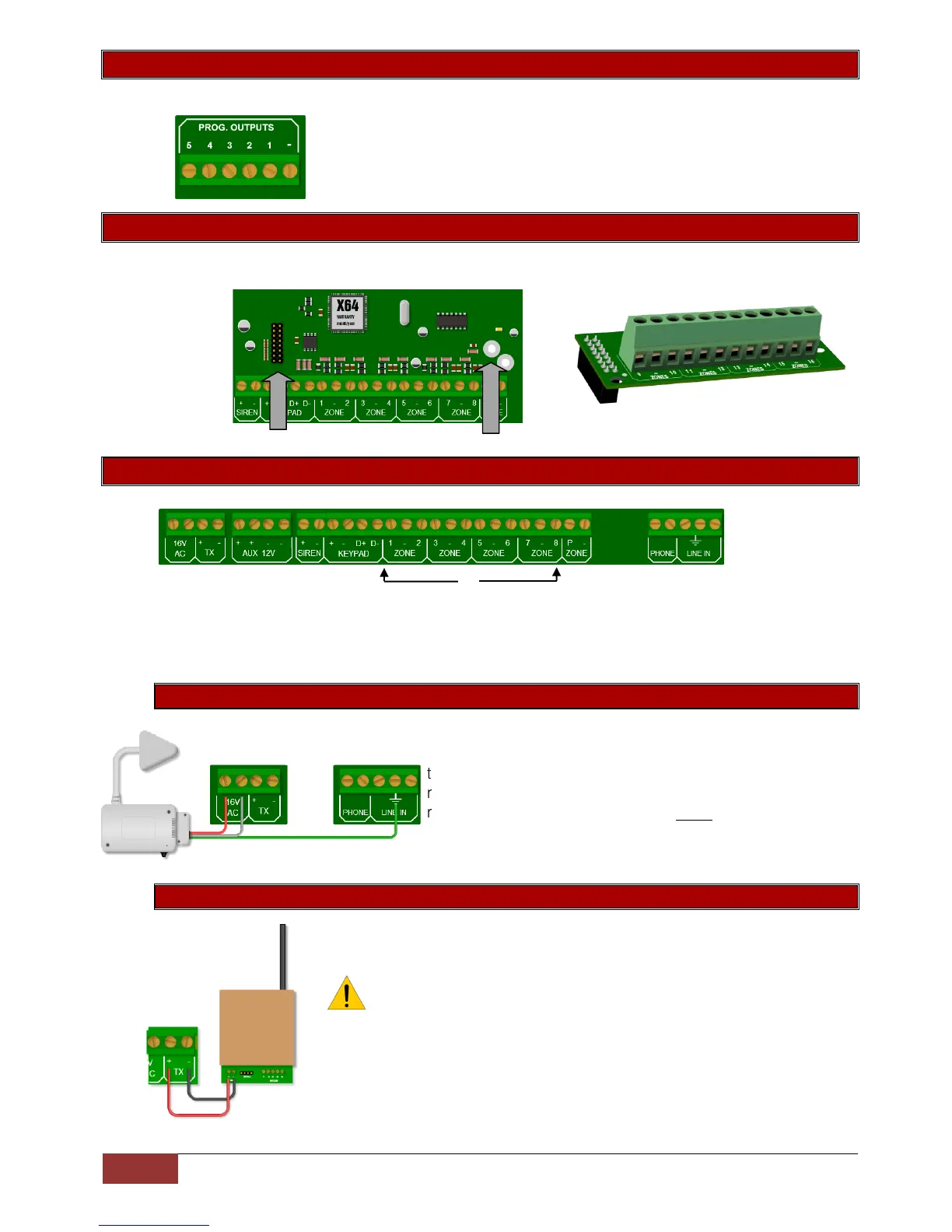

5. Outputs
Five positively triggered outputs that can supply 80mA of current.
6. Onboard expander connection
The X-Series can be expanded via expanders. Zones 9 to 16 are added by plugging the onboard
expander onto the PCB via this connector.
Onboard Expander
8 pin connect Standoff mounting hole
7. X-Series Connectors
The above figure shows how the X-Series connectors are laid out. Each connection is briefly discussed,
but more detailed information can be found at the end of the manual in appendix 1. Please note that
devices, especially between different manufacturers, are different and the manuals should be thoroughly
read and understood before attempting installation.
7.1 AC Power
The X-Series Alarm Panel requires 16V AC to be connected
to the AC connector on the board. The minimum
recommended transformer is a 16V 32VA, but the
recommended transformer is a 16V 40VA transformer.
7. 2 TX
The Tx connection can supply enough power for radios up to 15 watts.
NOTE: Please use cable with a minimum of 0.5mm copper core
depending on the distance between system and radio transmitter.
