PRODUCT INSTALLATION
iTDC
p.49
10 TABLE FOR IN/OUTPUT CHANGE DEPENDING ON
NUMBER OF DOOR
iTDC/iTDC-SR controls 2~4 doors and depending on number of door control, In/Output port
is changed.

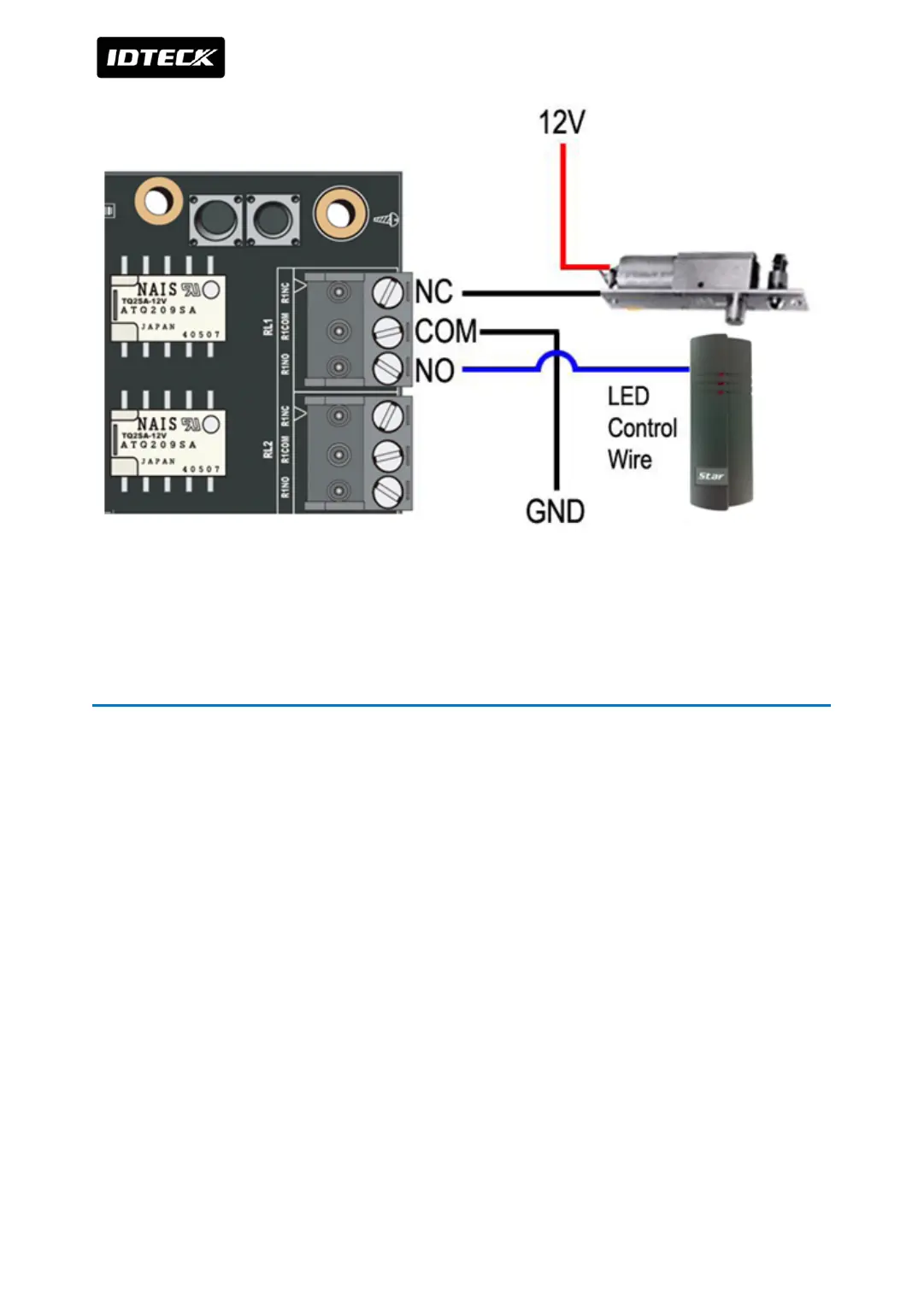

If 2 doors are controlled, iTDC/iTDC-SR main board is operated alone and to use 3~4 doors,
you have to use I/O board (EIO88). In the case of using 3, 4 doors, setting for number of door
control is allowed by Application Software. It can be set in ‘Controller Setting’ of ‘System
Menu’ from Application Software. (STARWATCH iTDC PRO I, II). For STARWATCH
STANDARD, it can be set in ‘Device Setting’ of ‘System Menu’. Please refer to more
information in software manual.
If LCD and KEYPAD are purchased, enter the ‘Master Mode F2’ then set number of door
control in ‘8. DOOR SETTING’
Please refer to more information in ‘8.3 Door Number Setting’
Table below is In/Output ports depending on number of door control.
