IET Labs DE-5000 User Manual

- 14 -

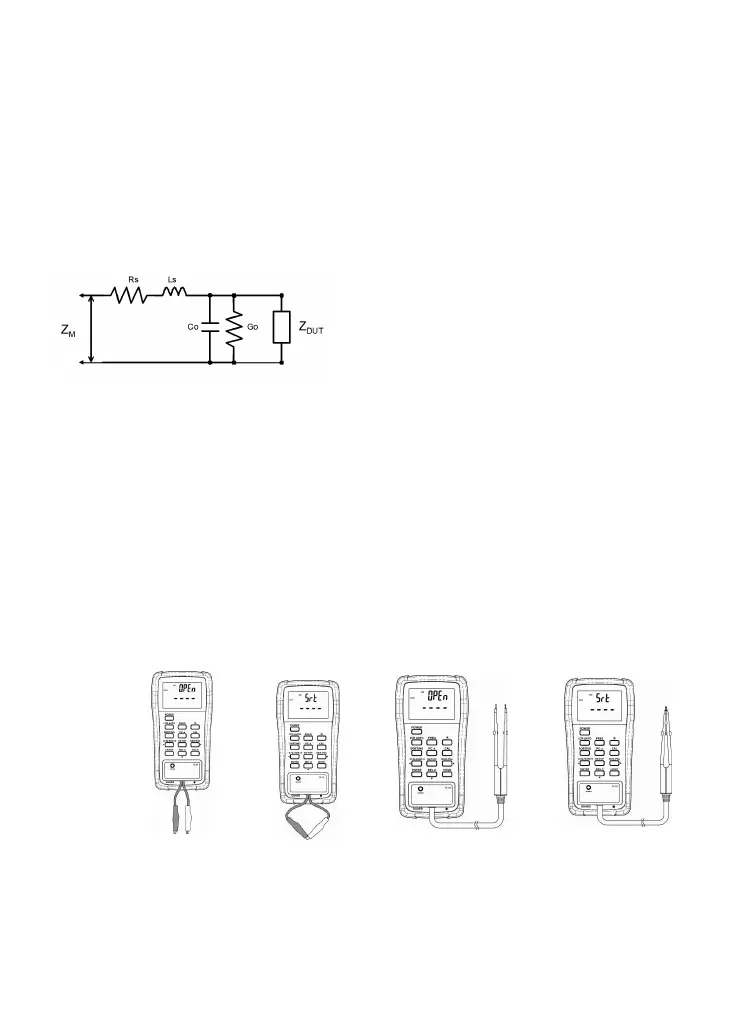

2.3. Zeroing the meter
Zeroing the instrument gets better accuracy for impedance
measurements. The purpose of this procedure is to reduce the
parasitic effect of the test fixture.
Z
M
is the total impedance measured on the device under test (DUT)
by a test fixture which has some parasitic impedance.
Z
M
= (
Rs
+ jω
Ls
) + ((
Go
+jω
Co
)-1 ||
Z
DUT
)
Z
DUT
is the target impedance user wants to measure. It is necessary
to use the zeroing process to cancel the effect of
Rs+
jω
Ls
and
Go+
jω
Co
.
Ex. Operation for open and
short calibration with TL-21
Ex. Operation for open and short
calibration with .TL-22
Open Cal.
Short Cal.
Open Cal. Short Cal.
