- 16 -
4.
Connect the test leads for form a short circuit.
5.
Press the
CAL
key again.

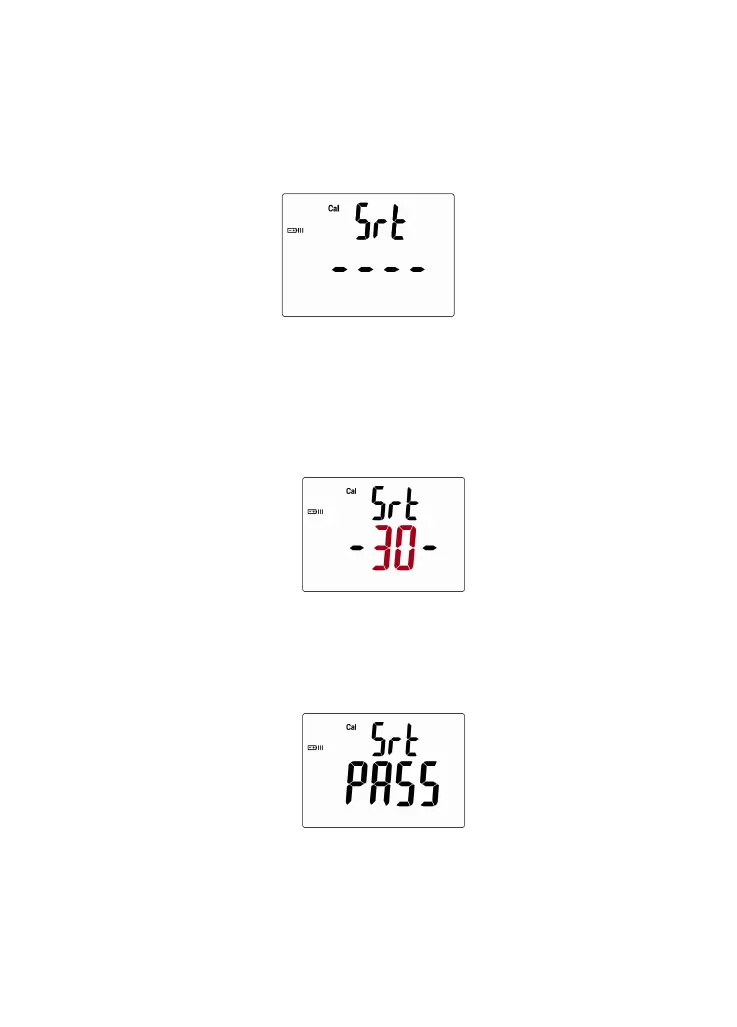

The monitor should display Srt as shown below.
6.
Press the
CAL
key one more time.
The unit should begin a countdown as it performs SHORT
calibration.
After the countdown is complete, the monitor should say PASS
as shown below. If it says fail, the procedure has to be restarted.
7.
Press the
CAL
key one more time to exit OPEN/SHORT
calibration mode.
