11
UK

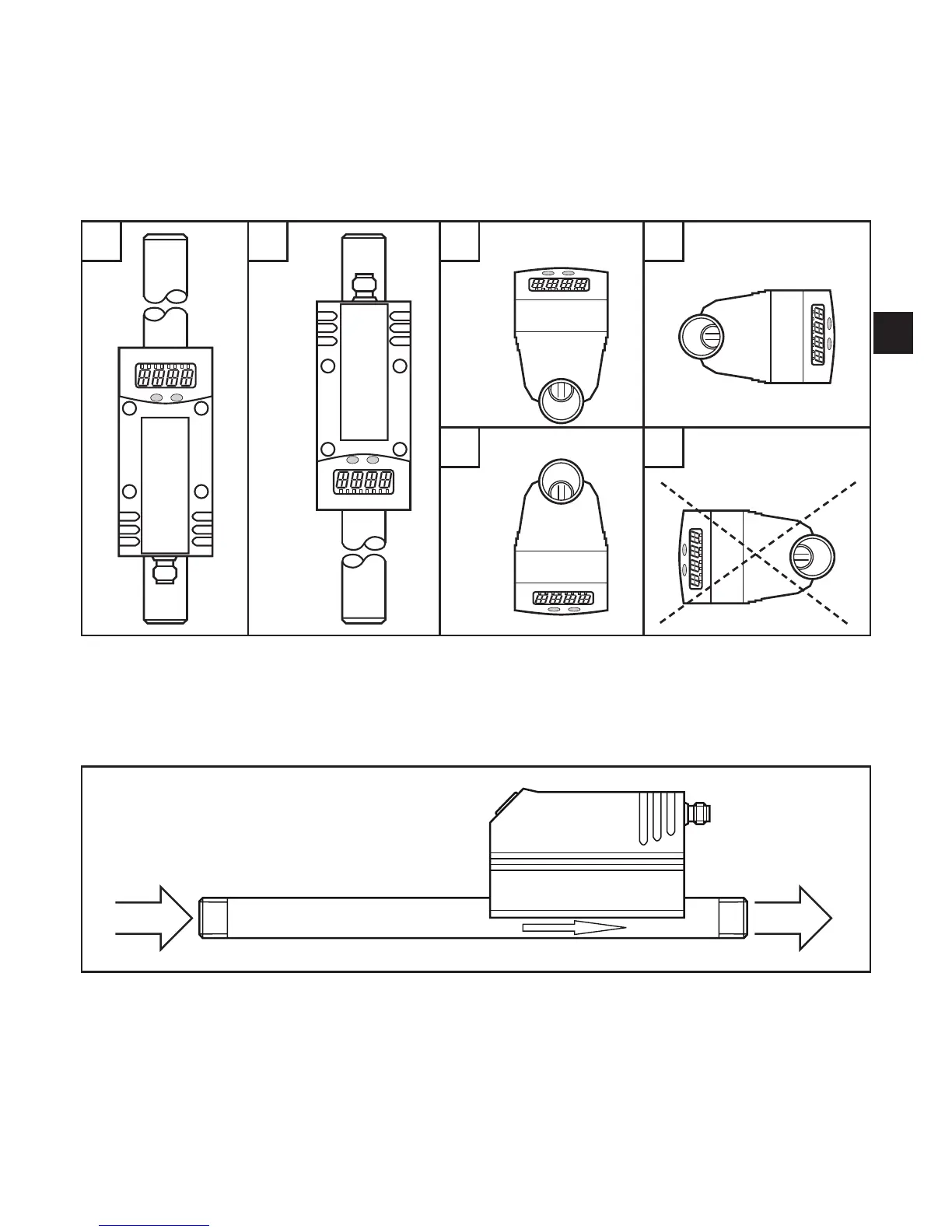

5.3 Installation position
• Permitted installation positions: pipe length vertical, any position (fig� 1, 2); pipe
length horizontal, unit vertical (fig� 3, 4), unit on side, pipe length left (fig� 5)�
• Avoid the installation position in fig� 6 (unit on side, pipe length right)� If the flow
rate is low, the specified measurement accuracy cannot be adhered to�
1 2 3 4
5 6
5.4 Installation in pipes
► Fit the unit in the pipe in accordance with the flow direction (arrow on the unit)
and tighten�
IN
OUT
