6 Electrical connection
The unit must be connected by a qualified electrician�
The national and international regulations for the installation of electrical
equipment must be adhered to�
Voltage supply according to EN 50178, SELV, PELV�
► Disconnect power�

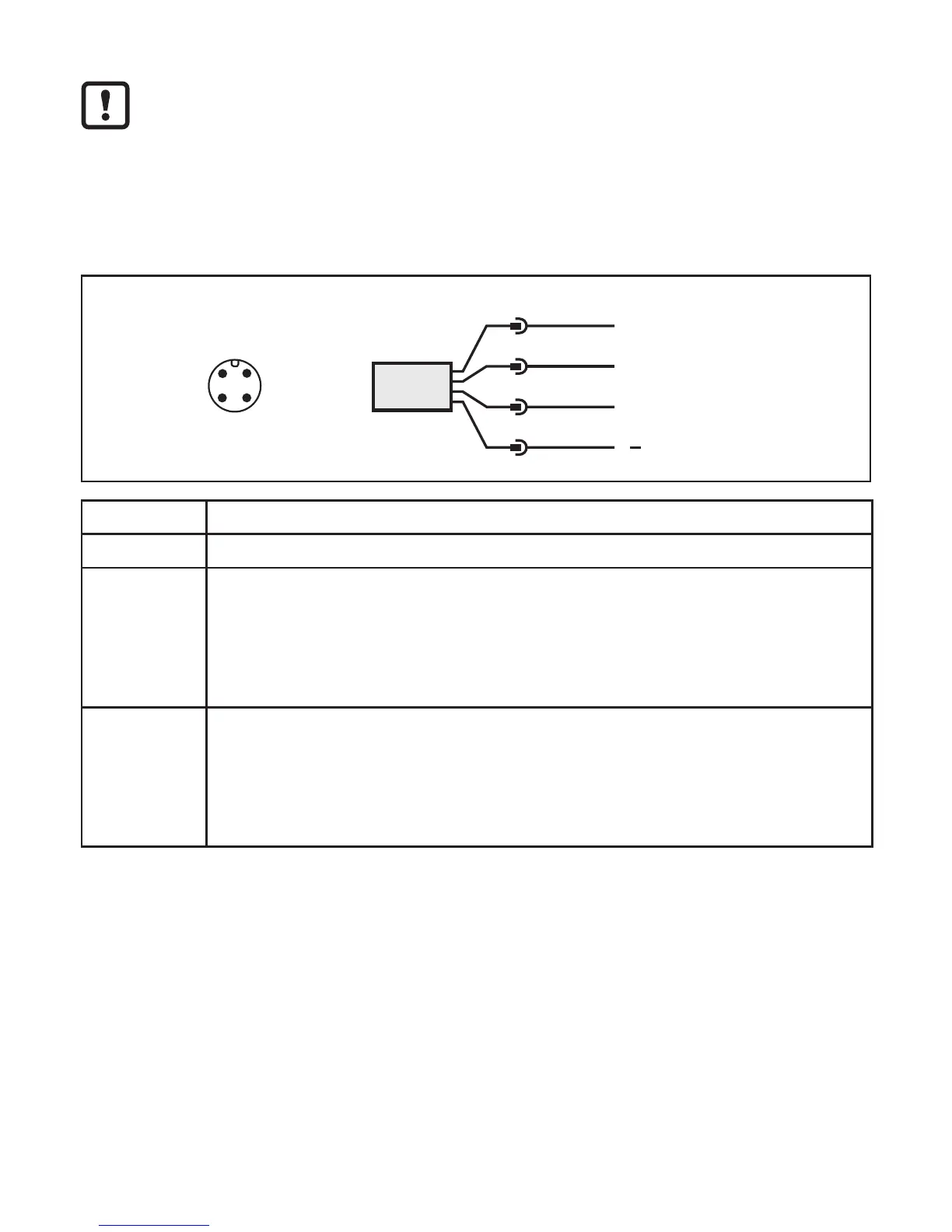

► Connect the unit as follows:
43
2 1
4
1
3
2
OUT2/InD
L
+
L
BN
BU
OUT1/IO-Link
WH
BK
Pin 1 Ub+
Pin 3 Ub-
Pin 4
(OUT1)
Switching signal: limit values for volumetric flow�
Switching signal: quantity meter reached preset value�
Pulses: 1 pulse every time the defined volumetric flow quantity is reached�
Data channel for bidirectional communication�
IO-Link�
pin 2
(OUT2/InD)
Switching signal: limit values for volumetric flow�
Switching signal: limit values for temperature�
Analogue signal for volumetric flow�
Analogue signal for temperature�
Input for signal "counter reset"�
Core colours of ifm sockets:
1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black)
