17
Address / bit
Function Description
4 --- Reserved
5 --- Reserved
6 Content inv The device found out that at least
one of the received output data
(→ 9.1 Output data) is
inconsistent.
7 PDout inv
The device confirms that the received
output data (→ 9.1 Output data) had
already been marked as invalid by the
transmitter.
4.3.
Examples

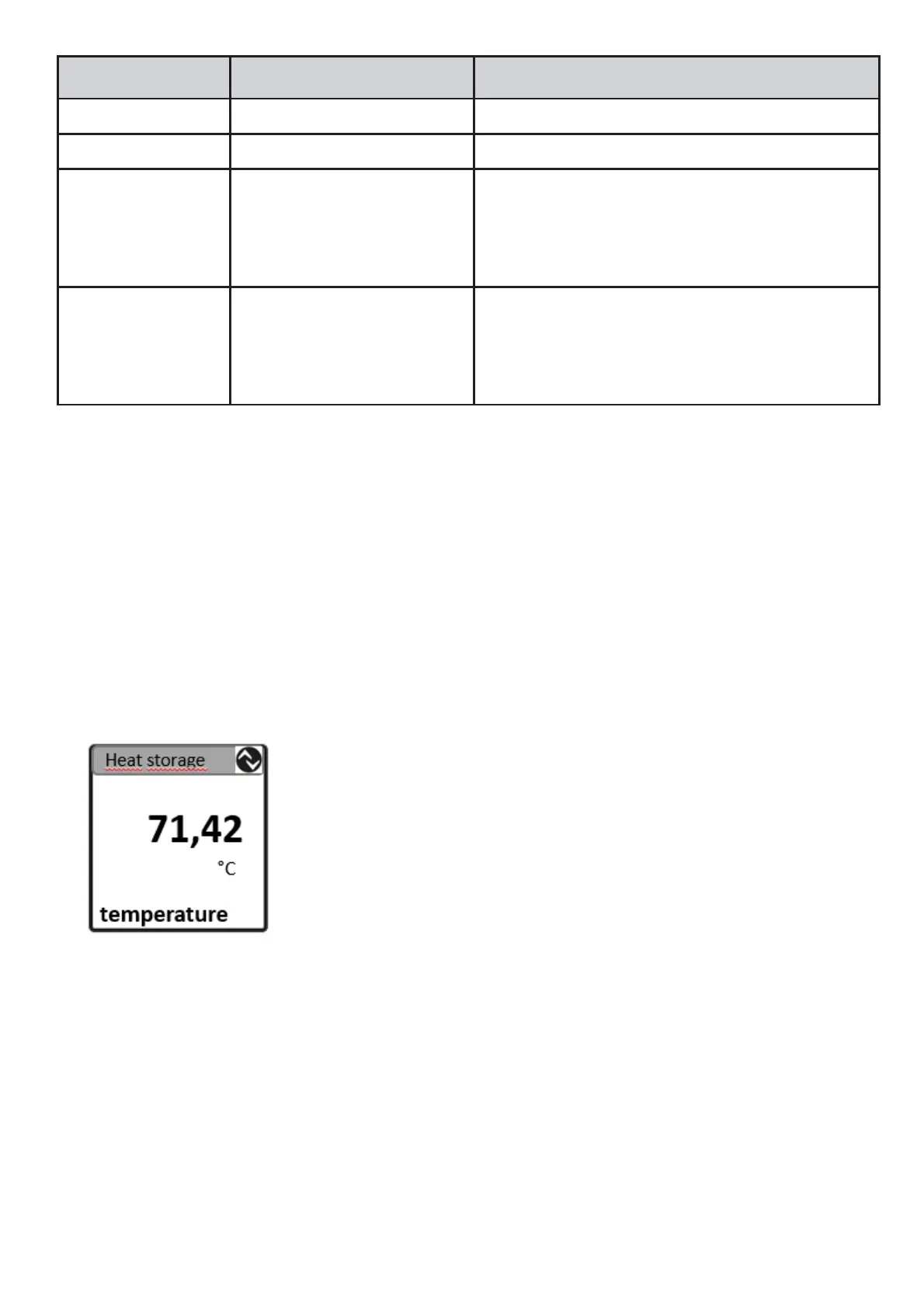

4.3.1. Example 1: display one process value
1.
Define unit, description text and number of decimal places
(index 80, 90 and 100 → 3.2).
2.
In the output data stream, set the layout to 1 (byte 13 → 4.1).
3.
As an option, define a text colour (byte 8 → 4.1).
4.
Write the display value as Integer16, starting at byte 0 in the
output data (→ 4.1).
