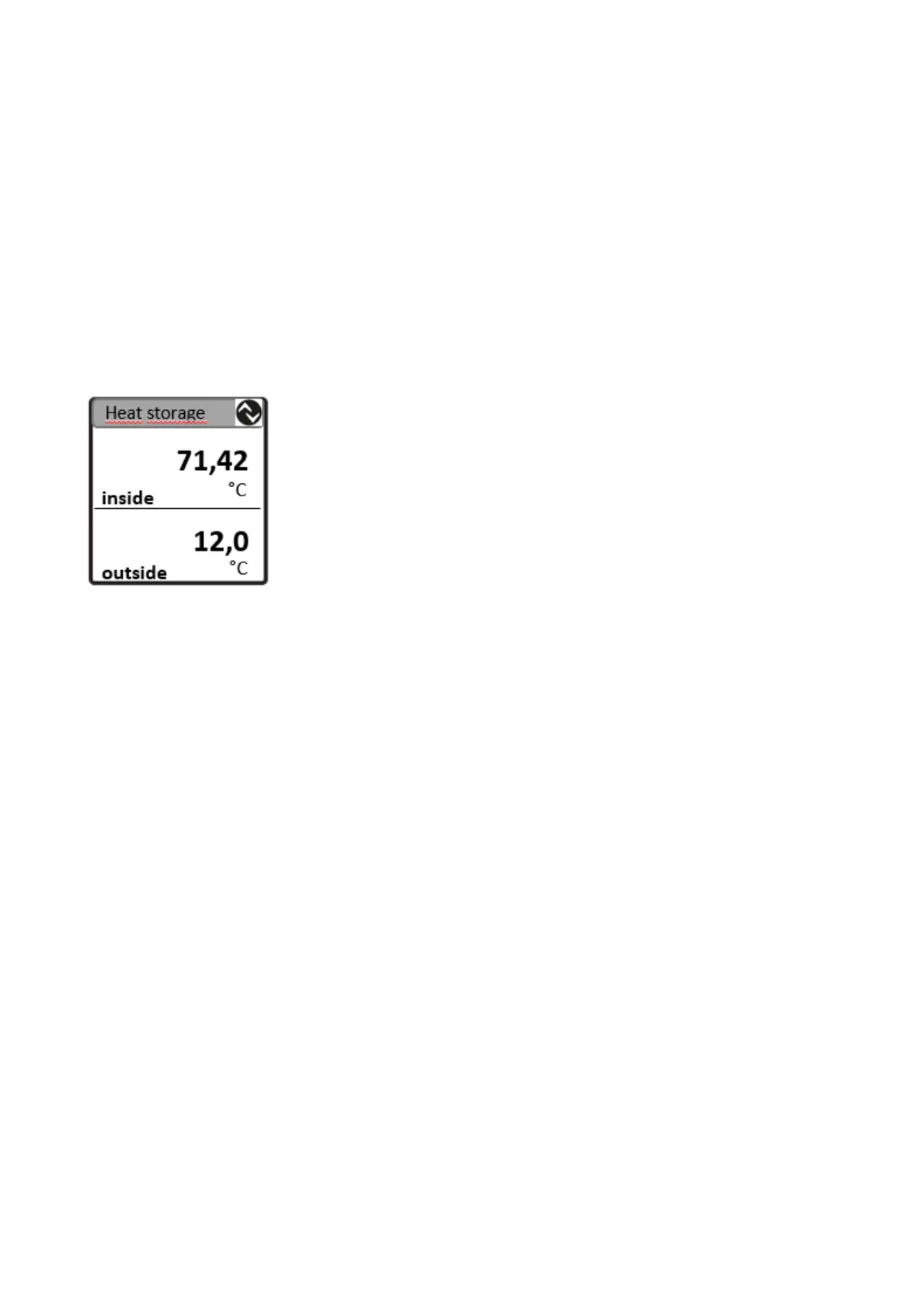

4.3.2. Example 2: display two process values
1. Define unit, description text and number of decimal places
(index 80, 90 and 100 → 3.2)
2. In the output data stream, set the layout to 2 (byte 13 → 4.1).
3. As an option define the text colours (byte 8 → 4.1).
4. Write both display values as Integer16, starting at byte 0 in the
output data (→ 4.1).
