If there is no explicit module on the master used it is possible to use
an existing module with a wider interface.
1.

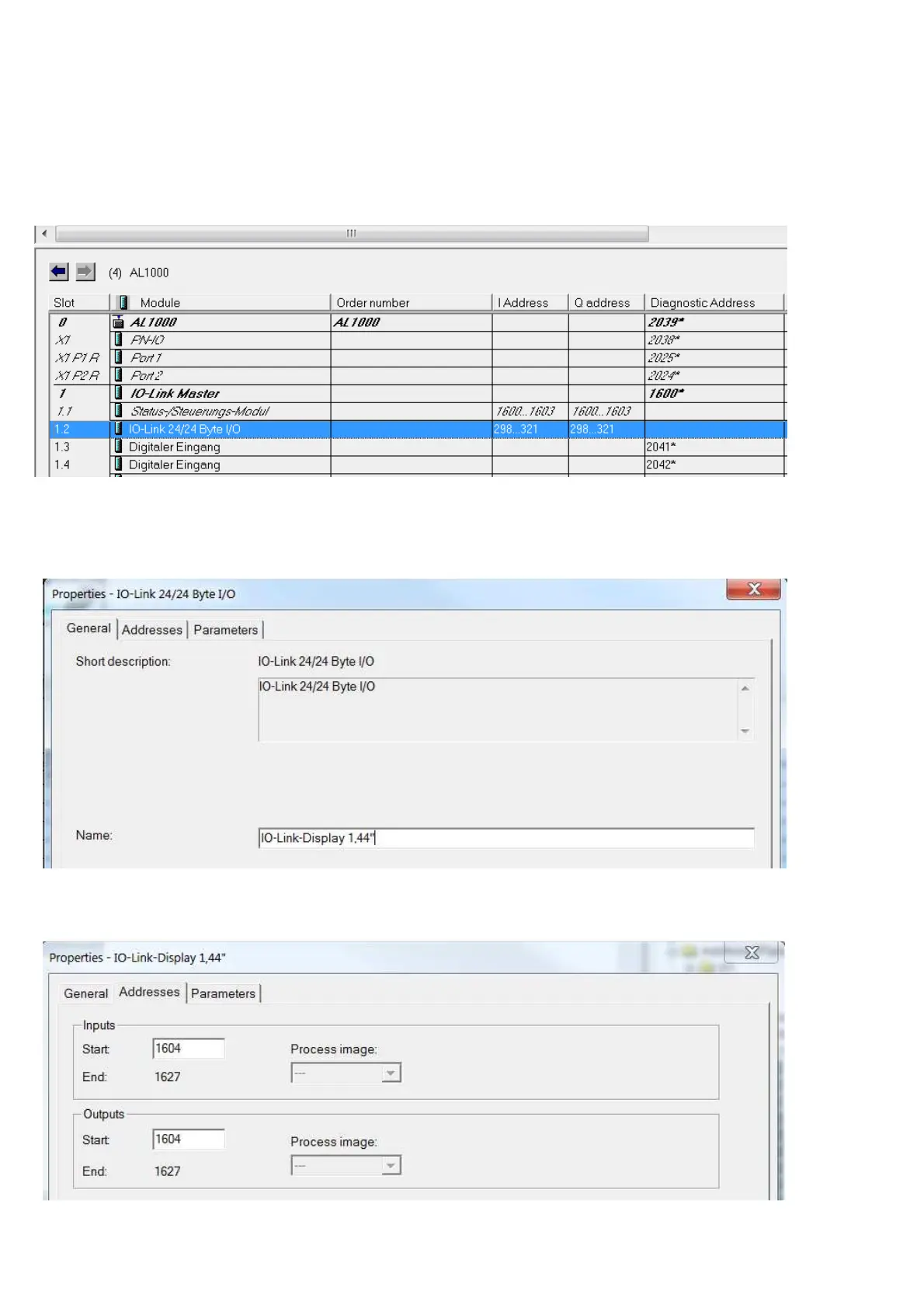

Drag, for example, a 24/24-byte I/O module to the master port
to which the IO-Link Display is to be connected.
2.
Double click on the module:
3.
Enter name and comment as an option:
4.
Enter addresses for input and output ranges:
