ifm Device Manual SmartSPS AC14 with EtherNet/IP interface (AC1421, AC1422), Firmware 3.1.2 2015-11-30
Operation Page view
>

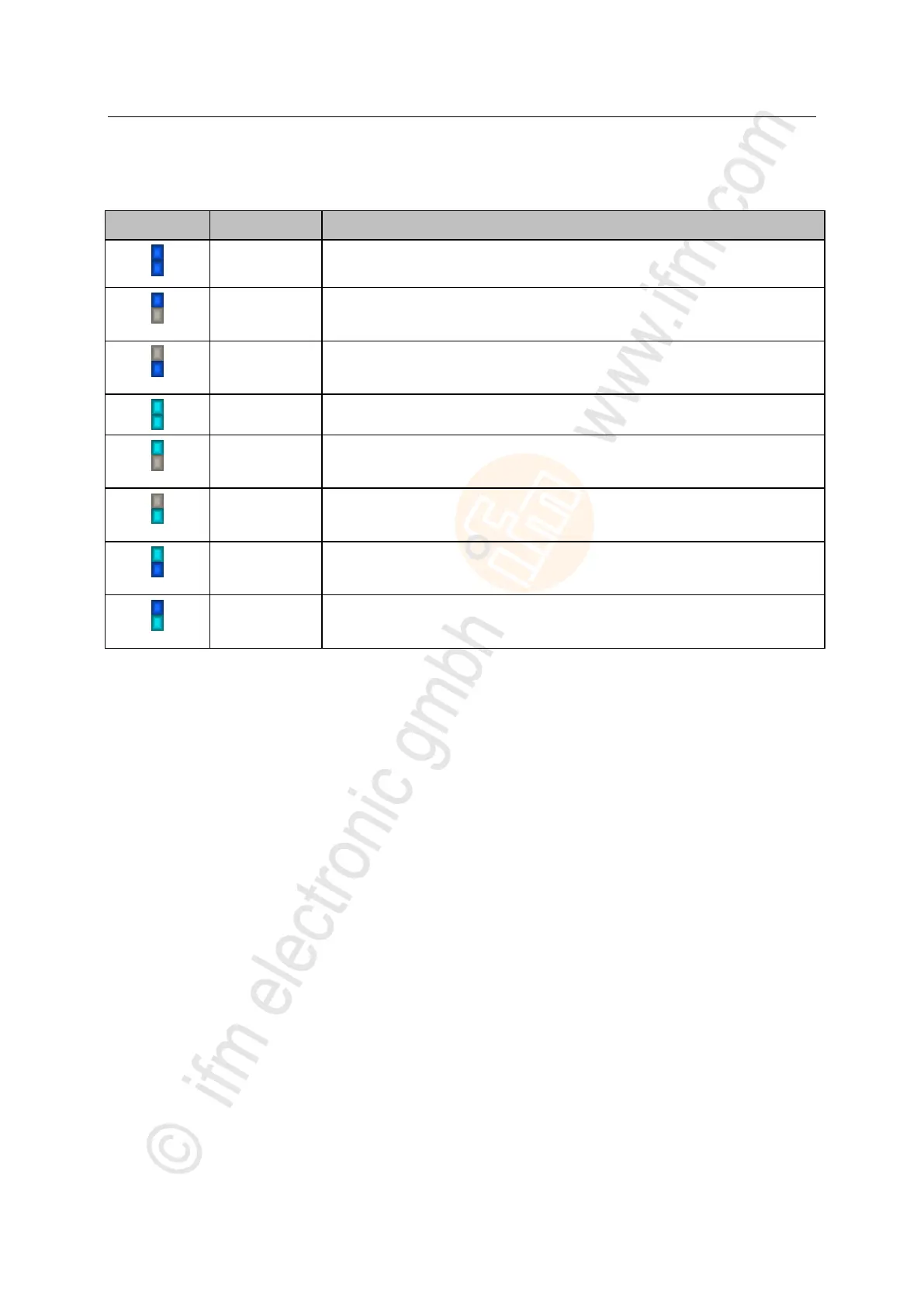

Meaning of the colour combinations
11240
Symbol
Colour
Meaning
blue
blue
Slave to be addressed is an A/B slave:
A and B addresses are free.
blue
grey
Slave to be addressed is an A/B slave:
– A address is free.
– B address is used.
grey
blue
Slave to be addressed is an A/B slave:
– Address is used.
– B address is free.
turquoise
turquoise
Slave to be addressed is an A/B slave:
A and B addresses are free, but already used in a stored projection.
turquoise
grey
Slave to be addressed is an A/B slave:
– Address is free, but already used in a stored projection.
– B address is used.
grey
turquoise
Slave to be addressed is an A/B slave:
– Address is used.
– Address is free, but already used in a stored projection.
turquoise
blue
Slave to be addressed is an A/B slave:
– Address is free, but already used in a stored projection.
– B address is free.
blue
turquoise
Slave to be addressed is an A/B slave:
– A address is free
– Address is free, but already used in a stored projection.
