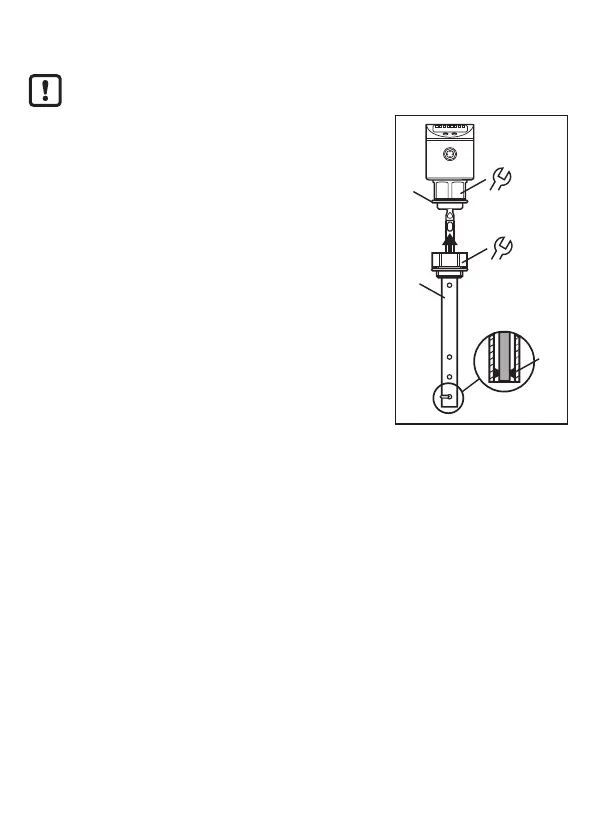

6.2.2 Installation of the coaxial pipe
This subchapter is only relevant if the unit is to be operated with a coaxial probe�
The coaxial pipe and the rod must be of the same end length� The coaxial
pipe can be shortened (→ 6.3.2)�
► Screw the rod to the unit and tighten it�
Recommended tightening torque: 4 Nm�
► Slide the sensor seal (A) onto the thread�
► Slide the coaxial pipe (B) onto the rod� Carefully
centre it and carefully move the rod through the
centring piece (C) (for lengths > 140 cm through
both centring pieces) of the coaxial pipe� Do not
damage the centring pieces�
► Screw onto the sensor thread and tighten�
A
C
B
32
32
