7 Electrical connection
The unit must be connected by a qualified electrician�
The national and international regulations for the installation of electrical
equipment must be adhered to�
Voltage supply according to SELV, PELV�
► Disconnect power�

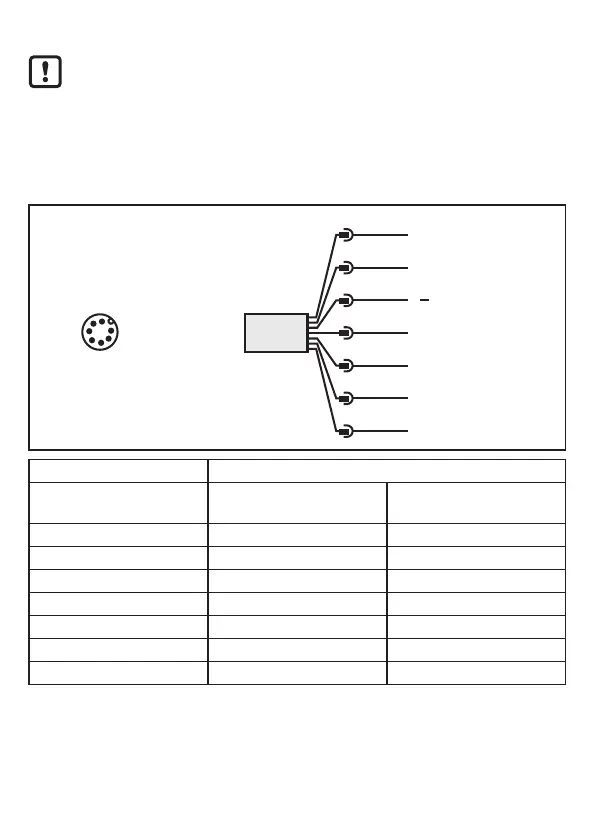

► Connect the unit as follows:
Out 4
3
4
2
5
6
Out 1 / IO-Link
Out 3
L
+
1
n.c.
7
Out 2
L
6
2
1
4
5
7
3
Pin / connection Core colours
for ifm sockets
for sockets according to
DIN 47100
1 L+ brown white
2 OUT2 (switching output 2) white brown
3 L- blue green
4 OUT1 / IO-Link black yellow
5 OUT3 (switching output 3) grey grey
6 OUT4 (switching output 4) pink pink
7 = not used violet blue
Connector 8-pole on connector 4-pole available as accessories:
- order no� E11228 (Y connection cable)
- order no� E11627 (T splitter box)
