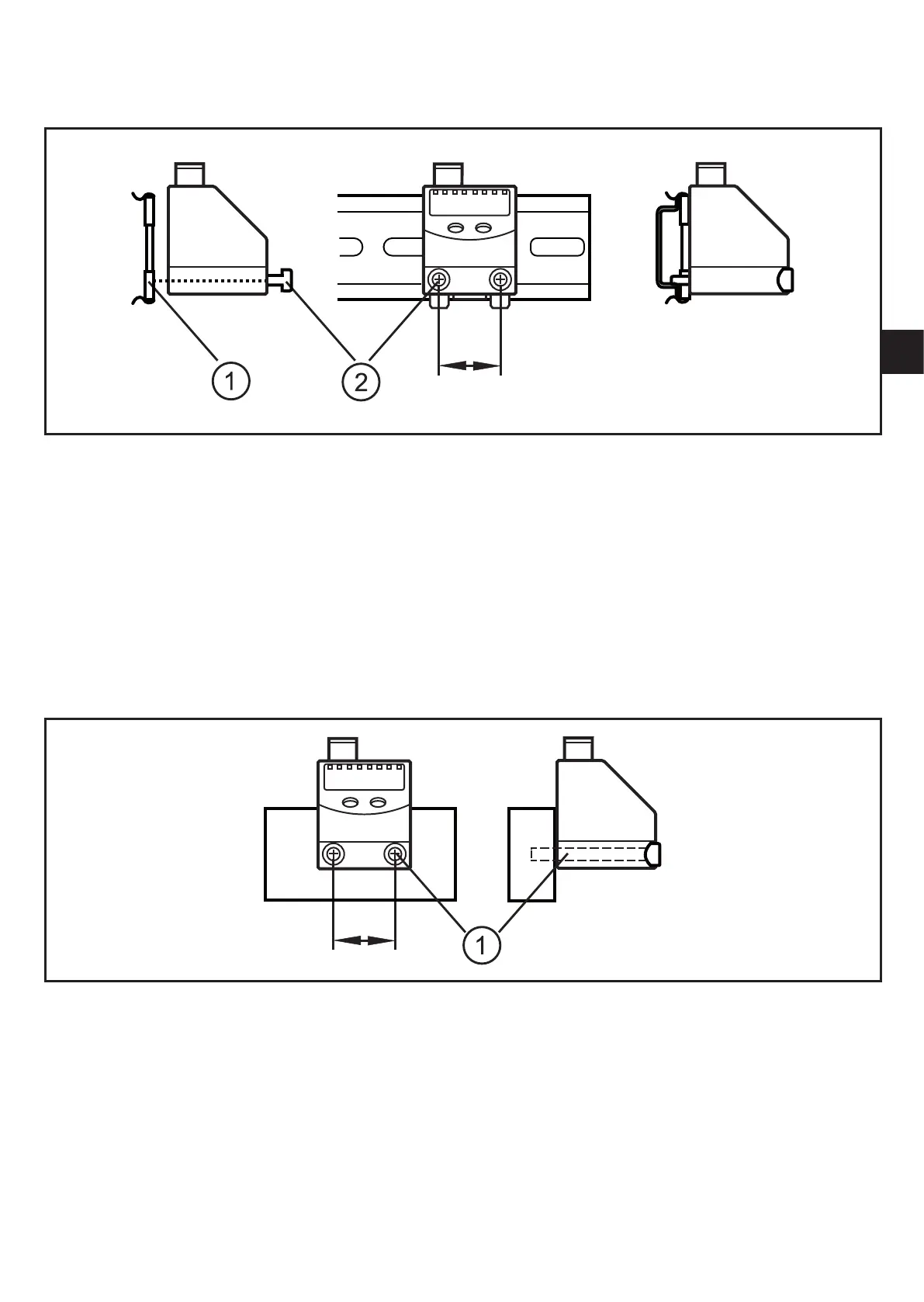

5.2 DIN rail mounting
DIN rail TH 35-7�5 to EN 60715
20
► Fix the mounting clip (1) with the screws M4 x 35 (2) to the flange� Maximum
tightening torque: 0�5 Nm�
► Hook the unit into the DIN rail and clip it into place�
Removal:
► Lever out the mounting clip with a screwdriver at the top or at the bottom and
remove the unit�
5.3 Rear panel mounting
20
► Fix the unit with 2 screws M4 x 35 (1) (not included) to the rear panel�
Maximum tightening torque: 0�5 Nm�
