NOTE:Whenusingthe1215PSACadapter/powersupplythechargerisprotectedto
preventdamageifthealligatorclipsattheendoftheinputpowerleadstouch.
However,pleasetakecaretoensurethatthealligatorclipsdonotcauseshortingofthe
LiPoflightbattery,ACadapter/powersupply,
etc.bykeepingthemclear.

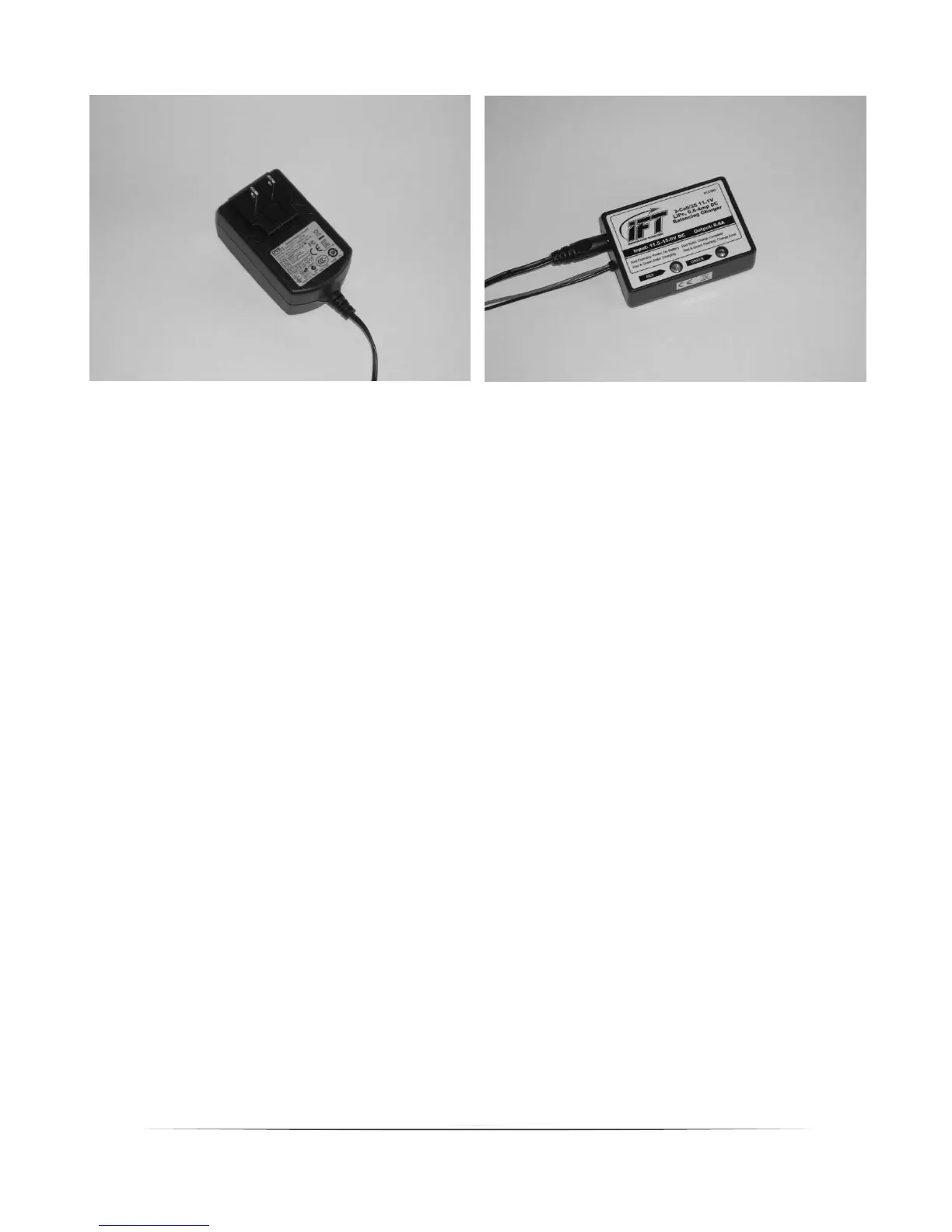

PLACETHE308CCHARGERONAFLAT,SMOOTHANDHEATRESISTANTSURFACE.
It’simportantthatairisabletocirculatearoundthecaseofthechargerduringthe
chargingprocessinordertokeepitfromoverheating.DONOTplacethechargeron
carpetedorothersimilarsurfacesthat
maypreventairfromcirculatingaroundall
sidesofthecharger.Also,DONOTplacethechargerindirectsunlightbefore,during
orafteruse.
Connectthewhite4pinconnectorfrombattery(alsotypicallyreferredtoasthe
‘balanceconnector’)tothematingconnectoronthecharger.YOUMUSTBECAREFUL
TOENSUREPROPERPOLARITYBEFOREMAKINGTHECONNECTION.Referencethe
markingsonthechargerandensurethattheblackcolornegative/groundwirelead
is
orientedsoit’stowardtherighthandsideoftheconnectoronthecharger.And
althoughtheconnectorsare‘keyed’tominimizetheriskofareversepolarity
connection,ifyouforcethemitispossibletomakeconnectionwithincorrectpolarity
potentiallycausingdamagetothebatteryand/orcharger.
Whentheconnectorsare
properlyalignedforcorrectpolarity,connectingthemshouldrequireonlyamoderate
amountofpressuretoachievethe‘click’thatindicatesasecureconnection.
