IFT Evolve 300 CX - Gyro Gain Trimmer Pot

To Next Page

To Previous Page

43

NOTE:Thereisasmallholelocatedundertheorange‐colored‘stripe’decalappliedtothe

windshieldthatcanbeusedtoaccesstheproportionalmixtrimmerpotwithoutremovingthe

body.Startingatthetopedge,slowlyandcarefullypullthedecalawayfromthewindshield

untilyoureachthe

hole.



Also,youmustusethepropersizeandtypeof‘straight’bladescrewdriver(preferablywitha

plastictip)tocarefullyturn/adjustthepot.Useofanimpropersizeandtypeofscrewdriver

and/ortoomuchforcecandamagethetrimmerpot.



QUICKTIP:Asthemotorsheatup

andthebattery’soutputvoltagedecreasesthroughout

theflight,itmaybenecessarytoadjusttheruddertrimleverposition/settingslightlyto

keepthenoseofthehelicopterfromdriftingtotheleftorright.Thesesmalladjustments

canbemadeusingtheruddertrimleveranddonottypicallyrequire

additionaladjustment

oftheproportionalmixtrimmerpot.



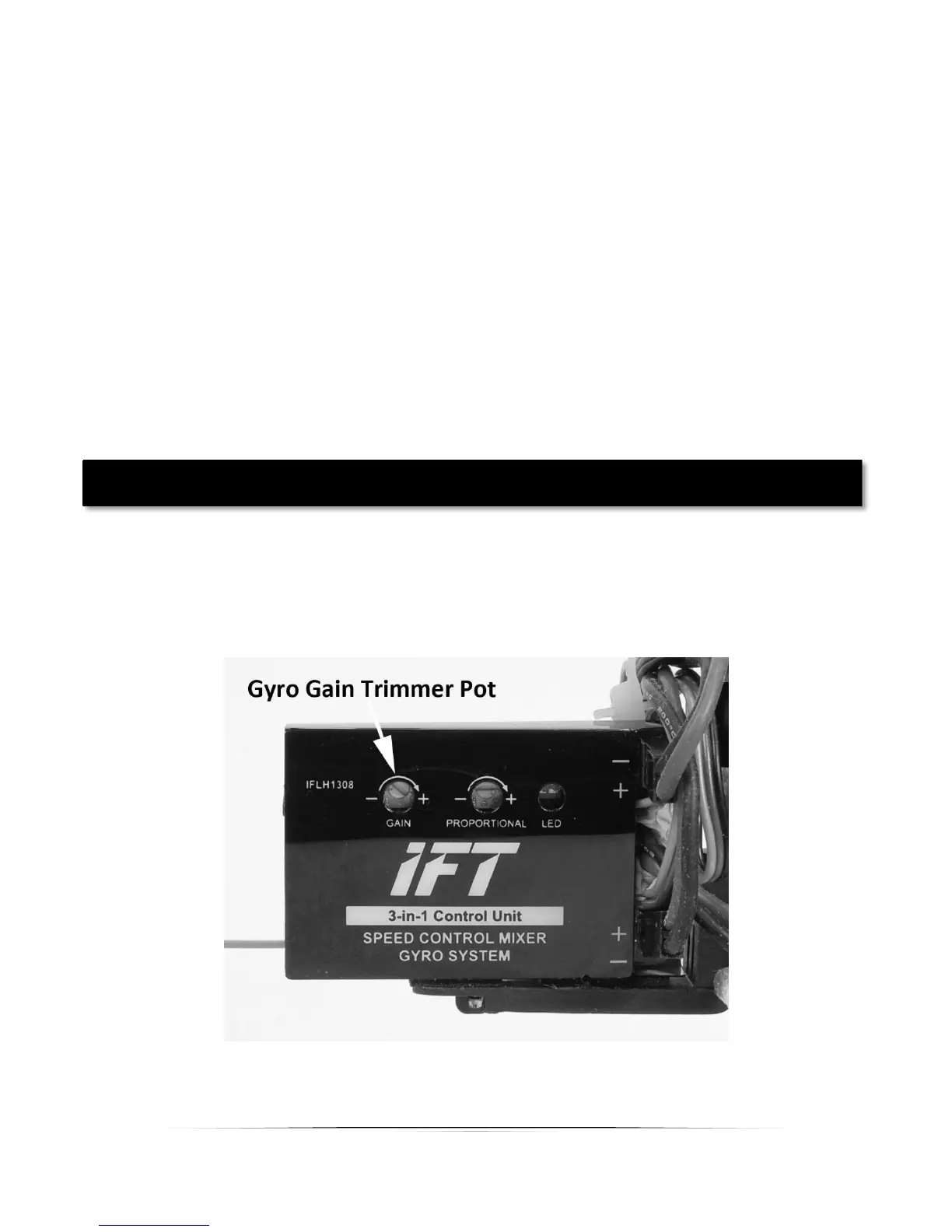

The3‐in‐1controlunitisequippedwitha‘GAIN’trimmerpotthatadjuststhegainvaluefor

thegyrothathelpstokeepthenose/tailofthehelicopterstraightandonheadingduring

flight.Thegoalisto

findthehighestgainvalueatwhichthenose/tailofthehelicopterdoes

not‘twitch’quicklyfromsidetosideinallareasofflight.



ro Gain Trimmer Pot
