English
8

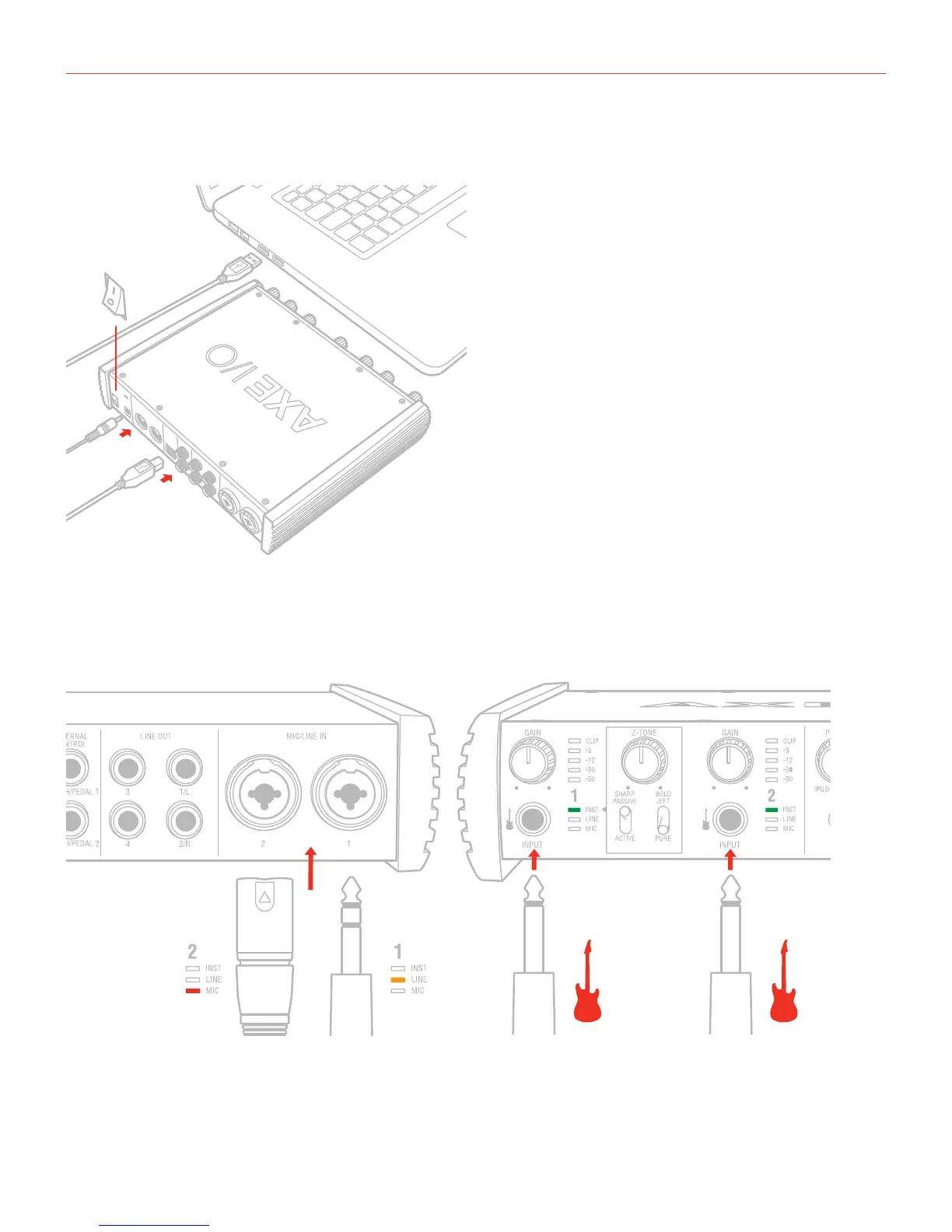

2. Connect the AXE I/O to your computer with the supplied USB cable.
3. Connect the supplied PSU to the AXE I/O and switch on the unit
ON
3
2
1
4. You can connect microphones or line level signal to the back combo XLR inputs 1 and 2, or instrument
signal to the front Jack 1/4” Instrument inputs 1 and 2.
MIC / LINE IN
INSTRUMENT
IN

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the IK Multimedia AXE I/O and is the answer not in the manual?

IK Multimedia AXE I/O Specifications

General IconGeneral
TypeAudio Interface
Number of Channels2
ConnectivityUSB
MIDI I/OIn/Out
Sample RateUp to 192 kHz
Resolution24-bit
USBUSB 2.0
OS Requirements - PCWindows 10 or later
Form FactorDesktop
Z-Tone Impedance CircuitYes
Direct MonitoringYes
Phantom PowerYes
Software IncludedT-RackS 5
OS Requirements - MacmacOS 10.13 or later
Dimensions8.5 x 5.5 x 2.1 inches
