When connecting IK Multimedia Double Footswitch with a 1/4” TRS cable
only output #1 has to be used as both switches signal is carried by this jack.
Output #2 will remain unconnected.
A conveniently short 1/4” TRS cable is included in the box with the Dual
Footswitch you can purchase from IK Multimedia.
If you use a third-party Dual Footswitch or two separated Footswitches

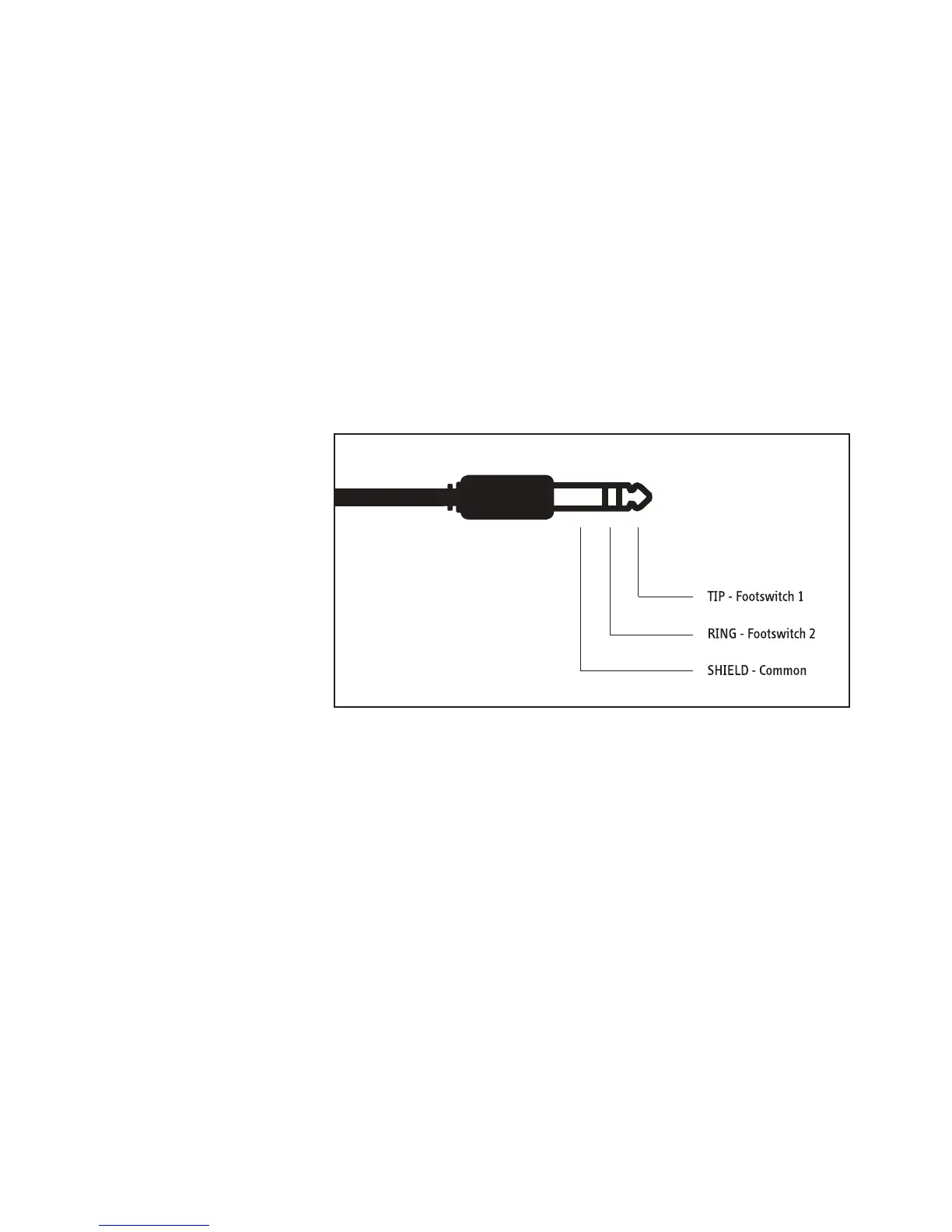

please follow the StealthPedal TRS Dual Footswitch wiring (figure 3.11).
figure 3.11
Note: if you use a third party single Footswitch you can connect it by using
its regular 1/4” TS connector, in this case you’ll only be able to use External
Footswitch #1 to control your software parameters.
