3 - Setups and Connections
34
StealthPedal
™
CS
External Dual Footswitch

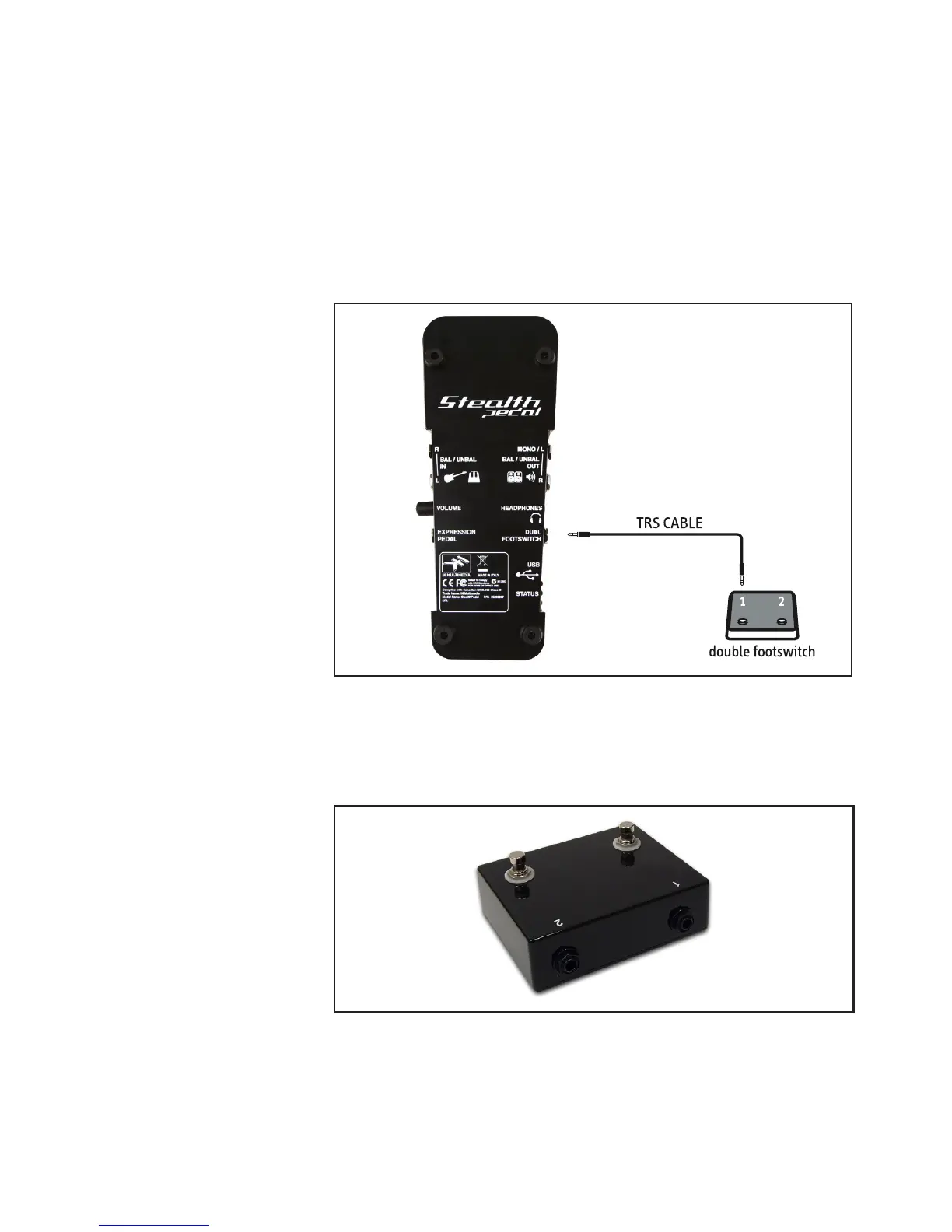

You can connect an external Dual Footswitch to the Dual Footswitch 1/4” TRS
Jack (figure 3.11).
figure 3.11
Note: You may use a third-party Dual Footswitch or two Single Footswitches,
or the one available for purchase from IK Multimedia, made specifically for
use with your StealthPedal (figure 3.12).
figure 3.12
If you use the IK Multimedia Dual Footswitch you will just need a single, 1/4”
TRS (or “stereo” jack) to connect the Dual Footswitch to SteahPedal.
Connect output “1” of the IK Multimedia Dual Footswitch to “Dual Footswitch”
