IKA ROTAVISC - Operator Panel and Display; Control Elements Explanation; Working Screen Symbols

14 15
2.
1.
10

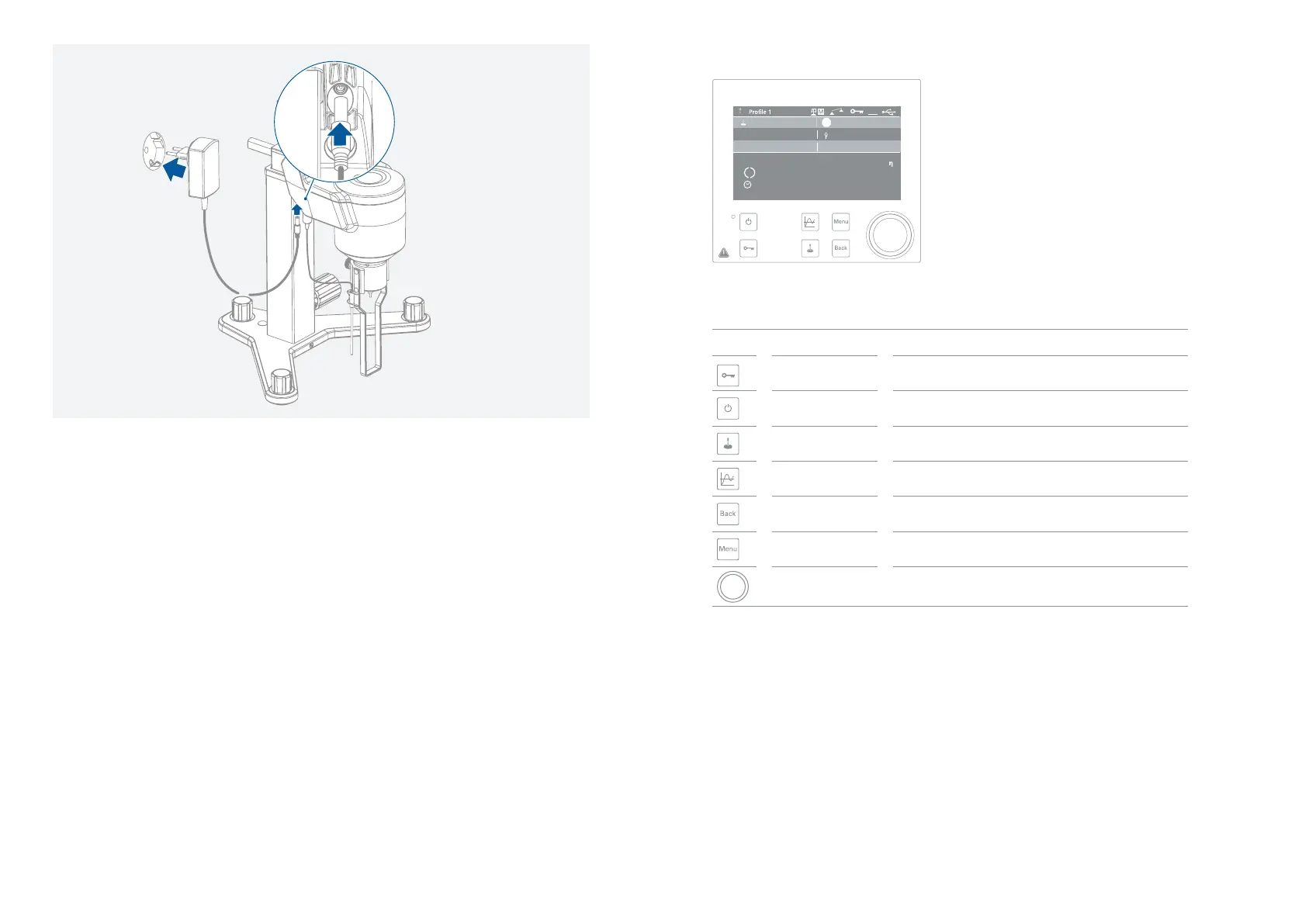

Operator panel and display
Button Designation Function
Lock button Lock / Unlock buttons and control knob
On / Off button Switch on / off device�
Spindle button Enter spindle search screen menu directly
Graph button Enter profile graph menu directly
Back button Return to previous screen
Menu button
Touch it once: Enter main menu screen
Touch it a second time: Back to working screen�
Control knob
(Rotating /Pressing)
Start / Stop the motor for measuring pressing the knob in working screen�
Change the speed by rotating the knob in working screen�
Change the menu setting / value in menu screen�
/// Explanation of the control elements:
τ
None
SP-4
Stop
0
mpa.s
rpm
n
0.00
00:00:00 0.0
%
M
PC
T
20.0
ºC
ρ
1.000 g/cm
3
DIN-
0.00
Pa 0.0 1/s
