5. Operation
5.6 Display Setting Screen (main)
This screen is used to make the input signal display aspect ratio, horizontal and vertical
display positions and sizes, and other settings.

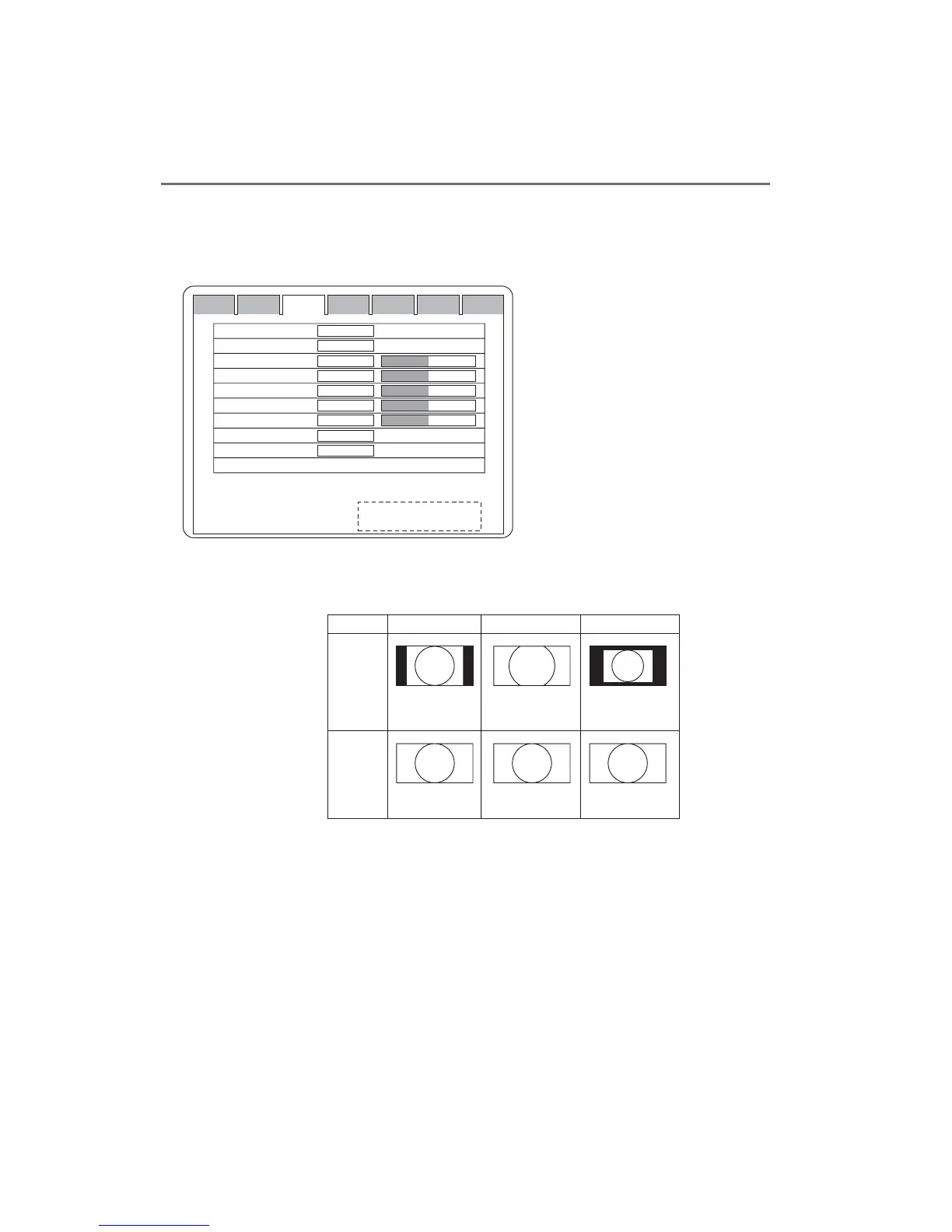

Screen display
䂾
Aspect
Over Scan
H.Position
V.Position
H.Size
V.Size
Clock
Phase
AUTO
UNDO
Normal/Full/Clear
OFF/10%/20%
-200 - +200
-200 - +200
-200 - +200
-200 - +200
0 - 100
Auto/1-48
Cancel/ADJ
Normal
OFF
0
0
0
0
50
Auto
Cancel
Status User Display Image Color Memory P-Pre
IN1: CH name - Signal name
IN2: CH name - Signal name
Switch behavior description
Display setting screen description (main)
• Aspect: Used to switch the video signal aspect ratio from Normal, Full and
Clear. The switchable types depend on the type of input signal.
1440
㬍
1080 display
Black zones on
both sides
1920
㬍
1080 display
HD
NTSC/PAL
Normal
1920
㬍
1080 display
Cut off at top
and bottom
1920
㬍
1080 display
Full
720
㬍
540 display
1920
㬍
1080 display
Clear
• Over Scan: Used to select the display size with an overscan of 10% or 20%.
• H/V. Position: Used to adjust the horizontal and vertical positions onscreen.
Move toward the plus side to shift the screen to top right.
Move toward the minus side to shift the screen to bottom left.
• H/V. Size: Used to adjust the horizontal and vertical sizes onscreen.
Move toward the plus side to enlarge the display size.
Move toward the minus side to reduce the display size.
• Clock: Adjusts the number of sampled dots for analog signals other than
VIDEO/S-VIDEO and DVI signals.
Increase the setting to get the sampling frequency higher. Decrease
it to get the sampling frequency lower.
Make this adjustment if vertical stripes or noises occur.
