• Phase: Adjusts the sampling point for analog signals other than VIDEO/S-
VIDEO and DVI signals.
Make this adjustment if the rising edge of characters and the like
look blurry or fine patterns suffer from noises.
• AUTO: Automatically adjusts the display position and the size, the number
of sampled dots, and the sampling point, depending on the input
signal.
5.7 Display Setting Screen (sub)
This screen is used to make the input signal display aspect ratio, horizontal and vertical
display positions and sizes and other settings.

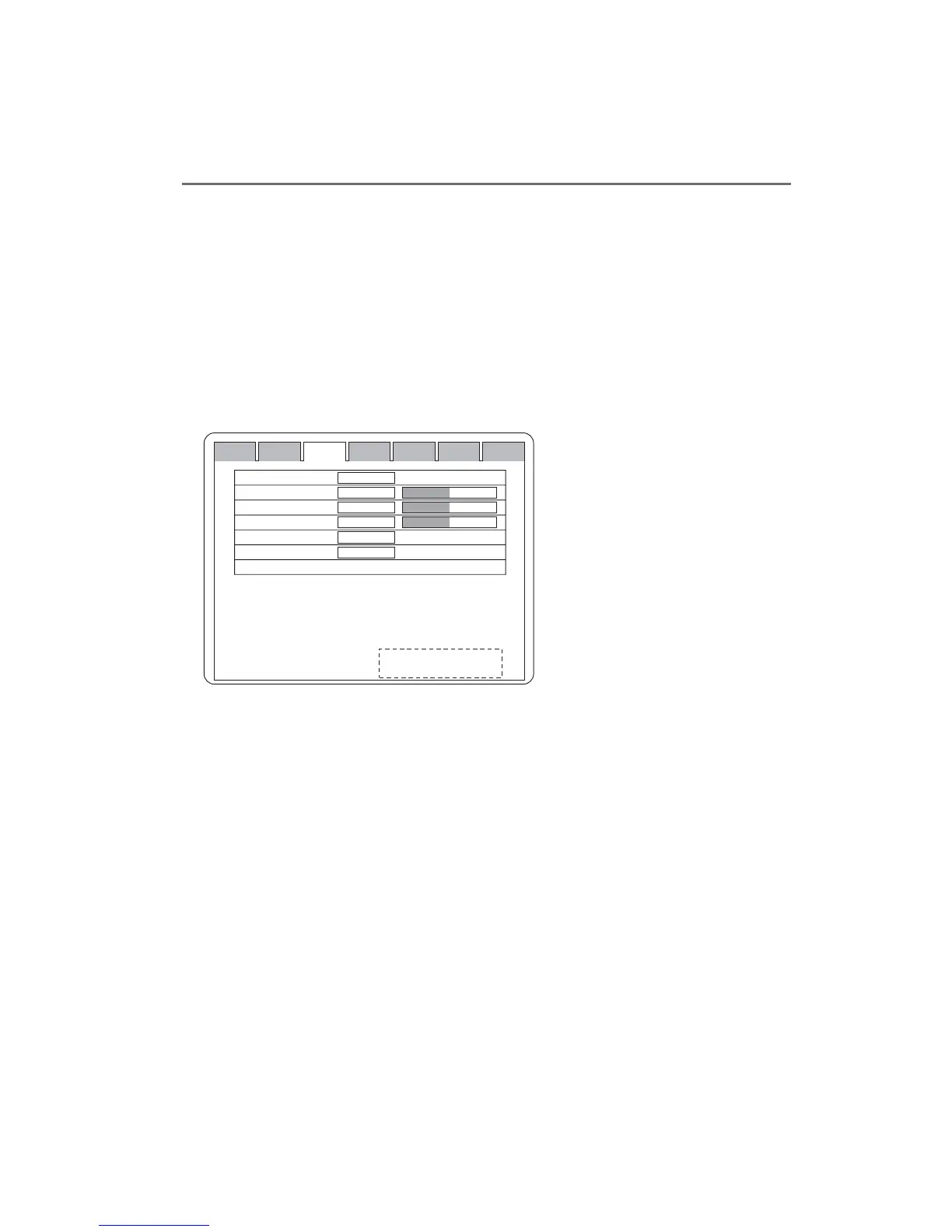

Screen display
䂾
Over Scan
H.Position
V.Position
Clock
Phase
AUTO
UNDO
OFF/10%/20%
-200 - +200
-200 - +200
0 - 100
Auto/1-48
Cancel/ADJ
OFF
0
0
50
Auto
Cancel
Status User Display Image Color Memory P-Pre
Switch behavior description
IN1: CH name - Signal name
IN2: CH name - Signal name
Display setting screen description (sub)
• Over Scan: Used to select the display size with an overscan of 10% or 20%.
• H/V. Position: Used to adjust the horizontal and vertical positions onscreen.
Move toward the plus side to shift the screen to top right.
Move toward the minus side to shift the screen to bottom left.
• H/V. Size: Used to adjust the horizontal and vertical sizes onscreen.
Move toward the plus side to enlarge the screen.
Move toward the minus side to reduce the screen.
• Clock: Used to adjust the number of sampled dots with analog signals other
than VIDEO/S-VIDEO and DVI signals.
Increase the setting to get the sampling frequency higher. Decrease
it to get the sampling frequency lower.
Make this adjustment if vertical stripes or noises occur.
• Phase: Used to adjust the sampling point for analog signals other than
VIDEO/S-VIDEO and DVI signals.
Make this adjustment if the rising edge of characters and the like
look blurry or if fine patterns suffer from noises.
• AUTO: Automatically adjusts the display position and the size, the number
of sampled dots, and the sampling point, depending on the input
signal.
