5.11 P-Pre Select Screen
This is a function used for making the double-screen setting. It is necessary that Input
Control setting should be made on the Memory Select Screen in advance as described under
section 5.10.

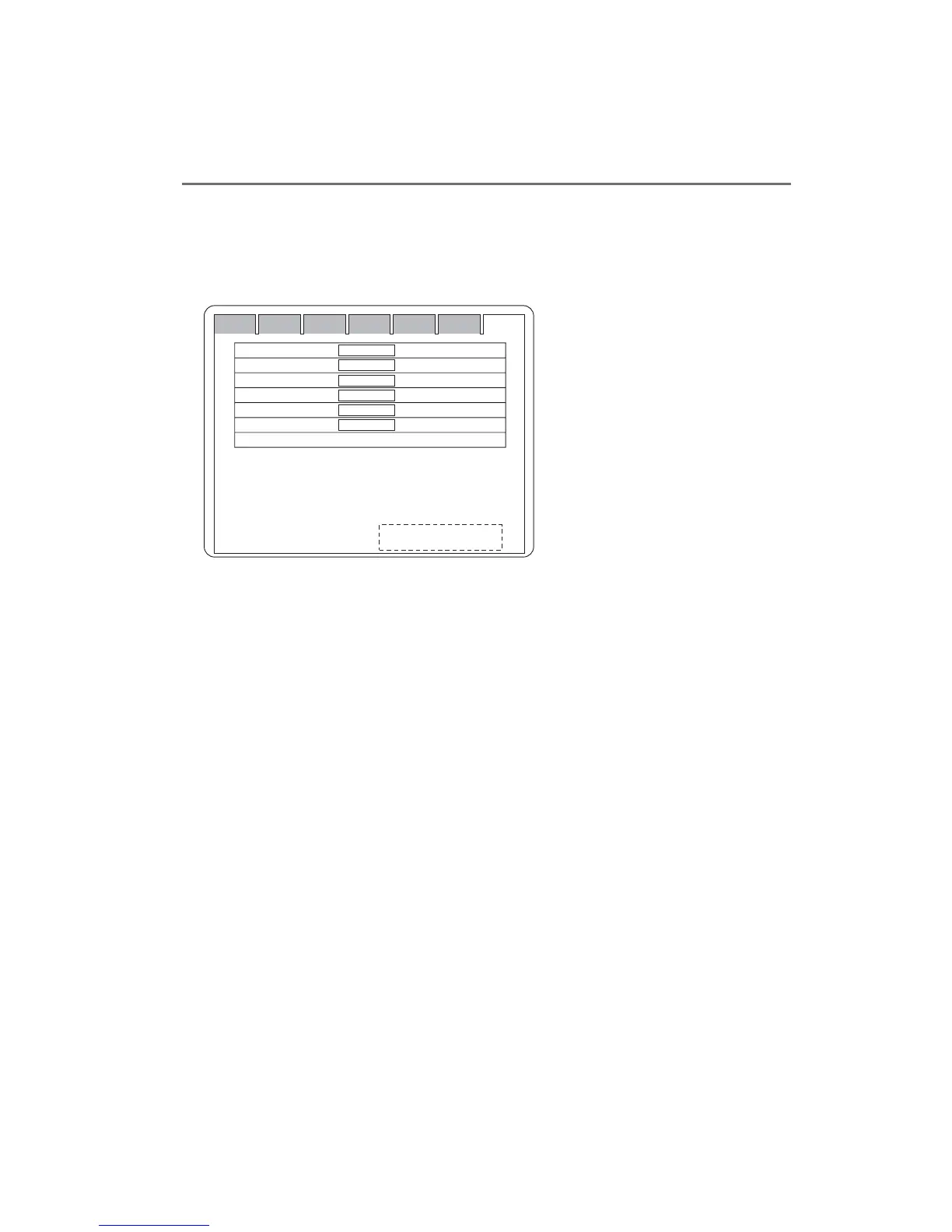

Display screen
䂾
Preset No.
Active
IN1 Select
IN2 Select
PinP Select
PinP Position
UNDO
1/2/3/4
OFF/ON
-/Video/S-Video/COMP/PC/DVI/SDI/OP-PC/OP-DVI/OP-SDI
-/Video/S-Video/COMP/PC/DVI/SDI/OP-PC/OP-DVI/OP-SDI
PinP1/PinP2/SBS1/SBS2
1/2/3/4
1
OFF
VIDEO
-
PinP1
1
Status User Display Image Color Memory P-Pre
Switch behavior description
IN1: CH name - Signal name
IN2: CH name - Signal name
P-Pre select screen description
• Preset No: Used to specify the Preset Number for double-screen setting. Four
different types are available for setting.
• Active: Specifies a Preset Number to be Active or Inactive.
If it is set to OFF, the double-screen display of that Preset Number
is deactivated.
• IN1 Select: Specifies the input to be displayed on the Main screen.
The items that can be selected are those are selected for IN1 on
Memory Select Screen - Input Control (indicated by “
䂾
” symbol) as
described under section 5.10.
If “
䋭
”symbol is displayed, there is no selectable input available.
• IN2 Select: Specifies the input to be displayed on the Sub screen.
The items that can be selected are those are selected for IN2 on
Memory Select Screen - Input Control (indicated by “
䂾
” symbol) as
described under section 5.10.
If “
䋭
”symbol is displayed, there is no selectable input available.
• PinP Select: Used to set the double-screen display state:
PinP1: Smaller Sub screen display
PinP2: Larger Sub screen display
SBS1: Reduced full-size display
SBS2: Dot-by-dot display
• PinP Position: Used to set the Sub screen display positions for PINP1/PINP2.
1: Upper left position of the screen
2: Upper right position of the screen
3: Lower left position of the screen
4: Lower right position of the screen
5. Operation
To Next Page
