User’s Manual REVEXplus, REVEXplus USB
Copyright © 2006–2019 ILLKO, s.r.o.
22
2
Connect optional accessories – either current
clamp or three-phase adapter.
Appliance connecting
3
Switch on tested appliance’s mains switch and
put it into operation.
4
START
Measurement

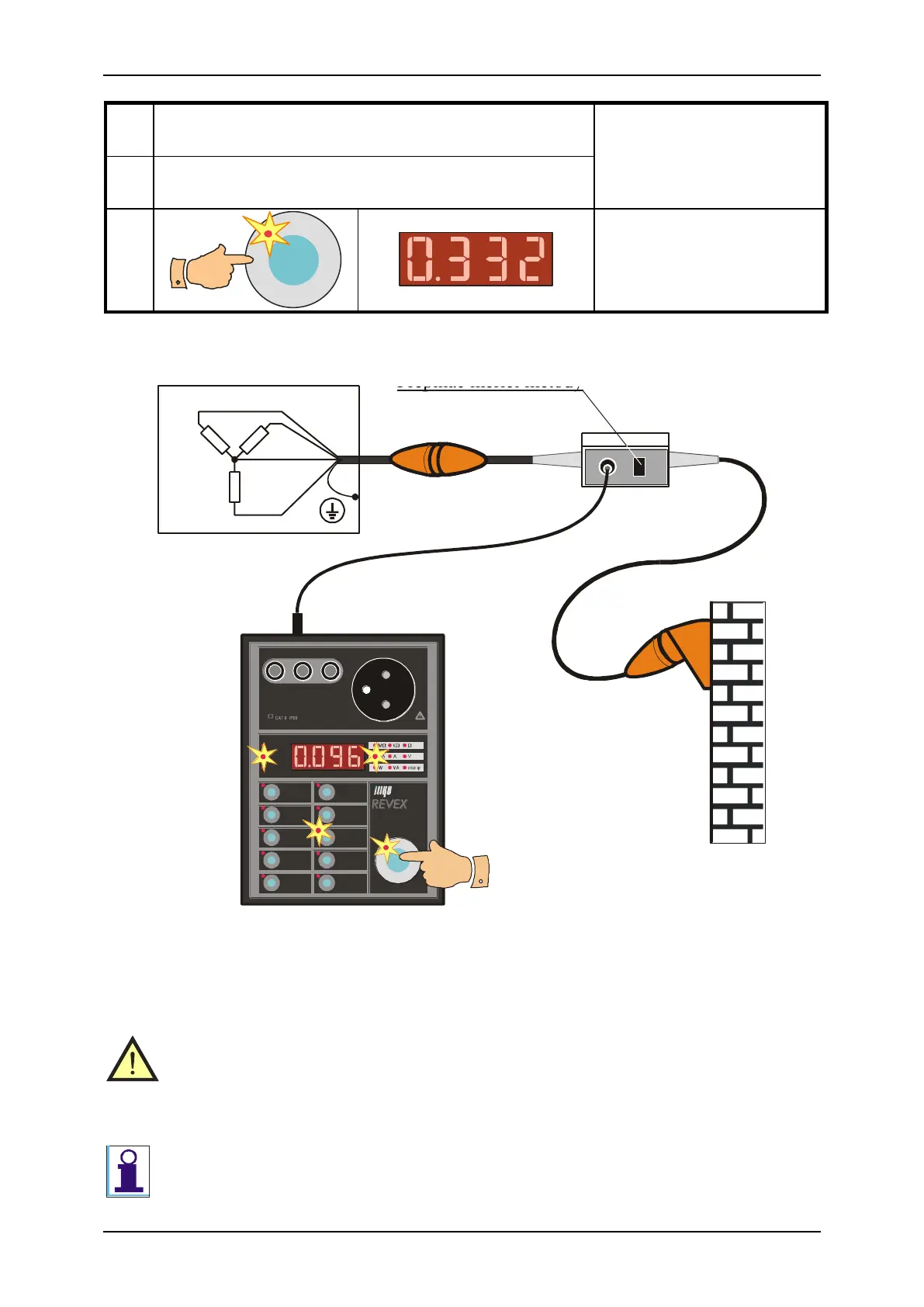

Fig. 10 – Leakage current measurement by means of optional accessories
EXT
INPUT
Přepínač měřicí metody
P,S
EXT
RR
PE R
I
I
I
I
I
Ca l
LO CK
HOLD
ISOPE
PE
SUB
PROTECT
PE
D
D
U,I

EXT
INV
START
Fig. 9 – Three-phase adapter connection
4.6. Touch leakage current - I
D

Touch leakage current measurements are performed with the same measuring
methods like leakage current measurements.
Thus all safety and working warnings and instructions stated for leakage current
measurements are valid for touch leakage current measurements, too!
Touch leakage current can be measured by methods described in chapters 4.4. and 4.5.
The measurement of substitute touch leakage current is described in chapter 4.4.2.
Measuring method
switch
