4.7.1. Mains voltage measurement
• Press the U, I key and release it repetitively in order to select voltage measurement
function U. The (V) indicator has to light up.
• Press the START key and release it. Measurement is indicated by the (START)
indicator.
• After finishing of measurement (the (START) indicator turns off) the last measured
value of mains voltage is displayed.
1
U,I
M
mA
cos 
A V
VA
W
K
  
Function selection
2
START
Measurement

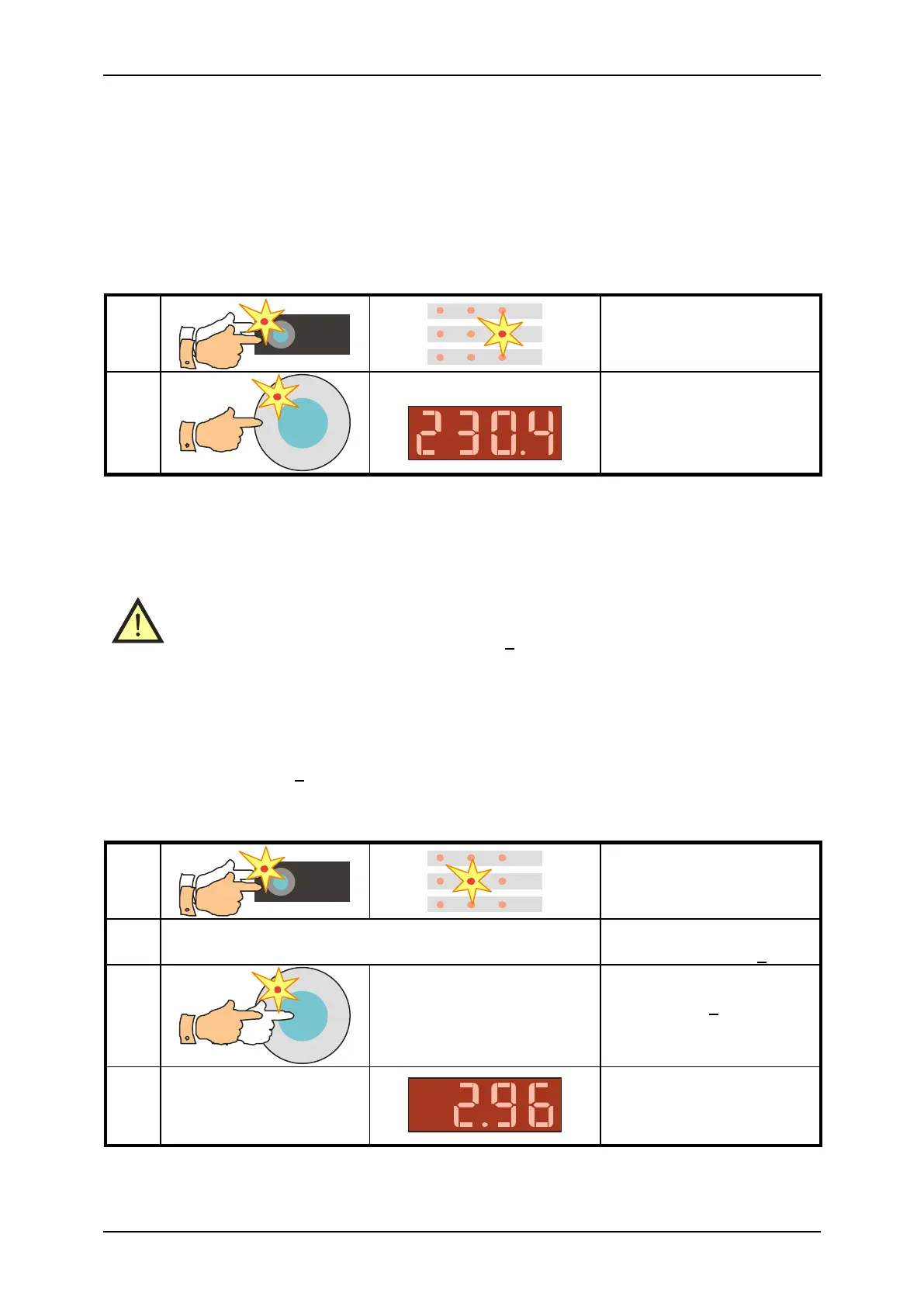

Fig. 13 – Mains voltage measurement
4.7.2. Current consumption measurement
WARNING - DANGER!
• If test voltage is present in Test socket 1 – it is indicated by the (START)
indicator, then tested equipment starts to run after its mains switch is
switched on! Take into consideration all safety warnings, referred to
equipment under test!
• Do not touch exposed conductive parts of tested object after mains switch is
switched on!
• Test Socket 1 of the REVEXplus must not be used for continuous power
supply of appliance! It is intended for test purposes only; max. test duration
is 60 s @ 16A.
1
U,I
M
mA
cos 
A V
VA
W
K
  
Function selection
2
Connect tested appliance
Connect tested appliance
to test socket 1
3
START
Test socket 1 energizing
4
Switch on mains
switch of tested
appliance
Measurement
Fig. 14 – Current consumption measurement
