Image DE100 - Page 58

Section 8 Page 5
Item Part No. Qty.
1
A0-A027-004 1 Burner gas
2
A0-E016-013 1 Thermostat
A2-SDE1-028 1 Cabinet Sail Switch Complete Shell
A0-E014-014 1 Micro switch
4
A2-S120-036 1 Pipe, Gas inlet
5
A0-A009-013 1 Nipple 3/4"
A0-E019-011 1 Spark probe
A0-E019-012 1 Wire, Suppression
7
A0-A089-009 3 Gas burner tube (SUS)
A2-SDE1-169 1 Monifold,Gas 3/4", 3 Hole(LPG )
A2-SDE1-170 1 Monifold,Gas 1 " ,3 Hole (NG)
A0-A105-023 3 Nozzles gas LP Gas brass ¼” Hole 3mm.
A0-A105-024 3 Nozzles gas NGas brass ¼” Hole 4mm.
10
A0-E018-010 1 Pressure regulator (LPG)
A0-E018-009-1 1 Gas valve 3/4" (LP Gas)
A0-E018-003 1 Gas valve 1" (Natural Gas)
12
A0-A105-029 1 Plugs Brass Hexagon
3
6
9
11
8

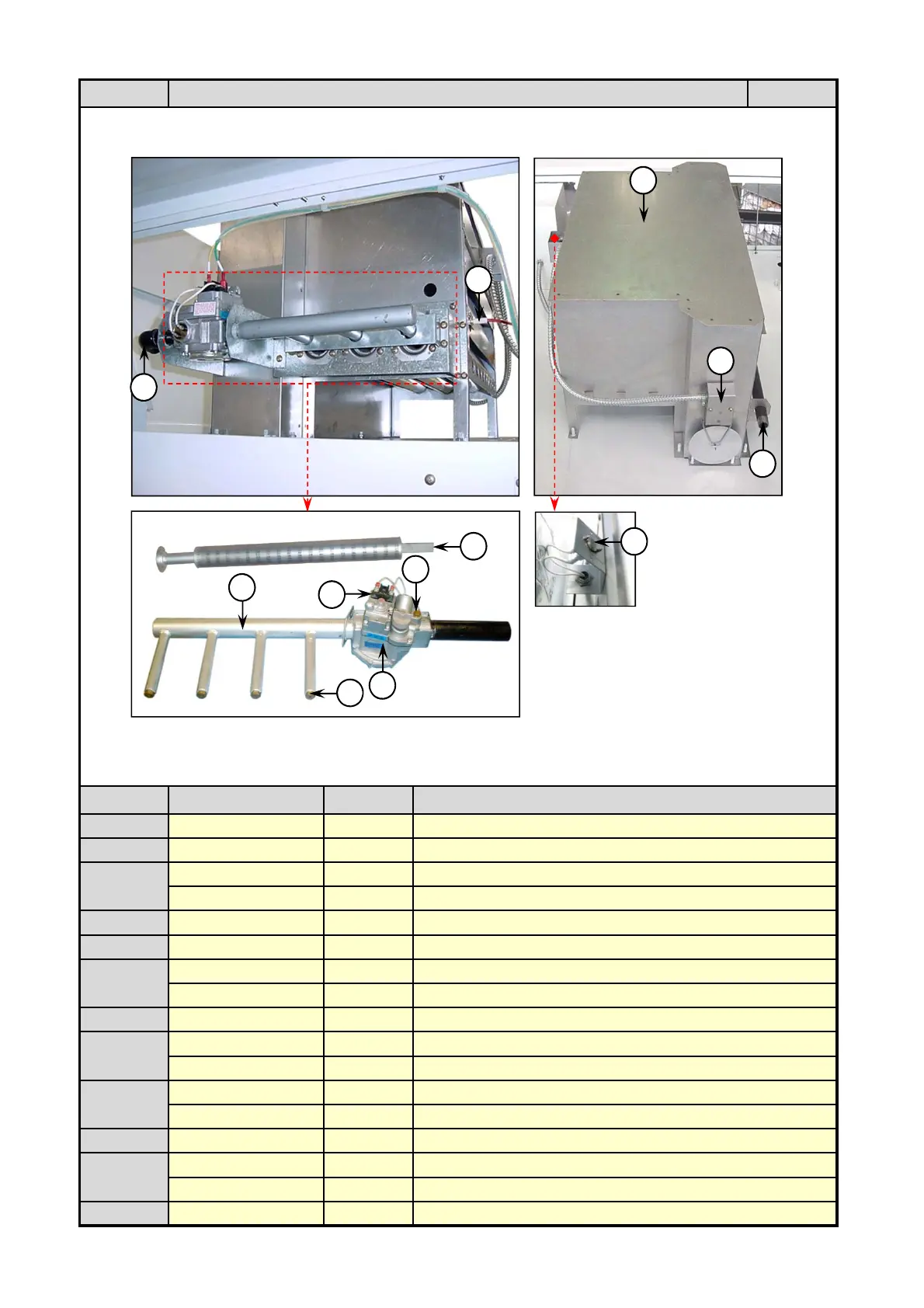

Top Side: Heating - Gas Burner Unit
Description
2
9
4
1
3
8
6
10
12
5
7
11
